Custom MC4 Jumper Cable, 10 AWG Bare Copper PV Wire | US-Made Cable, 1500 V DC, UL 4703, 5–200 ft | 4904-CUSTOM
Shipping calculated at checkout
SKU: 4904-005-R
In stock
Open here

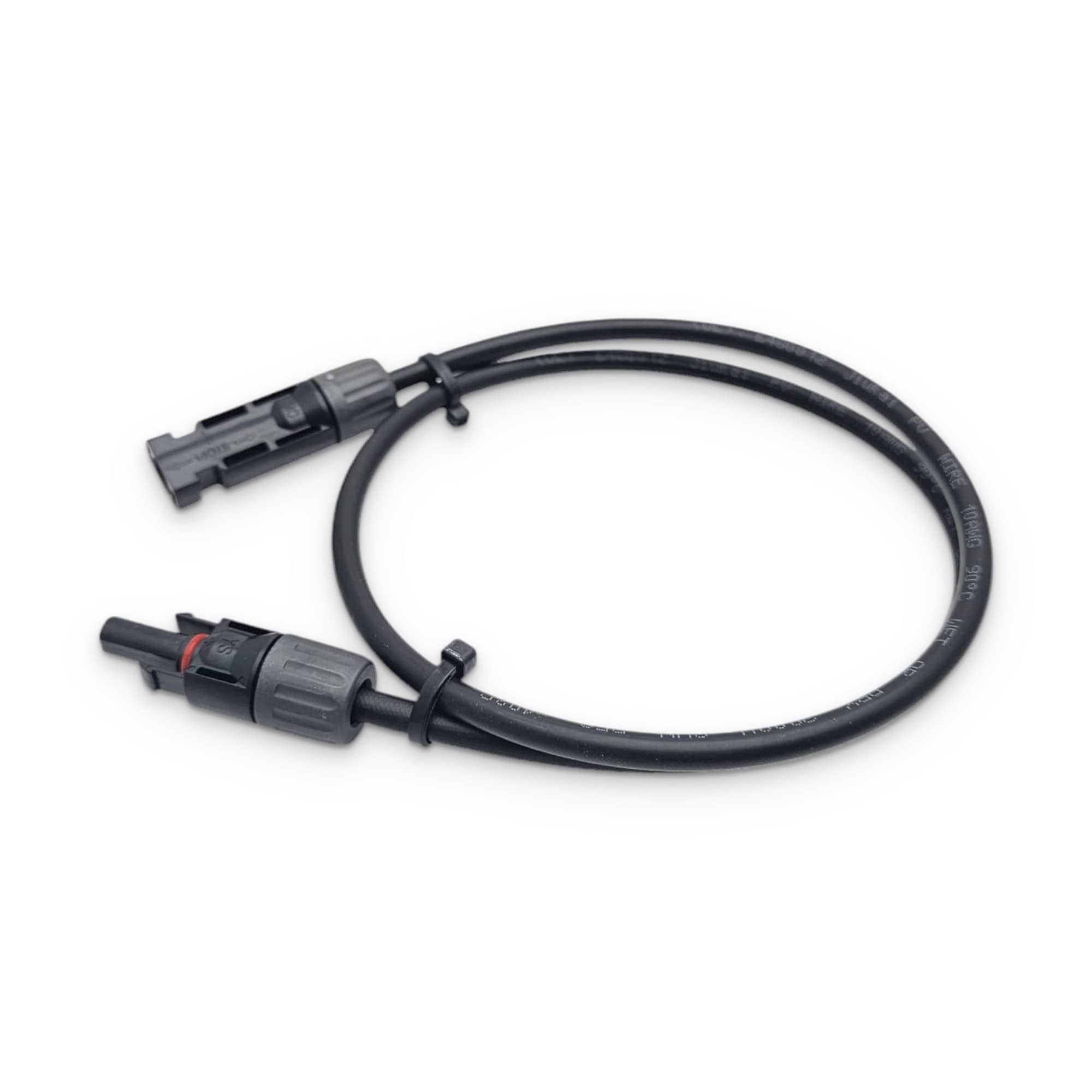

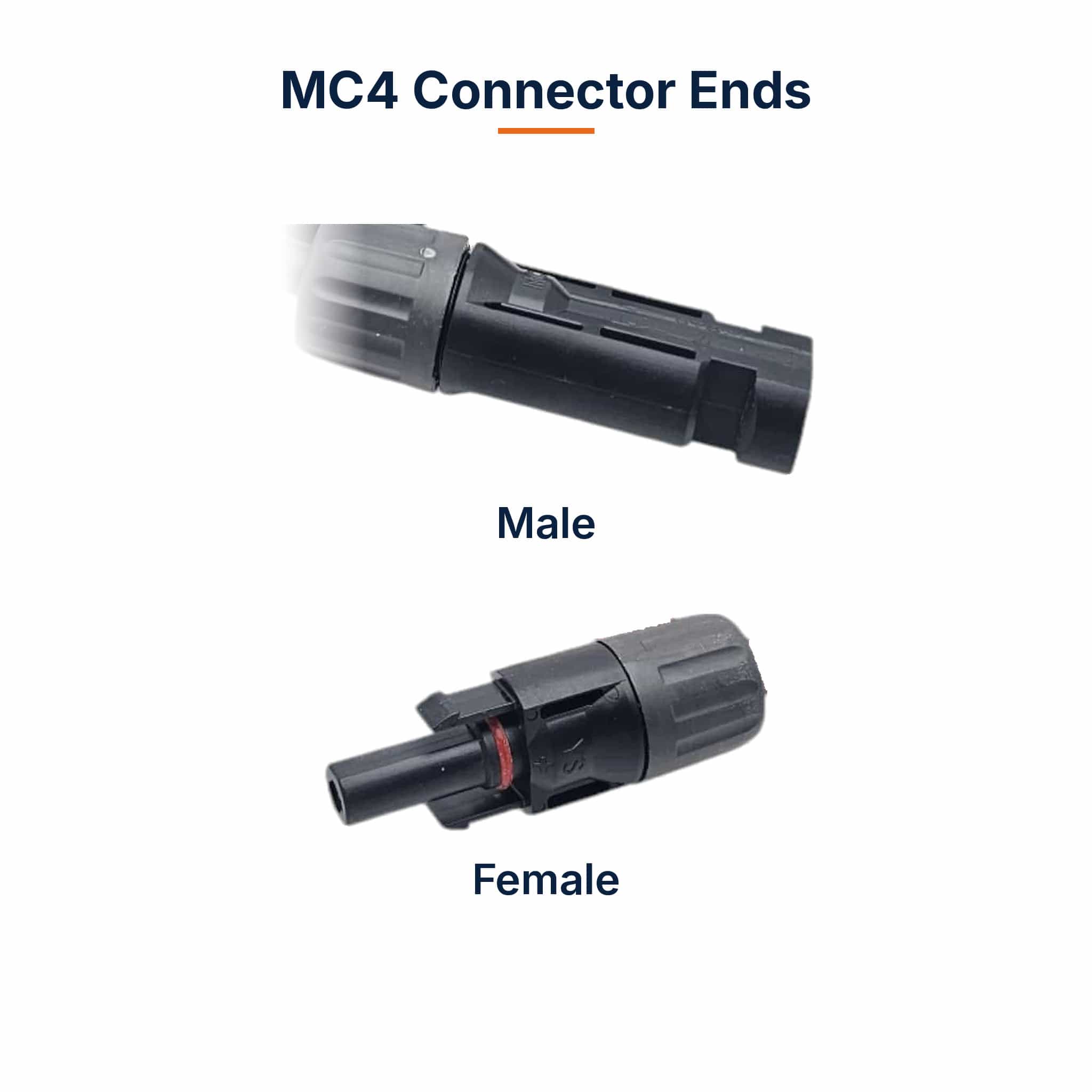

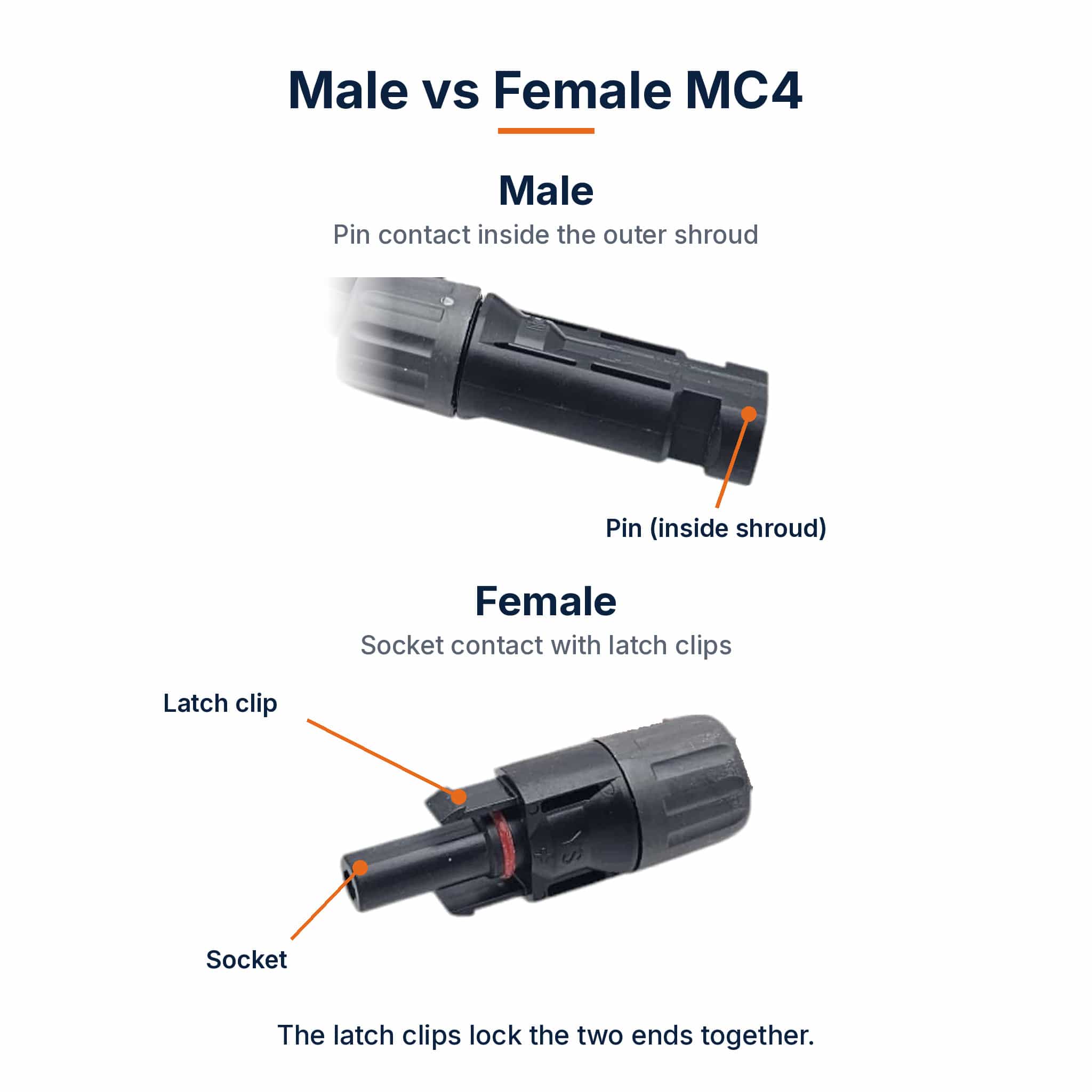

Made-to-length MC4 jumpers and home runs built on US-made 10 AWG PV wire with a 100% bare copper conductor and assembled in the USA. Male MC4 on one end, female on the other, so the jumper drops in between a module lead and a combiner, disconnect, rapid shutdown device or inverter. Pick the length, jacket color and connector; every jumper is cut, crimped and pull-tested to order in the USA, with same-day shipping on orders placed before 2 PM PT.
Choose your MC4 connector
Every jumper is offered with either connector. Pick it in the MC4 Connector option above.
| Option | Best for | Price |
|---|---|---|
| Conversions Tech MC4 | Most installs, replacement jumpers and extensions that mate to other Conversions Tech connectors. 1500 V DC, 30 A, IP67. | Base price |
| Stäubli MC4 (original MC4) | Modules, combiners and inverters factory fitted with Stäubli MC4, and projects where the spec, the engineer of record or the module warranty calls for a same-manufacturer mated pair. 1500 V DC, 30 A. | +$3.50 per jumper |
MC4-style connectors from different makers are not automatically intermateable, so match the connector to what the jumper plugs into. See the connector compatibility guide. Crimping your own? We also sell 10 AWG, 12 AWG and 8 AWG PV wire on 500 and 1000 ft spools, and the Stäubli MC4 connector pair on its own.
Why bare copper
The conductor is solid copper all the way through, not copper-clad aluminum, and the cable is drawn and jacketed in the United States. That means full 10 AWG ampacity, predictable voltage drop over long home runs, and a traceable domestic wire source for projects where purchasing or the engineer of record asks where the conductor came from.
Specifications
| Item | Value |
|---|---|
| Conductor | 10 AWG (6 mm²) stranded, 100% bare copper |
| Cable origin | Manufactured in the USA |
| Assembly | Assembled in the USA |
| Cable listing | UL 4703 PV wire, USE-2, RHH/RHW-2, 2000 V, XLPE insulation, sunlight resistant, direct burial rated |
| Assembly rating | 1500 V DC, 30 A (limited by connector) |
| Conductor resistance | 1.24 Ω per 1,000 ft (NEC Ch. 9 Table 8, uncoated stranded) |
| Connectors | Your choice of Conversions Tech MC4 or Stäubli MC4, IP67, 1500 V DC, 30 A, male one end / female other end |
| Termination | Hydraulic crimped and pull-tested, both ends |

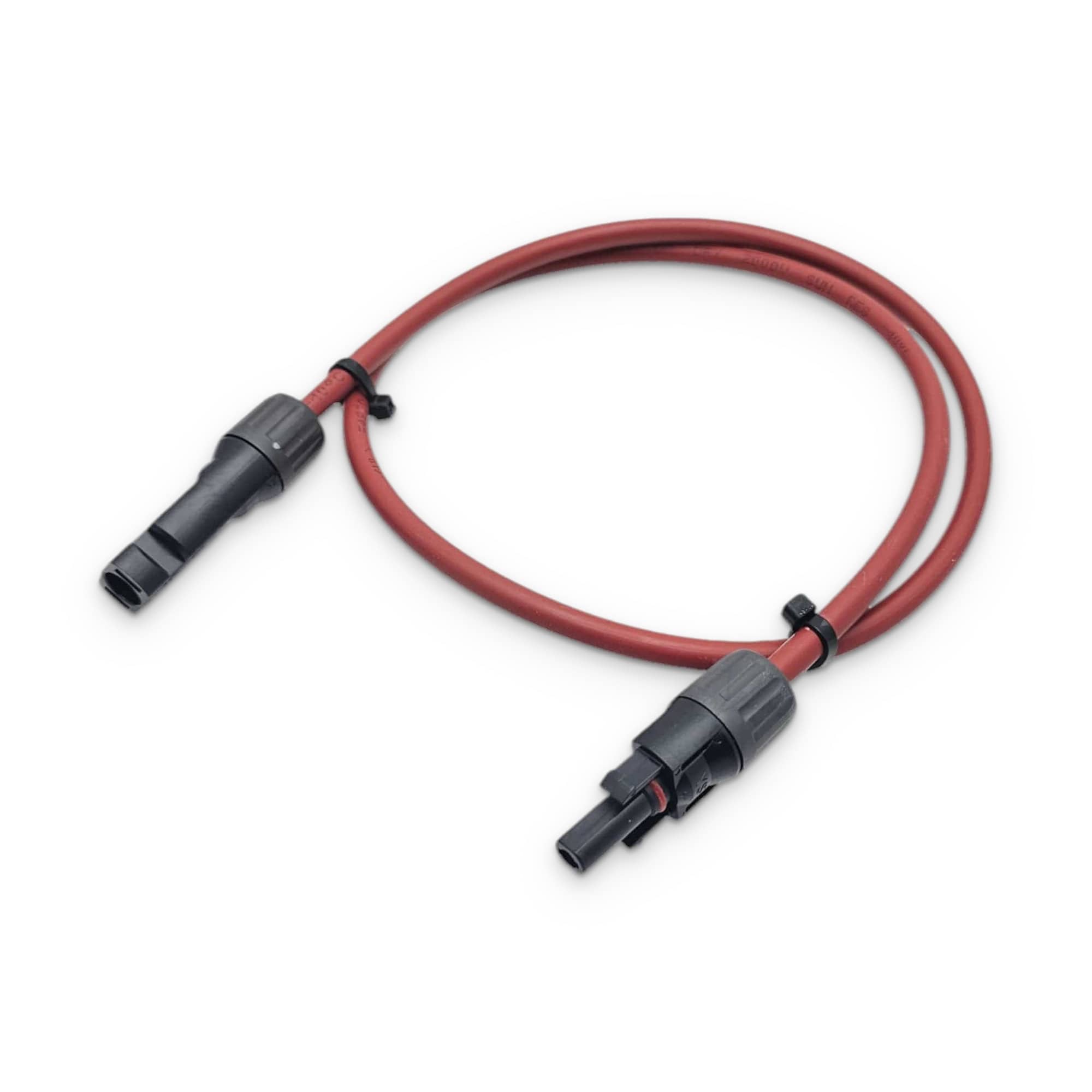

| Colors | Red (positive), Black (negative) |

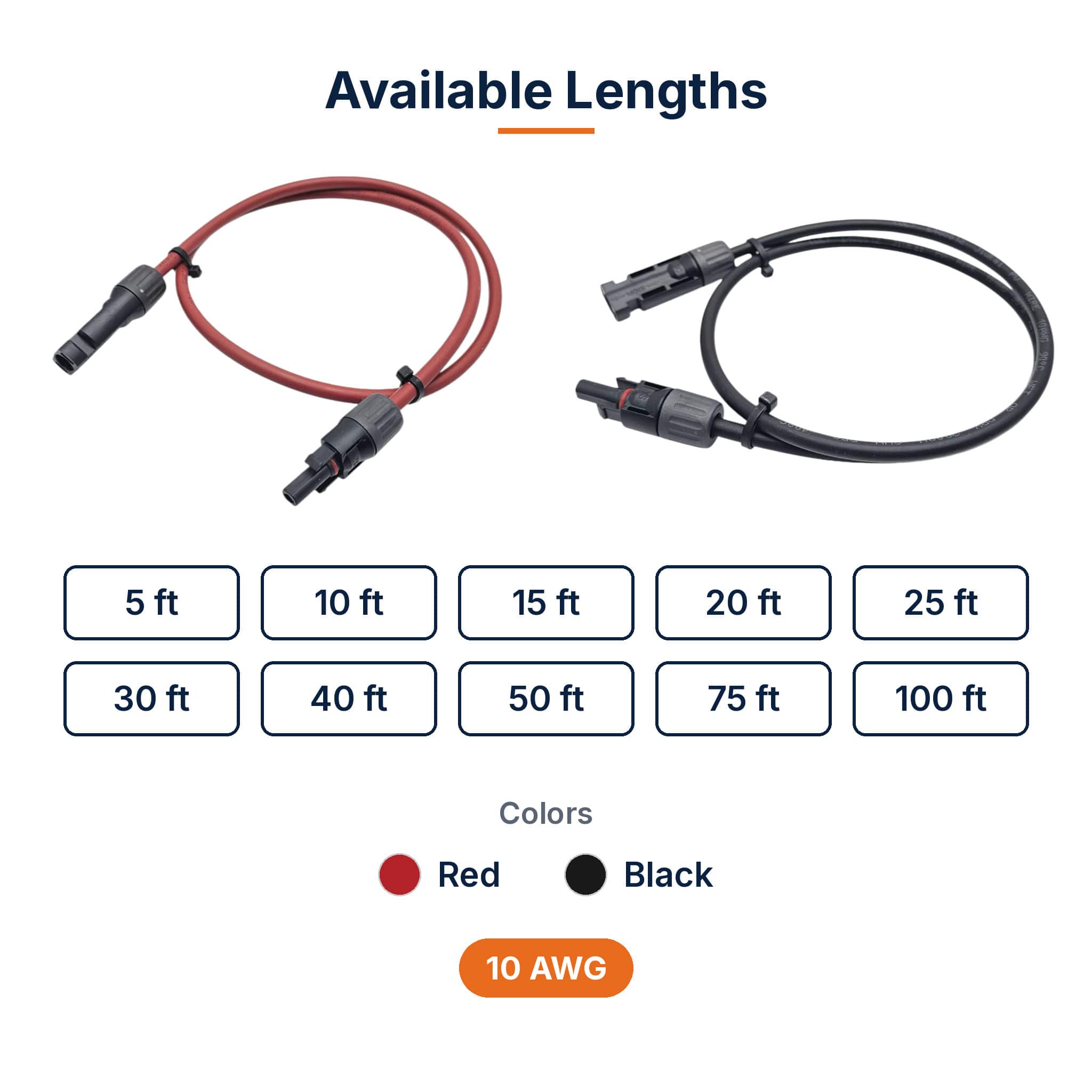

| Stock lengths | 5, 10, 15, 20, 25, 30, 40, 50, 75, 100, 150, 200 ft |
Sizing a home run
Order one red and one black per string. Voltage drop on a 10 AWG run is roughly (2 × one-way length in ft × string current × 1.24) ÷ 1,000. Example: a 100 ft home run carrying 12 A drops about 3 V, under 1% on a 400 V string. Use the string size calculator to check your array.
Custom builds and volume
- Any length not listed, cut to the foot
- Bare-wire, ring-terminal or fused MC4 ends
- Case quantities and kitted pairs for EPCs, installers and OEMs, with PO and net terms on approved trade accounts
Send lengths and quantities to the engineering desk at 307-206-0534 or through the trade application. Building a solar farm? See how to spec and order custom jumpers and home runs.
