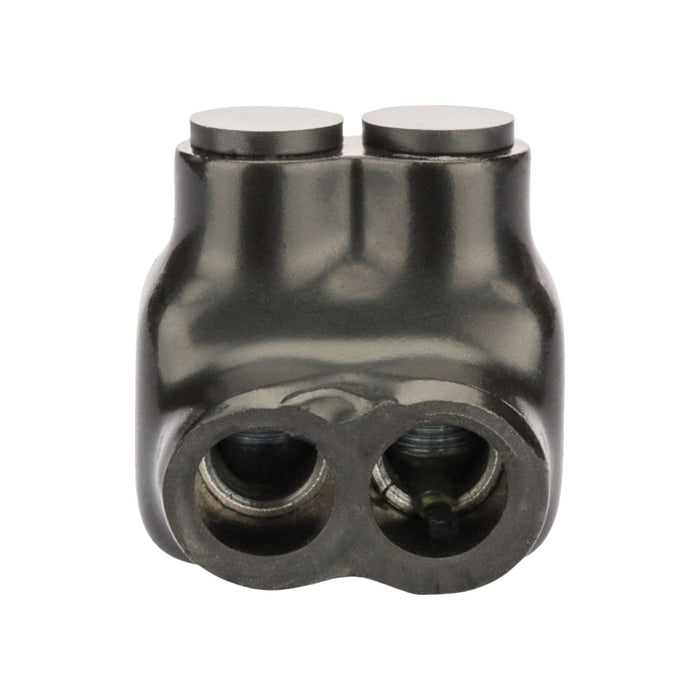

Insulated Tap Connectors 2 port single-side Entry 14 AWG - 1/0 AWG
Shipping calculated at checkout
SKU: 610-30020114
56 in stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here
Insulated Tap Connectors form secure connections between conductors with a rounded design and UV-resistant insulation. Key features include:
Key Features
- Secure Connections: Utilizes adjustable set screws and rounded body for high-pressure, low-resistance connections.
- Single-Side Wire Entry: Quickly connects 2 conductors (1/0-14 AWG), compliant with NEC article 230.46.
- NEC 230.46 Compliance: Meets NEC requirements for line side connections on service equipment.
- Ergonomic Design: Rounded body and smooth plastisol insulation for comfortable gripping during installation.
- Removable Plugs: Each port and set screw includes a removable plug to prevent debris and moisture ingress.
- Pre-Filled Oxide Inhibitor: Gel-filled ports inhibit corrosion, ensuring stable electrical resistance over time.
- Professional Performance: Durable plastisol insulation resists UV radiation, abrasion, and chemicals for reliability.
Key Technical Specifications
Wire Gauge Range: 1/0 AWG to 14 AWG
Connection Type: Set Screw
Insulation Material: UV-resistant Plastisol
Features: Single-Sided Entry, Removable Plugs, Pre-Filled Oxide Inhibitor
Voltage Rating: 600 V
Material: Aluminum
Finish: Plastisol Insulated (UV resistant)
Certifications: cULus, Meets NEC 230.46 Suitable for Line Side of Service
UL Standard: UL 486A/B
Conductor Max Amps: Aluminum: 100 A, Copper: 130 A
Temperature Rating: 90°C, AL9CU
Conductor Count: 2
Applications
- Residential electrical installations
- Commercial building wiring systems
- Industrial machinery and equipment electrical systems
- Power distribution networks
- HVAC systems
- Infrastructure and utility projects
- Electrical systems in automotive and marine environments
- Machinery and equipment wiring across various industries
Explore our insulated tap connectors designed for reliable, compliant electrical connections across various industries.
