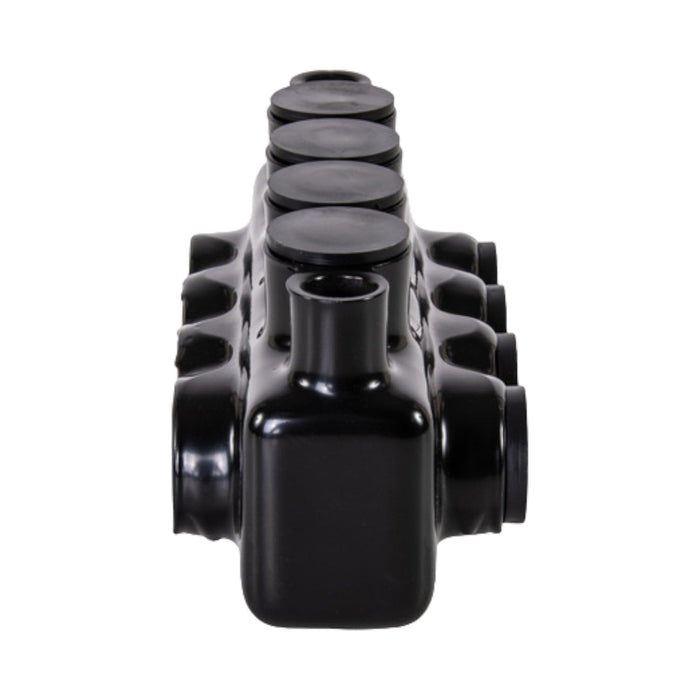

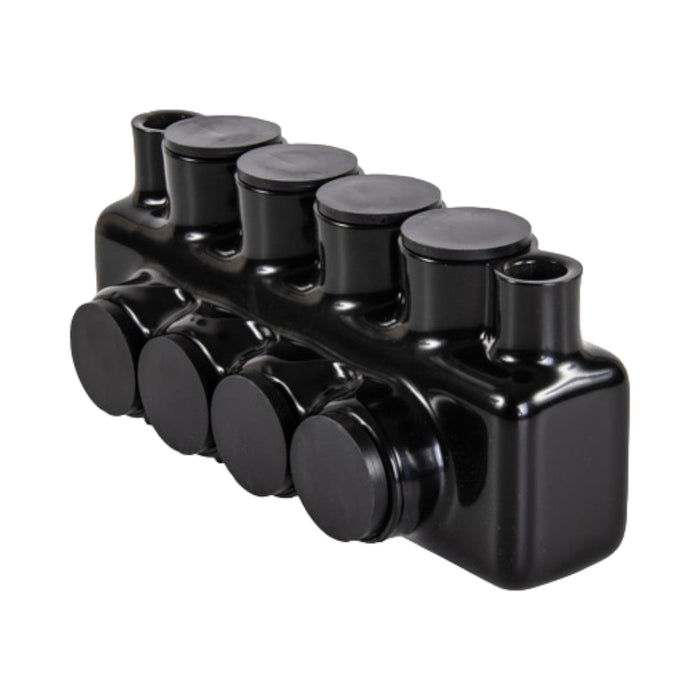

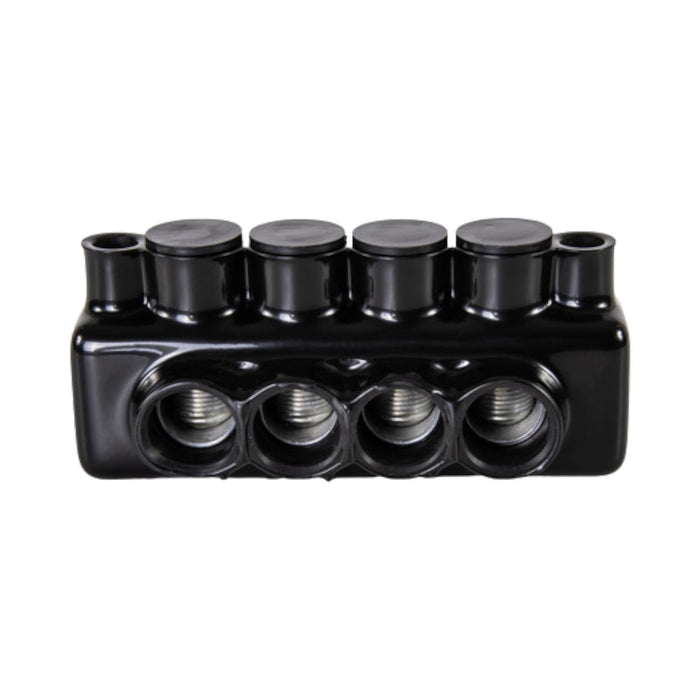

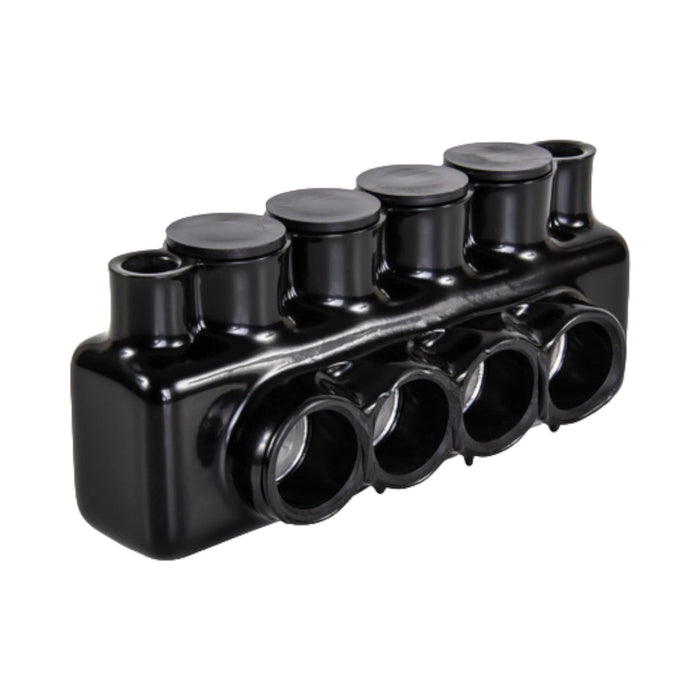

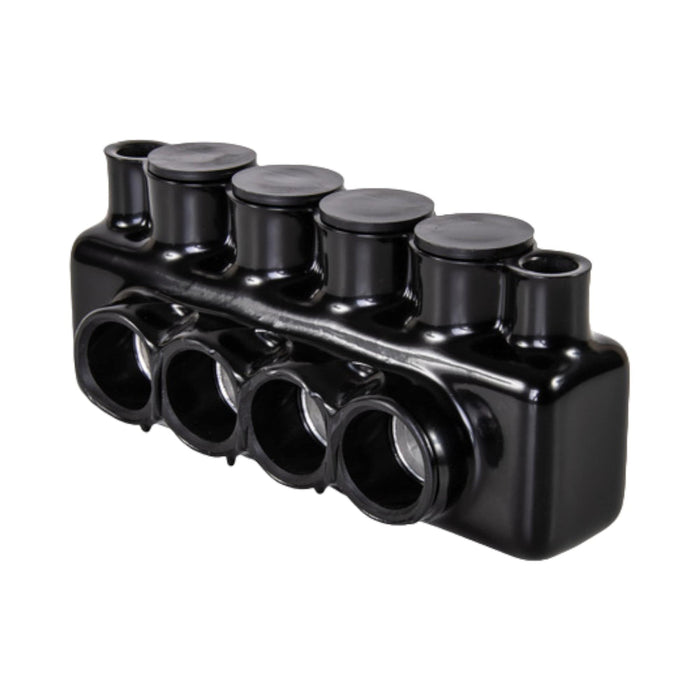

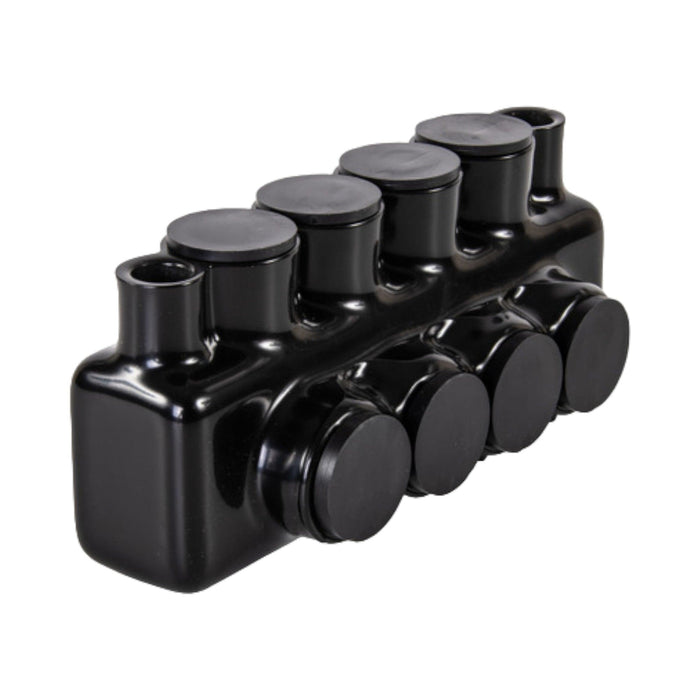

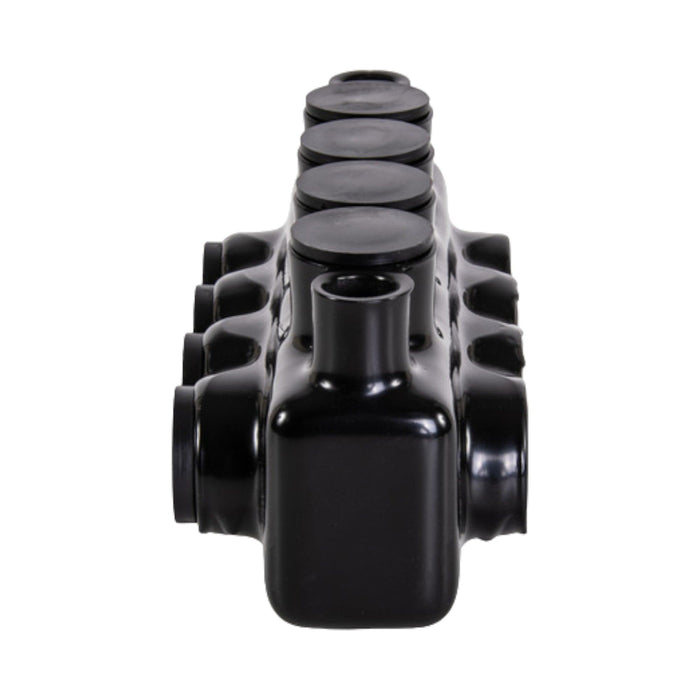

Insulated Tap Connectors 4 port Dual-side Entry 1/0 AWG - 750 MCM
Shipping calculated at checkout
SKU: 610-1004750
1000 in stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here
Insulated Tap Connector — 4-Port Dual-Sided Entry | 1/0 AWG – 750 MCM | 600V | cULus Listed | Conversions Tech
The Conversions Tech Insulated Tap Connector (4-Port Dual-Sided Entry) series is engineered for high-capacity electrical distribution, enabling secure and long-lasting connections between multiple conductors in demanding environments. Each connector supports wire sizes ranging from 1/0 AWG to 750 MCM, ensuring maximum versatility for heavy-duty residential, commercial, and industrial applications. With its rugged aluminum construction and UV-resistant plastisol insulation, this connector provides superior corrosion protection, electrical reliability, and ease of installation.
Designed with precision-machined conductor ports and adjustable set screws, the connector achieves consistent torque and low-resistance contact integrity. It is ideal for power distribution panels, service equipment, and high-amperage connections where mechanical strength and electrical continuity are critical.
Key Technical Specifications
| Connector Type | Insulated Tap Connector — 4-Port Dual-Sided Entry |
| Wire Size Range | 1/0 AWG – 750 MCM (Copper or Aluminum Conductors) |
| Ports | 4 Ports (Dual-Sided Entry Configuration) |
| Voltage Rating | 600 V |
| Material | High-Strength Aluminum Alloy Body |
| Insulation | UV-Resistant Plastisol Coating |
| Connection Method | Set Screw Type with Removable Port Plugs |
| Temperature Rating | 90°C (AL9CU) |
| Certifications | cULus Listed • Meets NEC 230.46 • UL 486A/B • AL9CU Rated |
| Environmental Rating | Cold Temperature Rated to -45°C |
| Application Range | Residential, Commercial, Industrial Power Distribution |
| Origin | USA *Stock product may be sourced elsewhere. |
Key Features
- High-Current Design: Supports large conductor sizes up to 750 MCM for heavy-load applications.
- Dual-Sided Entry Configuration: Four ports provide flexibility in branching and parallel connections.
- Exceptional Durability: Aluminum alloy body and plastisol insulation ensure long-term corrosion and UV resistance.
- Reliable Conductor Retention: Precision-machined set screws deliver strong, vibration-resistant connections.
- Compliant & Safe: Meets NEC 230.46 and UL 486A/B standards for line-side service connections.
- Versatile Installations: Designed for use in enclosures, switchgear, junction boxes, and service panels.
- Maintenance-Friendly: Removable plugs simplify access during installation and inspection.
Applications
- Residential electrical distribution and grounding
- Commercial building wiring and service panels
- Industrial machinery and automation systems
- Power distribution and control networks
- HVAC and renewable energy systems
- Utility and infrastructure projects
- Marine, transportation, and automotive electrical systems
Frequently Asked Questions (FAQs)
1. What wire sizes are supported?
This connector accommodates wire sizes from 1/0 AWG to 750 MCM for both copper and aluminum conductors.
2. How many ports does this model have?
It features four total conductor ports with dual-side entry for maximum layout flexibility.
3. What is the voltage rating?
The connector is rated for 600 V and tested to UL 486A/B standards.
4. Can it be used for line-side service equipment?
Yes, it meets NEC Article 230.46 compliance for line-side connections.
5. What environmental protection does it offer?
The UV-resistant plastisol insulation provides protection against moisture, abrasion, and extreme temperatures down to -45°C.
