LR Threaded Rigid Conduit Body ½ in | Aluminum, Set Screw + NPS Hubs
Shipping calculated at checkout
SKU: 675-30031
500 in stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here

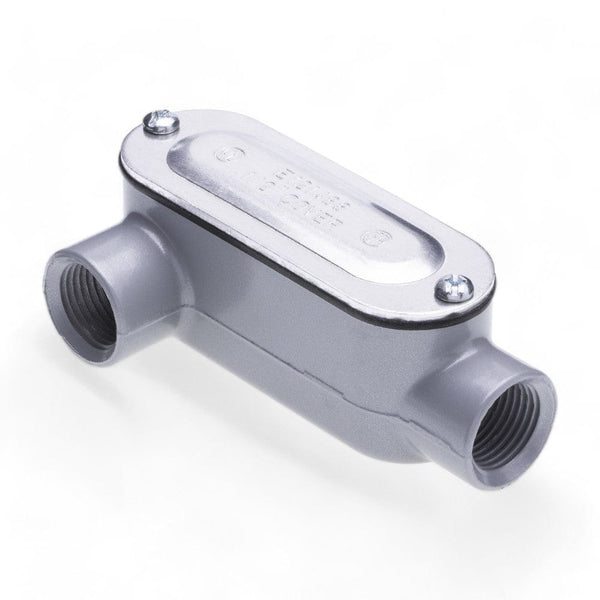

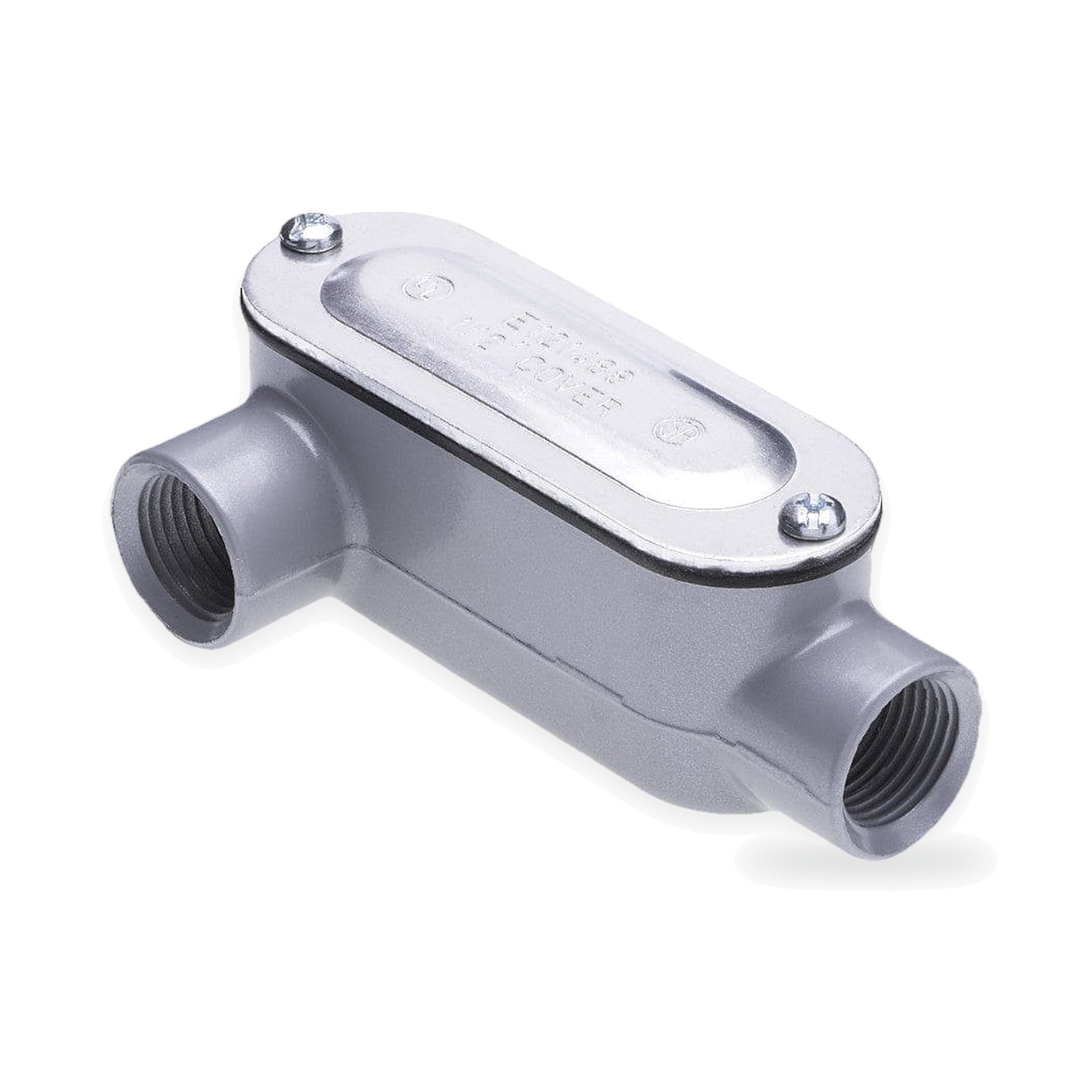

The LR Series ½ in threaded rigid conduit body (RCB) is a die-cast aluminum enclosure designed for rigid metal conduit (RMC) or intermediate metal conduit (IMC) systems. It provides access for wire pulling, splicing, and inspection, plus conduit transitions and directional changes. The LR form factor includes one end hub for terminating conduit runs and future maintenance access.
Specifications
- Nominal size: ½ in
- Hub configuration: Set screw hub for EMT; National Pipe Straight (NPS) tapered hubs for RMC/IMC
- Body and cover material: Aluminum
- Gasket: Neoprene, integrated
- Finish: Powder-coated
- Environmental rating: Wet locations, cement installations
- Listing: UL Listed
Cross-Reference
Equivalent to Crouse-Hinds and Appleton Form LR fittings. Provides the same conduit transition and access functionality at lower cost.
FAQ
What conduit types does the LR Series accept?
The set screw hub connects to EMT conduit. The NPS tapered hubs connect to RMC or IMC conduit with NPT-standard threads.
Is this suitable for outdoor or wet location use?
Yes. The LR Series is rated for wet locations and cement installations. The neoprene gasket provides a weatherproof seal around the enclosure perimeter.
What is the difference between LR and LB conduit bodies?
Both are access fittings with similar hub arrangements. The LR type specifically features an end hub configuration for terminating conduit runs, while LB bodies typically provide a 90-degree directional change with back access.
