Long Barrel Compression Lug 2/0 AWG 5/16" Stud | 35kV 265A Tin-Plated
Shipping calculated at checkout
SKU: 210-98071A
801 in stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here

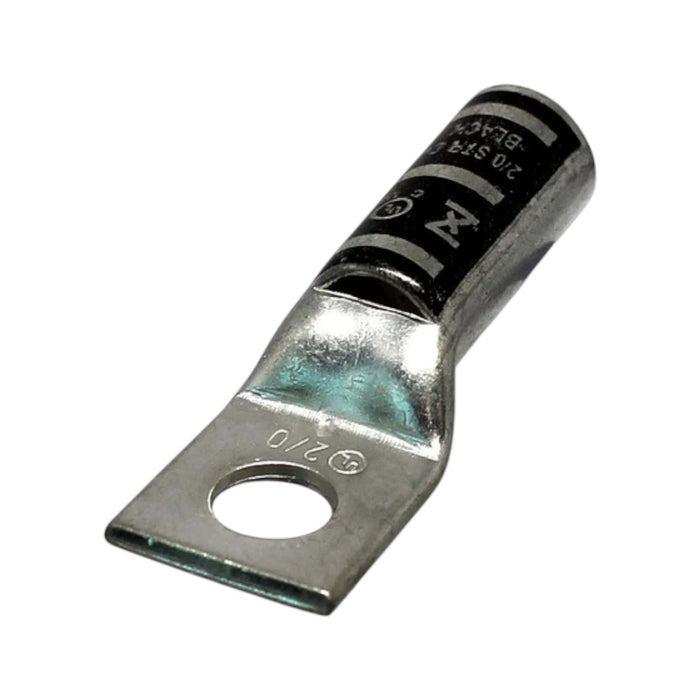

Long barrel compression lug for 2/0 AWG copper conductor termination. One-hole design with 5/16-inch bolt size for power distribution panels, switchgear, industrial machinery, and renewable energy installations. Electro-tin-plated copper construction provides conductivity and corrosion resistance. Chamfered barrel entry facilitates wire insertion. Black color code for conductor size identification.
Specifications
- Wire Size: 2/0 AWG
- Stud/Bolt Size: 5/16"
- Barrel Length: 1.5 inches (long barrel)
- Overall Length (L): 55.9mm (2.2")
- Barrel Length (L1): 19.1mm (0.75")
- Overall Diameter (D): 20.8mm (0.82")
- Barrel Outer Diameter (D1): 14.2mm (0.56")
- Barrel Inner Diameter (D2): 11.6mm (0.46")
- Pad Width (B): 30.4mm (1.20")
- Pad Thickness (E): 8.7mm (0.34")
- Hole Diameter (F): 2.4mm (0.09")
- Terminal Material: Tin-Plated Copper
- Temperature Rating: 90°C
- Voltage Rating: 35 kV
- Maximum Ampacity: 265A
- Color Code: Black
- Die Index: I-45
- UL Recognized: Yes
- CE Certified: Yes
- RoHS Compliant: Yes
Cross-Reference
Equivalent to long barrel one-hole compression lug form factors from major manufacturers. Compatible with standard industry tooling and installation practices for 2/0 AWG termination.
FAQ
What crimping die is required for this lug?
Use die index I-45 for proper compression. Verify tool compatibility with manufacturer specifications before installation.
Is this lug suitable for outdoor applications?
The electro-tin-plated copper construction provides corrosion resistance. Installation environment and applicable NEC requirements determine suitability for specific outdoor use.
Can this lug be used with fine-stranded cable?
This lug is specified for 2/0 AWG conductor. Verify compatibility with your specific cable stranding and consult applicable codes for fine-stranded conductor termination requirements.
