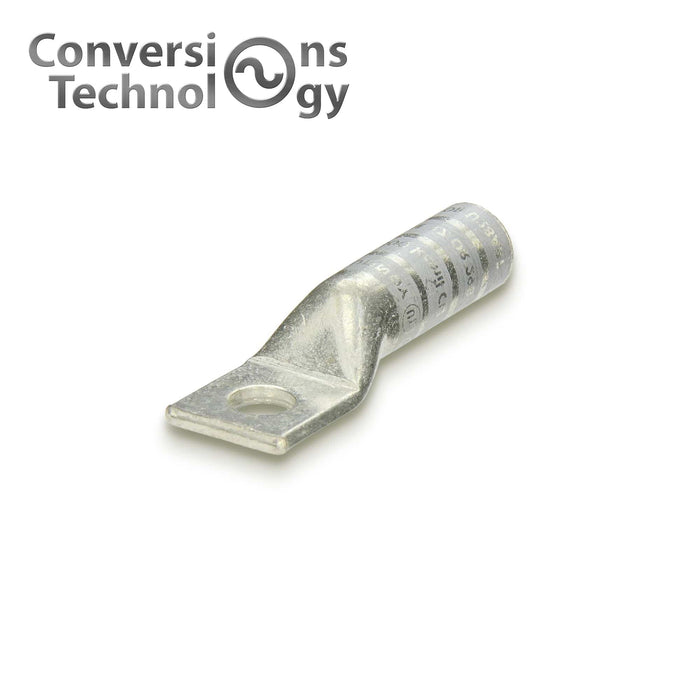

300 MCM Copper Compression Lug 1-Hole 3/8" Stud Long Barrel | 35 kV 90°C
Shipping calculated at checkout
SKU: 210-09865
1000 in stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here
The 300 MCM Copper Compression Lug is a one-hole, long-barrel terminal connector engineered for high-current power distribution terminations. Designed for 300 MCM copper conductors with a 3/8-inch stud interface, this lug provides secure mechanical and electrical connections in switchgear, panelboards, industrial equipment, and utility infrastructure. The long barrel configuration supports multiple crimp zones for enhanced pull-out strength and consistent contact resistance.
Specifications
- Material: Seamless electro-tin plated copper
- Conductor size: 300 MCM copper
- Stud size: 3/8 inch
- Pad holes: 1
- Barrel type: Long barrel
- Barrel entry: Chamfered
- Color code: White
- Overall length: 3.469 inch
- Barrel length: 1.688 inch
- Barrel size (ID × OD): 0.66 inch × 0.812 inch
- Die index: I-66
- Pad size: 1.25" L × 1.088" W × 0.157" thick
- Voltage rating: 35 kV
- Temperature rating: 90°C
Cross-Reference
This long-barrel compression lug is equivalent in form and function to standard one-hole copper lugs from major manufacturers including Panduit, Burndy, and Ilsco series, offering comparable electrical performance and dimensional compatibility at reduced cost.
FAQ
What crimping die is required for this lug?
Use die index I-66 with a compression tool rated for 300 MCM copper conductors. Proper die selection ensures full barrel compression and maintains the 35 kV voltage rating.
Is this lug rated for wet locations?
The tin-plated copper construction provides corrosion resistance. Verify specific environmental suitability against local code requirements and installation conditions.
Can this lug be used with aluminum wire?
No. This lug is engineered specifically for 300 MCM copper conductors. Using aluminum wire will result in improper fit and potential connection failure.
