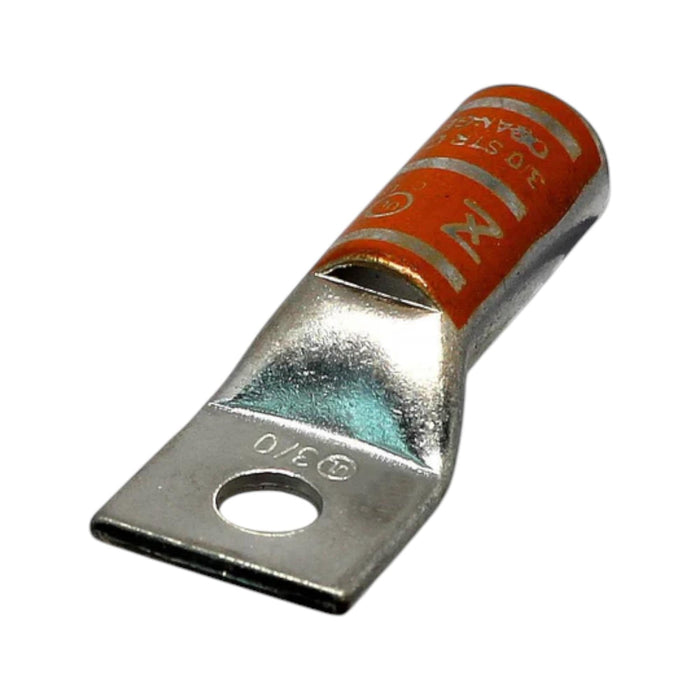

Copper Long Barrel One Hole Compression Lug 3/0 AWG 3/8-inch Bolt Size
Shipping calculated at checkout
SKU: 210-98072B
1000 in stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here
The Conversions Tech robust copper compression lug designed for secure electrical connections. Tailored for a conductor size of 3/0, it features a 3/8-inch bolt size and a long barrel with tin plating to ensure reliable performance. The distinctive orange color code simplifies identification, making installations more efficient. With its streamlined design and absence of a sight window, this lug offers optimal performance, ideal for a wide range of electrical applications.
Key Features
- Robust Copper Construction: Provides high conductivity and durability, ensuring a reliable and secure electrical connection.
- 3/0 Conductor Size: Designed specifically for 3/0 gauge conductors, making it suitable for medium to large electrical wiring applications.
- 3/8-inch Bolt Size: Features a 3/8-inch bolt hole for a secure and stable attachment.
- Long Barrel Design: Offers ample crimping space, ensuring a strong and stable electrical connection over time.
- Tin-Plated Finish: Provides corrosion resistance, enhancing the lug’s performance and longevity, even in harsh environments.
- Orange Color Code: The distinct orange color code makes it easy to identify the lug's size during installation.
-
Streamlined Design (No Sight Window): The absence of a sight window keeps the design clean and compact while still maintaining optimal performance.
Technical Specifications
| Material | Seamless Electro-Tin Plated Copper |
|---|---|
| Color | Orange |
| Overall Length | 3.189 Inch |
| Barrel Length | 1.5 Inch |
| Conductor Material | Copper |
| Voltage Rating | 35 kV |
| Conductor Size | 3/0 AWG |
| Stud Size | 3/8 Inch |
| Die Index | I-50 |
| Pad Size | 1.25 Inch L X 0.885 Inch W X 0.125 Inch Thk |
| Pad Holes | 1 |
| Barrel Type | Long Barrel |
| Insulation ID/OD | 0.484 Inch ID X 0.609 Inch OD |
| Barrel Entry | Chamfered |
| Temperature Rating | 90 Deg C |
