Long Barrel Two-Hole Compression Lug 1/0 AWG 3/8" Stud | 90°C 35kV 230A
Shipping calculated at checkout
SKU: 210-98095C
Only 8 in stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here

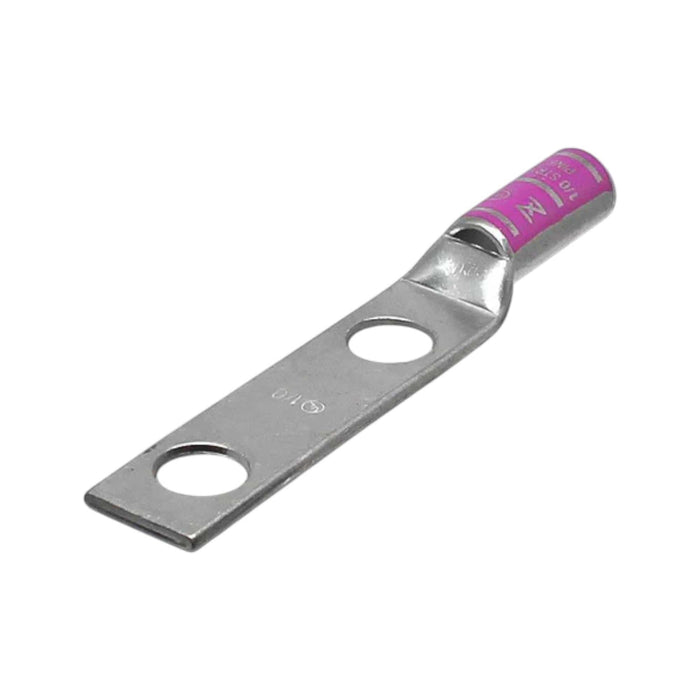

The Conversions Tech long-barrel two-hole compression lug terminates 1/0 AWG copper conductors in power-distribution, switchgear, and renewable-energy applications. The dual-hole pattern with 3/8-inch stud size and 1-inch hole spacing provides mechanical stability for high-vibration environments. Tin-plated copper construction resists oxidation while the pink color code enables rapid field identification per industry standards.
Specifications
- Conductor Size: 1/0 AWG
- Stud Size: 3/8"
- Hole Spacing: 1 inch (10.4 mm / 0.41")
- Overall Length (L): 101.7 mm (4.01")
- Neck Length (L1): 65.5 mm (2.58")
- Barrel Length (L2): 44.5 mm (1.75")
- Outer Diameter (D): 18.4 mm (0.73")
- Inner Diameter (D1): 13.0 mm (0.51")
- Hole Diameter (D2): 10.2 mm (0.40")
- Width (B): 29.8 mm (1.18")
- Thickness (F): 2.7 mm (0.11")
- Material: Tin-Plated Copper
- Color Code: Pink
- Temperature Rating: 90 °C
- Voltage Rating: 35 kV
- Maximum Amp Rating: 230 A
- Certifications: UL Recognized, CE Certified, RoHS Compliant
Cross-Reference
Equivalent to standard two-hole long-barrel compression lugs from major manufacturers. Form factor matches industry-standard dimensions for 1/0 AWG dual-hole lugs at lower cost.
FAQ
What crimp die index applies to this lug?
Use a compression tool calibrated for 1/0 AWG copper lugs. Match die markings to the pink color code or manufacturer die index for proper compression.
Is this lug suitable for outdoor installation?
The tin-plated copper finish resists oxidation and corrosion. Verify enclosure ratings and environmental conditions against your specific installation requirements.
Why select a long-barrel design?
Long-barrel construction increases surface contact area between conductor and lug, reducing resistance and heat generation at the termination point.
