Long Barrel Two-Hole Compression Lug 3 AWG 3/8" | 35kV 115A 90°C
Shipping calculated at checkout
SKU: 210-09961
1000 in stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here

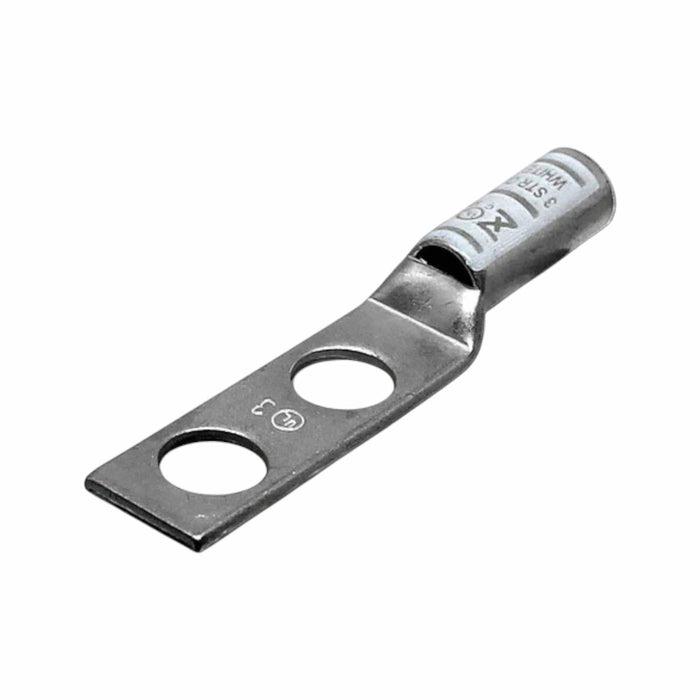

The Conversions Tech long barrel two-hole compression lug terminates 3 AWG copper conductors to 3/8" studs. The extended barrel length provides increased contact surface for high-current applications including switchgear, transformers, and industrial distribution panels. Tin-plated copper construction resists oxidation in standard indoor and outdoor electrical environments.
Specifications
- Conductor Size: 3 AWG
- Stud/Bolt Size: 3/8"
- Barrel Type: Long barrel, two-hole pad
- Pad Configuration: 2 holes with 10.4mm (0.41") center-to-center spacing
- Pad Dimensions: 22.9mm (0.90") width x 2mm (0.08") thickness
- Hole Diameter: 7.9mm (0.31")
- Overall Length: 66.8mm (2.63")
- Neck Length: 40.1mm (1.58")
- Conductor Length: 19.05mm (0.75")
- Outer Diameter: 14.5mm (0.57")
- Inner Diameter: 9.9mm (0.39")
- Material: Tin-plated copper
- Temperature Rating: 90°C
- Voltage Rating: 35kV
- Max Amp Rating: 115A
- Color Code: White
- Die Index: I-50
- Cable Entry: Chamfered
- Certifications: UL Recognized, CE Certified, RoHS Compliant
Cross-Reference
Equivalent to long barrel two-hole compression lug form factors from Panduit, Burndy, and Ilsco. Conversions Tech lugs are engineered to US specifications and manufactured by certified partner factories to provide equivalent electrical performance at reduced procurement cost.
FAQ
What crimping tool is required for this lug?
The I-50 die index specifies compatibility with industry-standard crimping tools using I-50 dies. Verify die alignment with the long barrel configuration before crimping.
Is this lug suitable for outdoor use?
The tin-plated copper construction and 90°C temperature rating support standard outdoor applications. The 35kV voltage rating accommodates medium-voltage installations where specified by local codes.
Why does the source list conflicting conductor sizes?
The source contains inconsistencies between 3 AWG and 3/0 AWG references. The technical specifications table confirms 3 AWG conductor size, 66.8mm overall length, and 115A ampacity—consistent with 3 AWG rating. Verify conductor size with your application requirements before ordering.
