Two-Hole Long Barrel Compression Lug 8 AWG 1/4" Stud | 35kV 90°C
Shipping calculated at checkout
SKU: 210-98084D
1000 in stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here

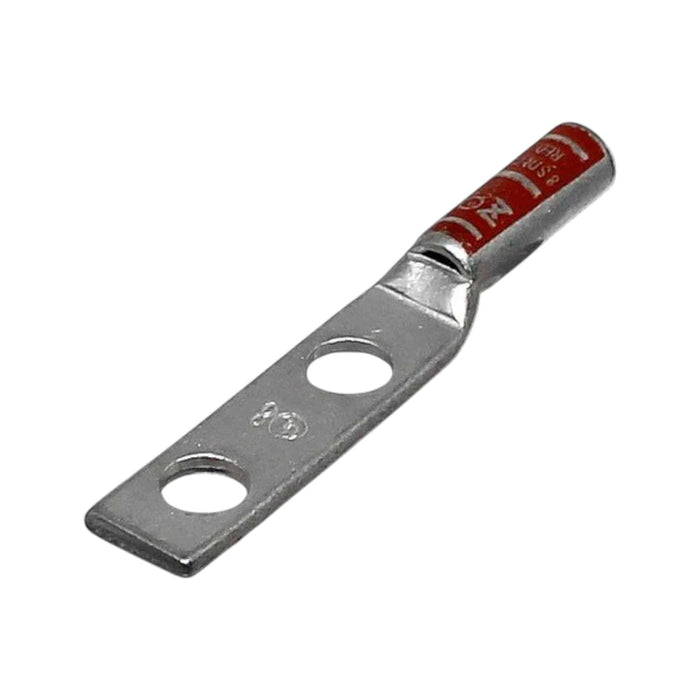

Two-hole long barrel compression lug engineered for 8 AWG copper conductors. Features 1/4-inch bolt size with 1-1/4-inch hole spacing for secure dual-bolt mounting. Tin-plated seamless copper construction with red color code for quick field identification. Rated 35kV, 90°C. Used in industrial power distribution, switchgear terminations, and control panel builds where reliable compression connections are required.
Specifications
- Conductor Size: 8 AWG
- Material: Seamless Electro-Tin Plated Copper
- Barrel Type: Long Barrel with Chamfered Entry
- Barrel Length: 0.812 inches
- Stud Size: 1/4 inch
- Pad Holes: 2
- Pad Hole Spacing: 1 1/4 inch
- Pad Size: 1.437 inch L x 0.486 inch W x 0.093 inch Thk
- Overall Length: 2.444 inches
- Insulation ID/OD: 0.179 inch ID x 0.272 inch OD
- Voltage Rating: 35 kV
- Temperature Rating: 90°C
- Die Index: I-21
- Color Code: Red
Cross-Reference
Equivalent to two-hole long barrel compression lug form factors from major manufacturers. Spec-built to industry-standard dimensions for direct substitution in applications requiring 8 AWG termination with 1/4-inch dual-bolt mounting.
FAQ
What crimping die is required for this lug?
Die index I-21. Verify die compatibility with your compression tool manufacturer's chart before installation.
Is this lug rated for 90°C conductor applications?
Yes. Temperature rating is 90°C per specifications. Suitable for use with 90°C rated copper conductors and in environments within this thermal limit.
What is the center-to-center hole spacing?
1-1/4 inch (1.25 inch) pad hole spacing. Verify busbar or terminal block hole pattern matches before ordering.
