2-Hole Copper Compression Lug 2 AWG 1/4" Stud | Long Barrel, 35kV, 90°C
Shipping calculated at checkout
SKU: 210-98088B
1000 in stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here

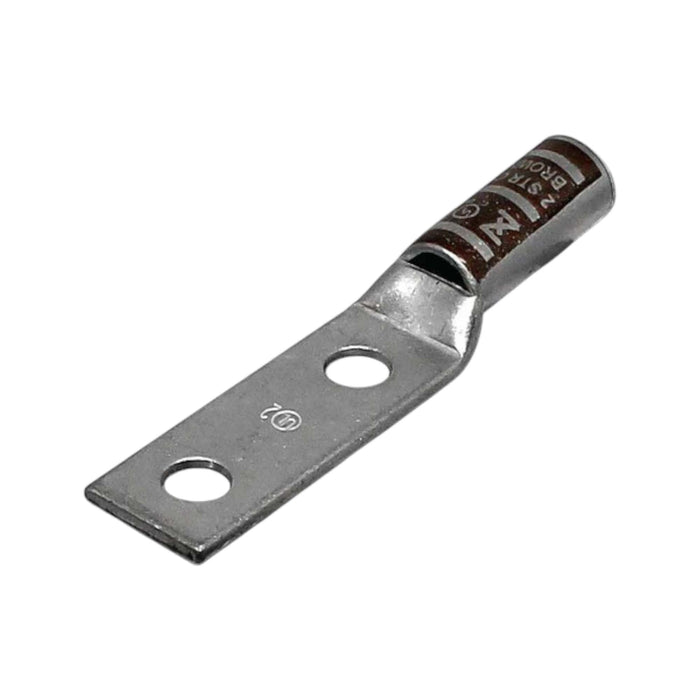

Two-hole copper compression lug for terminating 2 AWG copper conductors on 1/4-inch studs. Long barrel design accommodates full-length crimps for maximum contact surface and mechanical strength. Tin-plated seamless copper construction resists corrosion in industrial, utility, and commercial electrical installations. Brown color code provides instant conductor size identification in high-density panel and switchgear applications.
Specifications
- Conductor Size: 2 AWG
- Stud Size: 1/4 Inch
- Pad Holes: 2
- Pad Hole Spacing: 5/8 Inch
- Pad Dimensions: 1.437" (L) x 0.599" (W) x 0.109" (Thk)
- Barrel Type: Long
- Barrel Length: 1.125 Inches
- Barrel ID x OD: 0.312" x 0.421"
- Overall Length: 2.848 Inches
- Material: Seamless Electro-Tin Plated Copper
- Conductor Material: Copper
- Cable Entry: Chamfered Entry
- Voltage Rating: 35 kV
- Temperature Rating: 90°C
- Die Index: I-33
- Color Code: Brown
Cross-Reference
Equivalent to long-barrel two-hole compression lugs from major manufacturers. Specified by Conversions Tech engineering and produced to exacting tolerances by certified partner factories.
FAQ
What crimping tool and die should I use for this lug?
Use a compression tool with Die Index I-33. The long barrel requires a full-length crimp pattern; follow the manufacturer's crimp sequence marked on the barrel for proper termination.
Is this lug rated for medium voltage applications?
Yes, the 35 kV voltage rating suits medium voltage terminations. Verify installation practices meet applicable NEC and local code requirements for the specific voltage class and environment.
Why choose a long barrel over a standard barrel lug?
The 1.125-inch long barrel provides increased crimp surface area for higher pull-out strength and lower resistance connections on 2 AWG conductors, particularly in high-vibration or heavy-fault-current applications.
