Long Barrel Two-Hole Compression Lug 2 AWG 1/4" Stud | 170A 90°C
Shipping calculated at checkout
SKU: 210-98088D
1000 in stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here

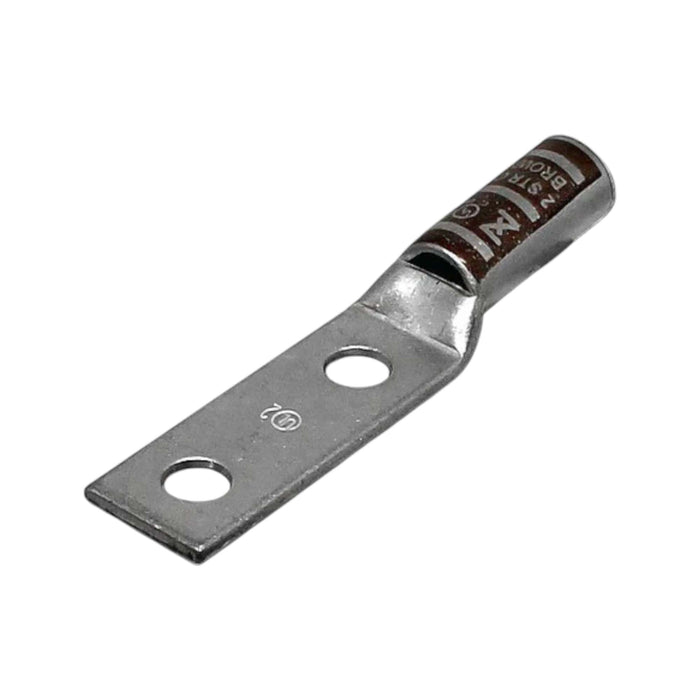

Long barrel two-hole compression lug for 2 AWG copper conductors. Features 1/4-inch stud size with 1-inch hole spacing for standard busbar or terminal block mounting. Tin-plated copper construction provides corrosion resistance and reliable conductivity for industrial power distribution, panel building, and equipment grounding applications. Brown color code for quick wire size identification. Long barrel design facilitates conductor insertion and full-length crimping for maximum contact surface and mechanical strength.
Specifications
- Wire Size: 2 AWG
- Stud Size: 1/4"
- Hole Spacing: 1"
- Terminal Material: Tin-Plated Copper
- Temperature Rating: 90°C
- Voltage Rating: 35kV
- Max Amp Rating: 170A
- Color Code: Brown
- Dimensions L: 61.5mm (2.42")
- Dimensions L1: 32.4mm (1.28")
- Dimensions L2: 15.9mm (0.63")
- Dimensions D: 15.9mm (0.63")
- Dimensions D1: 10.8mm (0.43")
- Dimensions D2: 8.5mm (0.34")
- Dimensions B: 24.5mm (0.97")
- Dimensions E: 7.1mm (0.28")
- Dimensions F: 2.2mm (0.09")
- UL Recognized: Yes
- CE Certified: Yes
- RoHS Compliant: Yes
Cross-Reference
Equivalent to Panduit, Burndy, and Ilsco two-hole long barrel compression lugs for 2 AWG applications. Matches standard industry dimensions and electrical ratings at reduced cost.
FAQ
What crimping tool is required for this lug?
Use a standard 6-ton or 12-ton hydraulic crimping tool with the appropriate die set for 2 AWG copper compression lugs. The long barrel requires a die that accommodates the full barrel length for proper compression.
Is this lug suitable for outdoor or wet location use?
The tin-plated copper construction provides corrosion resistance. For outdoor or wet locations, proper insulation and sealing of the connection with appropriate tape or heat-shrink is required per NEC guidelines.
Can this lug be used with aluminum wire?
This lug is specified for 2 AWG copper conductors only. For aluminum wire applications, use lugs specifically rated for aluminum or dual-rated copper/aluminum terminals with proper antioxidant compound.
