Long Barrel Two-Hole Copper Compression Lug 2 AWG 3/8" Stud | 90°C
Shipping calculated at checkout
SKU: 210-98088F
994 in stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here

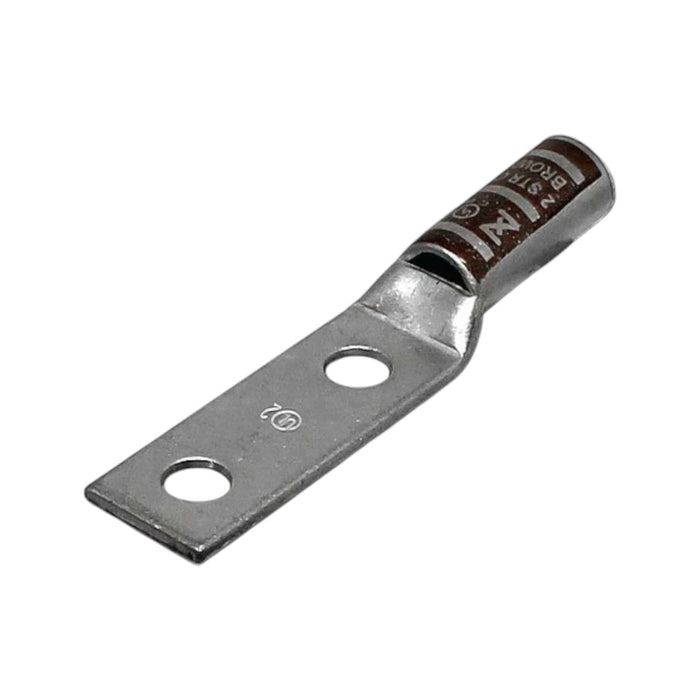

The Conversions Tech long barrel two-hole compression lug is a tin-plated copper termination device engineered for 2 AWG conductors. Designed for secure attachment to terminals and busbars via dual 3/8-inch mounting holes on 1-3/4-inch centers, this lug provides reliable electrical continuity in power distribution, industrial control panels, and commercial electrical systems. The extended barrel profile accommodates full-length crimping for maximum conductor engagement and mechanical integrity.
Specifications
- Wire Size: 2 AWG
- Stud/Bolt Size: 3/8"
- Hole Spacing: 1-3/4" (44.5mm)
- Terminal Material: Tin-plated copper
- Color Code: Brown
- Overall Length (L): 69.2mm (2.73")
- Barrel Length (L1): 40.1mm (1.58")
- Pad Length (L2): 25.4mm (1.00")
- Max Outer Diameter (D): 15.9mm (0.63")
- Barrel Outer Diameter (D1): 10.8mm (0.43")
- Barrel Inner Diameter (D2): 8.5mm (0.34")
- Pad Width (B): 24.5mm (0.97")
- Pad Thickness (E): 10.4mm (0.41")
- Wall Thickness (F): 2.2mm (0.09")
- Temperature Rating: 90°C
- Voltage Rating: 35kV
- Max Amp Rating: 170A
- Certifications: UL Recognized, CE Certified, RoHS Compliant
Cross-Reference
Equivalent to standard two-hole long barrel compression lug form factors from major manufacturers including Burndy, Panduit, and Ilsco. Conversions Tech lugs deliver comparable electrical and mechanical performance at reduced procurement cost for 2 AWG applications.
FAQ
What crimping tool and die set are required for this lug?
Use an industry-standard hexagonal crimping tool with dies sized for 2 AWG copper compression lugs. The long barrel design requires a die set that accommodates the extended barrel length (40.1mm) to achieve full compression across the entire conductor insertion depth.
Is this lug suitable for 90°C wet locations?
The 90°C temperature rating applies to the lug material itself. Installation in wet locations requires evaluation of the complete termination assembly, including conductor insulation rating and enclosure environmental protection, per NEC Article 110.14(C) and applicable local codes.
Why does this lug have two mounting holes instead of one?
Dual-hole mounting provides mechanical redundancy and resistance to rotation under fault conditions or vibration. The 1-3/4" spacing matches standard busbar and terminal block drilling patterns common in switchgear and panelboard applications.
