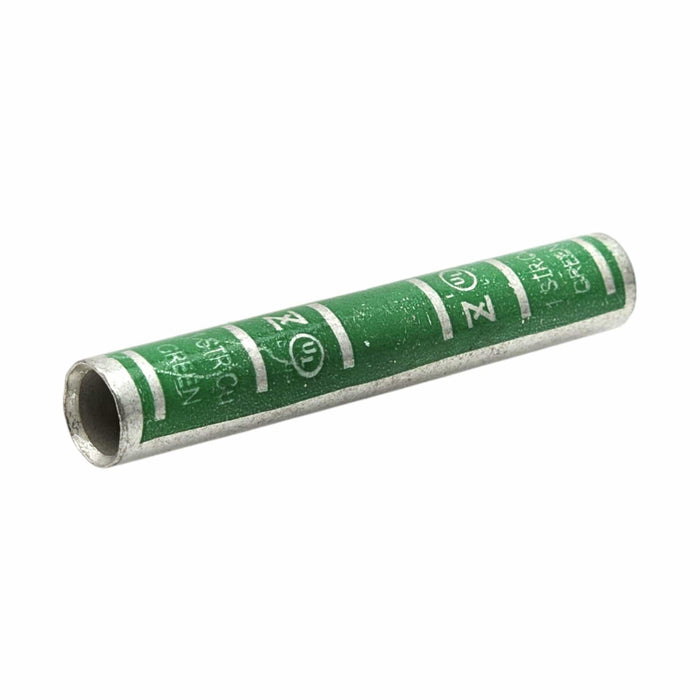

Copper Long Length Compression Splice 1 AWG

The Conversions Technology Long Barrel Copper Crimp Connector sets the benchmark for durability and performance in high-demand electrical applications. Specifically designed for 1 AWG copper conductors, it features an extended barrel length to enhance mechanical strength and conductivity. Its seamless copper construction, combined with electro-tin plating, ensures superior corrosion resistance and consistent performance. The orange color coding allows quick identification and compliance with industry standards.

Technical Specifications

• Type: Long Barrel with Center Wire Stop
• Length: 2.500 inches
• Inner Diameter: 0.390 inches
• Outer Diameter: 0.500 inches
• Conductor Material: High-Strength Seamless Copper
• Finish: Electro-Tin Plated for Corrosion Resistance
• Voltage Rating: 35 kV
• Temperature Rating: 90°C
• Conductor Size: 1 AWG (compatible with 2 AWG to 1 AWG)
• Color Code: Green
• Certifications: UL Listed, RoHS Compliant

Key Features

• Extended barrel design for increased crimping surface and secure connections.
• Manufactured from seamless high-strength copper for unmatched durability.
• Electro-tin plating offers superior corrosion resistance and longevity.
• Accommodates wire sizes from 2 AWG to 1 AWG.
• Orange color coding for fast identification and compliance with standards.
• Rated for high-voltage applications up to 35 kV.
• Chamfered ends for easy wire insertion and reliable crimping.
• Temperature tolerance up to 90°C for a wide range of environments.

Applications

• Power Distribution Panels
• Industrial Machinery
• Renewable Energy Systems
• Electrical Substations
• Commercial and Residential Construction
• Data Centers
• Telecommunications Infrastructure
• Generators and Temporary Power Installations
• Utility Networks

Product Advantages

Designed with an extended barrel for superior performance and constructed from high-quality materials, the Conversions Technology Long Barrel Copper Crimp Connector offers a dependable and efficient solution for professional-grade electrical installations. Its ease of use and compliance with industry standards make it a trusted choice for a variety of applications.
