Two Hole Compression Lug 1 AWG 1/4" Stud | 35kV, 90°C, Tin-Plated Copper
Shipping calculated at checkout
SKU: 210-98048A
970 in stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here

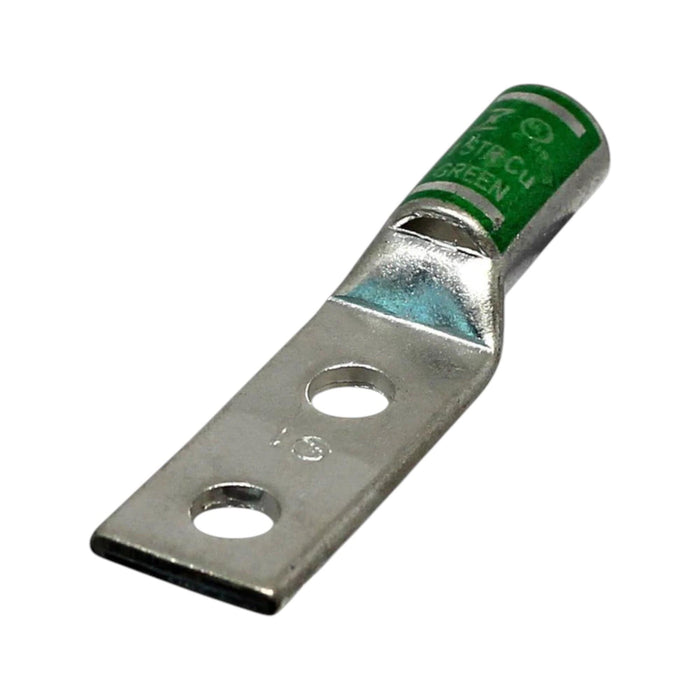

Two hole short barrel compression lug for terminating 1 AWG copper conductors. Tin-plated copper construction with sight window for visual crimp verification. Used in switchgear, panelboards, and industrial power distribution where dual-bolt mounting provides mechanical stability and electrical redundancy.
Specifications
- Conductor Size: 1 AWG
- Stud Size: 1/4"
- Pad Holes: 2
- Hole Spacing: 5/8" (15.9mm)
- Pad Dimensions: 1.437" L x 0.673" W x 0.109" Thk
- Barrel Length: 0.625"
- Overall Length: 2.392"
- Inner Diameter: 0.359"
- Outer Diameter: 0.468"
- Material: Seamless electro-tin plated copper
- Color Code: Green
- Die Index: I-37
- Cable Entry: Chamfered type
- Barrel Type: Standard
- Voltage Rating: 35 kV
- Temperature Rating: 90°C
- Max Amp Rating: 85 Amps
- UL Recognized: Yes
- CE Certified: Yes
- RoHS Compliant: Yes
Cross-Reference
Equivalent to standard two-hole compression lug configurations from major manufacturers. Green color coding matches industry-standard 1 AWG identification systems.
FAQ
What crimping tool and die are required?
Use die index I-37 for proper crimp compression. Verify through the sight window after crimping to ensure full conductor insertion.
Is this lug suitable for 35kV applications?
Yes, rated for 35kV. Verify clearances and insulation requirements per NEC and local codes for medium-voltage installations.
Can this be used with stranded or solid 1 AWG copper?
Designed for stranded copper conductors. Inner diameter 0.359" accommodates standard 1 AWG stranded construction. Do not use with solid conductors without verification of fit.
