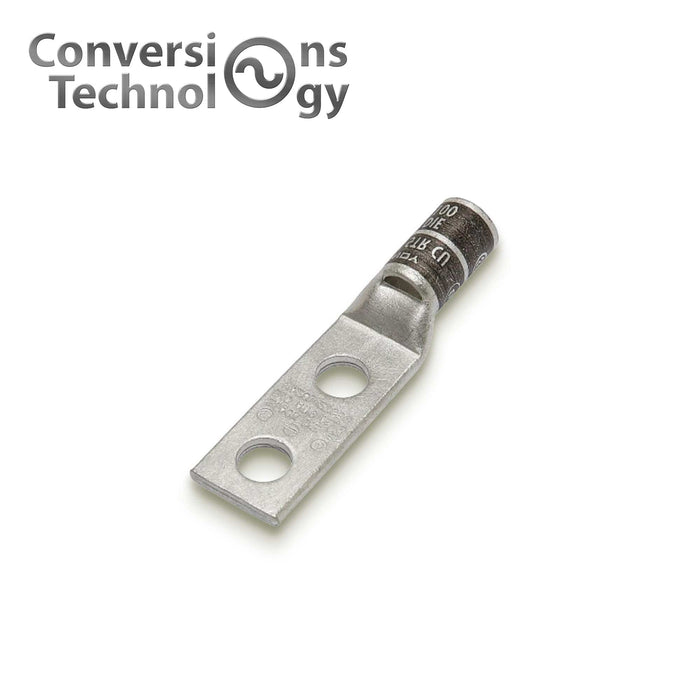

2-Hole Copper Compression Lug 2/0 AWG 1/4" Bolt | 35kV 90°C Tin-Plated
Shipping calculated at checkout
SKU: 210-09939
990 in stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here
The 2-hole copper compression lug terminates 2/0 AWG conductors in power distribution, switchgear, and industrial panel applications. Designed for secure two-bolt mounting to bus bars or equipment terminals, this short-barrel lug provides reliable electrical contact with chamfered barrel entry for conductor insertion. The tin-plated seamless copper construction resists oxidation in standard indoor and outdoor electrical environments.
Specifications
- Conductor Size: 2/0 AWG
- Stud/Bolt Size: 1/4 Inch
- Pad Holes: 2
- Pad Hole Spacing: 1-3/4 Inches
- Pad Size: 3 Inches L x 0.811 Inch W x 0.125 Inch Thk
- Barrel Type: Standard
- Barrel Length: 0.75 Inch
- Inner Diameter (ID) x Outer Diameter (OD): 0.437 Inch x 0.562 Inch
- Barrel Entry: Chamfered
- Overall Length: 4.146 Inches
- Material: Seamless Electro-Tin Plated Copper
- Color Code: Black
- Voltage Rating: 35 kV
- Temperature Rating: 90°C
- Die Index: I-45
- Conductor Material Compatibility: Copper
Cross-Reference
Equivalent form to Burndy YAV, Panduit LCA, and Ilsco CKR series two-hole compression lugs. Same dimensional envelope and electrical ratings at reduced cost.
FAQ
What crimp die do I use for this lug?
Use die index I-45 with your compression tool. The sight window allows visual confirmation of full conductor insertion before crimping.
Is this lug rated for 90°C conductor ampacity?
Yes. The 90°C temperature rating matches standard THHN/THWN-2 and XHHW-2 conductor insulations for full NEC ampacity calculations.
Why two holes instead of one?
The 1-3/4" hole spacing provides mechanical stability against torque and vibration. Two-bolt mounting is standard for 2/0 AWG and larger power connections in switchgear and transformer terminations.
