Two-Hole Copper Compression Lug 2 AWG 1/2" Stud | I-33 Die
Shipping calculated at checkout
SKU: 210-09929
1000 in stock
Open here

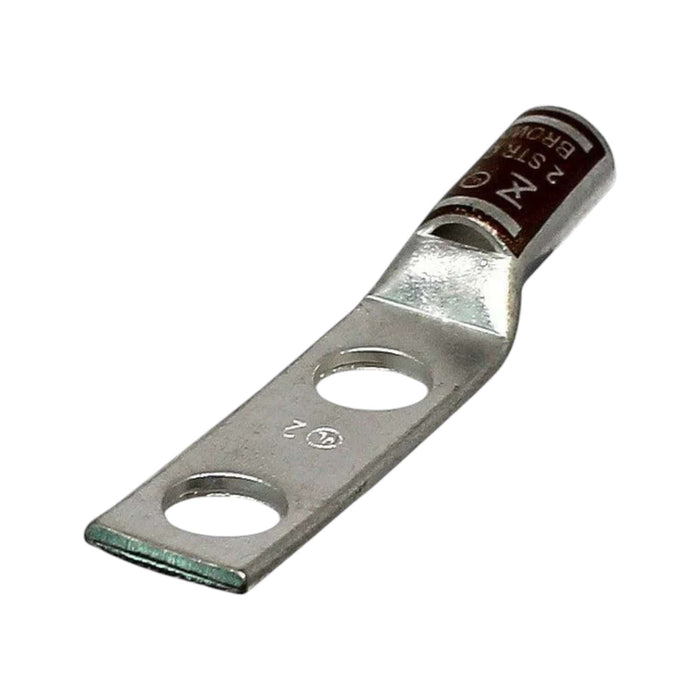

Two-hole short barrel compression lug for terminating 2 AWG copper conductors to 1/2-inch studs. Engineered for industrial electrical applications including switchgear, panelboards, and power distribution equipment where dual-bolt mounting provides mechanical redundancy and improved current distribution. Tin-plated copper construction with color-coded barrel for quick field identification.
| Specifications (dimensions per manufacturer UL data sheet) | |
| Part number | 210-09929 |
| Manufacturer catalog number | ST212 |
| Conductor | 2 AWG copper, Class B stranded |
| Stud | 1/2 in, 2 hole, 1.75 in center spacing |
| Barrel | Short, 0.80 in (E), chamfered entry, inspection window |
| Overall length | 3.86 in (B) |
| Tongue width | 0.599 Inch |
| Tongue thickness | 0.109 Inch |
| Die | Index 33, Brown, one crimp |
| Material | Electrolytic copper, electro tin plated |
| Rating | UL 486A, cULus, 90 C, 600 V, 115 A at 75 C |
| Color code | Brown |
Specifications
- Conductor Size: 2 AWG
- Stud/Bolt Size: 1/2 Inch
- Pad Holes: 2
- Pad Hole Spacing: 5/8 Inch
- Barrel Type: Standard
- barrel length 0.80 in
- Inner Diameter: 0.312 Inch
- Outer Diameter: 0.421 Inch
- Overall Length: 3.86 ines
- Pad Size: 1.437 Inches L x 0.599 Inches W x 0.109 Inches Thk
- Material: Seamless Electro-Tin Plated Copper
- Color Code: Brown
- Voltage Rating: 35 kV
- Temperature Rating: 90 Deg C
- Die Index: I-33
- Cable Entry: Chamfered Type
- Features: Sight window for inspection
Cross-Reference
Equivalent to standard two-hole compression lug form factors used in industrial electrical termination. Comparable to Burndy YAV, Panduit LCC, and Ilsco compression lug series in dimensional and electrical performance specifications.
FAQ
What crimping tool and die set is required for this lug?
Use a compression tool with I-33 die index. Verify die alignment with the sight window during crimping to ensure full barrel compression.
Is this lug suitable for 90°C conductor insulation ratings?
Yes. The 90 Deg C temperature rating matches standard THHN/THWN-2 and XHHW-2 insulated conductors at 2 AWG.
Why choose a two-hole lug over single-hole for 2 AWG applications?
Dual 1/2-inch bolts distribute mechanical load and electrical current across two contact points, reducing thermal cycling stress and improving connection reliability in high-vibration environments.
Specifications
| Part Number | 210-09929 |
| Category | Electrical connector |
| Weight | 0.12 lb (est.) |
| HS Code | 8536.90.4000 |
Direct Cross-Reference — Two-Hole NEMA (1.75″ centers), 2 AWG, 1/2 Inch stud
CT P/N 210-09929 is a dimensional and electrical equivalent replacement for:
| Manufacturer | Part Number |
|---|---|
| Burndy (Hubbell) | YA2C2N |
| Panduit | LCC2-12 * |
| NSI Industries | L2NP |
* Cross derived from manufacturer part-numbering pattern; verify against datasheet for critical applications. All trademarks are property of their respective owners and are used for compatibility identification only. Conversions Tech products meet the same UL 486A dimensional and electrical standards at stocked, ships same day pricing.
Die Cross-Reference — 2 AWG (Brown band, industry die index 33)
CT P/N 210-09929 follows the industry-standard 12-ton U-groove die index and interchanges with:
| Manufacturer | Part / Index | System |
|---|---|---|
| Burndy (Hubbell) | U2CRT | U-die, fits Y35 / Y750 / PAT750 |
| Milwaukee | 49-16 U-style * | M18 Force Logic U-style |
| Thomas & Betts | Die Index 33 | Color-Keyed system |
| ILSCO | ILD-33 | IDT die system |
* Part number derived from manufacturer numbering pattern — verify against datasheet for critical applications. Prices are third-party street/MSRP references at time of publication and may change. All trademarks are property of their respective owners, used for compatibility and comparison identification only.
