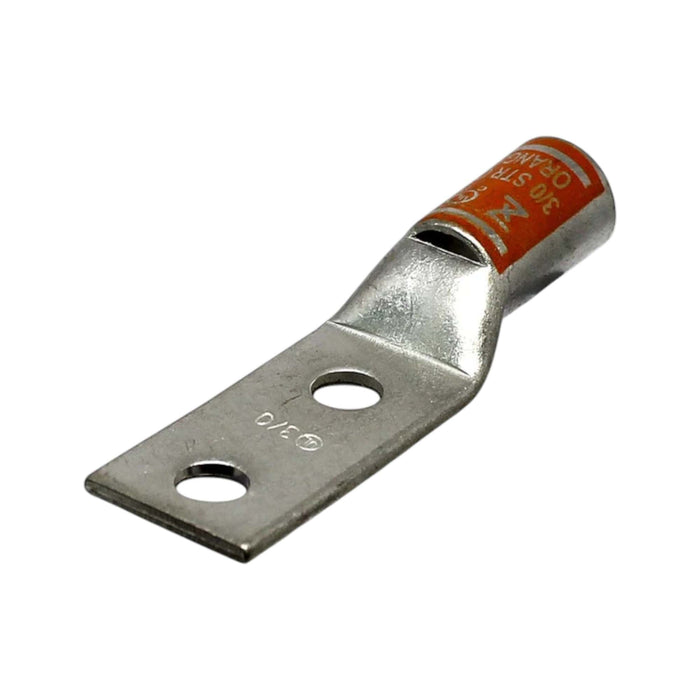

Copper Short Barrel Two Hole Compression Lugs 3/0 AWG 1/4-inch Bolt Size
Shipping calculated at checkout
SKU: 210-98053
1000 in stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here
2/0 AWG Copper Compression Lug | 2-Hole | 1/2" Stud | 1" Spacing | Orange | Conversions Tech
The Conversions Tech 2/0 AWG Copper Compression Lug is a high-performance connector engineered for reliable and durable electrical terminations. Featuring a 2-hole configuration with 1/2-inch bolt size and 1-inch hole spacing, this lug ensures superior mechanical strength and secure mounting for heavy-duty electrical systems. Constructed from seamless tin-plated copper, it provides excellent conductivity and corrosion resistance, while the standard barrel and sight window simplify crimping and installation verification. The orange color code allows quick identification for efficient, professional-grade electrical work.
Rated for up to 35 kV and 90°C, this lug meets UL, CE, and RoHS compliance standards and is designed for use in industrial, commercial, and renewable energy applications.
Key Features
- 2/0 AWG Conductor Size: Ensures a strong, low-resistance connection for high-current electrical systems.
- Dual 1/2-Inch Holes: Provides additional stability for secure, vibration-resistant mounting.
- 1-Inch Hole Spacing: Standard spacing for NEMA-aligned terminal layouts.
- Standard Barrel Design: Allows for easy crimping and optimal compression for lasting conductivity.
- Sight Window: Enables quick inspection of conductor seating for accurate installation.
- Tin-Plated Finish: Improves conductivity and corrosion resistance in all environments.
- Orange Color Code: Simplifies wire gauge identification and ensures organized installations.
- Certified Quality: UL, CE, and RoHS compliance guarantees dependable performance and safety.
Technical Specifications
| Material | Seamless Electro Tin-Plated Copper |
| Color | Orange |
| Overall Length | 3.126 Inches |
| Barrel Length | 0.75 Inch |
| Conductor Material | Copper |
| Voltage Rating | 35 kV |
| Conductor Size | 2/0 AWG |
| Stud Size | 1/2 Inch |
| Die Index | I-50 |
| Pad Size | 1.937 L × 0.885 W × 0.125 T Inches |
| Pad Holes | 2 |
| Pad Hole Spacing | 1 Inch |
| Barrel Type | Standard |
| Inner Diameter | 0.484 Inch |
| Outer Diameter | 0.609 Inch |
| Cable Entry | Chamfered Type |
Applications
- Power Distribution Systems: Reliable terminations for feeders, switchgear, and high-power circuits.
- Industrial Installations: Suitable for MCCs, control panels, and automation systems.
- Renewable Energy Systems: Designed for solar and energy storage setups requiring high-current reliability.
- Utility & Commercial Projects: Ideal for professional-grade installations and long-term use.
Frequently Asked Questions (FAQs)
1. What conductor size is supported?
This lug supports 2/0 AWG copper conductors for secure, low-resistance terminations.
2. What is the bolt hole spacing?
It has 1-inch spacing between the two 1/2-inch bolt holes for NEMA-compliant mounting.
3. Does it include a sight window?
Yes, it features a sight window to verify conductor seating during installation.
4. Is this lug corrosion-resistant?
Yes, the electro tin-plated copper construction offers excellent corrosion and oxidation resistance.
5. What certifications does it meet?
It is UL Approved, CE Certified, and RoHS Compliant for safe, professional use.
