Copper Compression Lug 6 AWG #10 Bolt 2-Hole Short Barrel | 35kV 3/4"
Shipping calculated at checkout
SKU: 210-98045
1000 in stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here

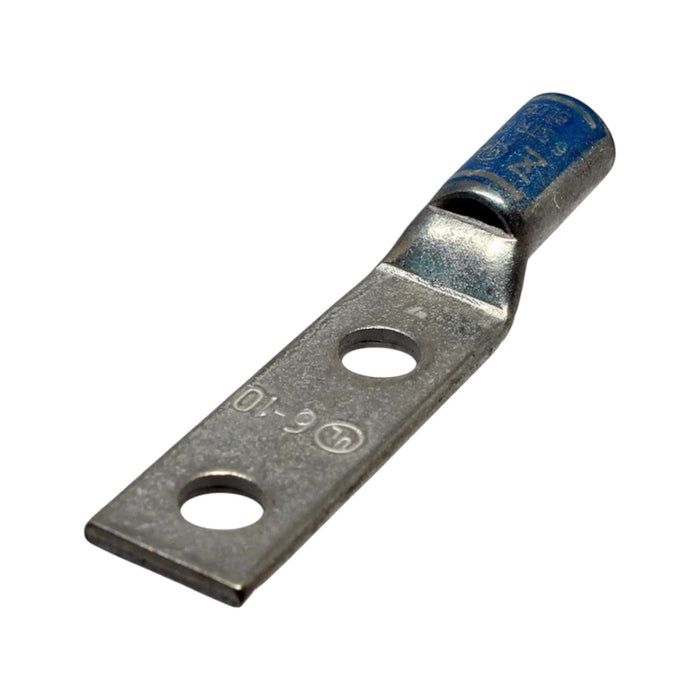

The Conversions Tech Copper Short Barrel Two-Hole Compression Lug is a tin-plated copper connector engineered for medium-duty electrical terminations. Designed for 6 AWG conductors, this lug features a standard short barrel profile with integrated sight window for visual crimp verification. The two-hole mounting pad accepts #10 hardware on 3/4-inch centers, providing mechanical redundancy for critical connections in switchgear, panelboards, and power distribution equipment. The blue color code identifies conductor compatibility per industry standard systems.
Specifications
- Material: Seamless Electro-Tin Plated Copper
- Conductor Size: 6 AWG
- Stud Size: #10
- Pad Holes: 2
- Pad Hole Spacing: 3/4 Inch
- Barrel Type: Standard
- Barrel Length: 0.5 Inch
- Inner Diameter: 0.203 Inch
- Outer Diameter: 0.295 Inch
- Overall Length: 2.132 Inches
- Pad Size: 1.437 Inches Length x 0.44 Inches Width x 0.087 Inches Thickness
- Voltage Rating: 35 kV
- Die Index: I-24
- Cable Entry: Chamfered Type
- Color Code: Blue
Cross-Reference
Equivalent to standard two-hole short barrel compression lugs from Burndy, Panduit, and Ilsco product lines. Conversions Tech lugs are engineered to US specifications and manufactured to consistent dimensional tolerances for direct interchangeability with major domestic brands.
FAQ
What crimping tool and die should I use for this lug?
Use die index I-24 with compatible compression tools. The integrated sight window allows visual confirmation of full crimp completion. Verify tool compatibility with your specific crimping system manufacturer.
Is this lug suitable for 35kV applications?
The lug is rated for 35 kV. Confirm application suitability per NEC and local code requirements for your specific installation environment, including clearances and insulation coordination.
Why does this lug have two holes instead of one?
The 3/4-inch spaced dual-hole pattern provides redundant mechanical attachment and improved resistance to loosening from vibration or thermal cycling. Both holes accept #10 hardware.
