Copper Compression Lug 250 MCM 2-Hole 1/2" Bolt | UL Listed 35kV
Shipping calculated at checkout
SKU: 210-98056B
1000 in stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here

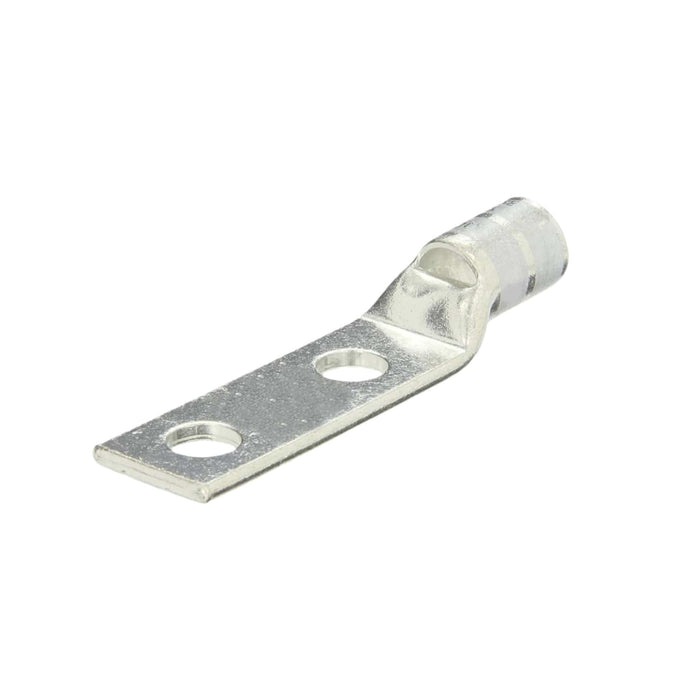

Two-hole copper compression lug for 250 MCM conductors. Tin-plated seamless copper construction with standard barrel, chamfered entry, and sight window for visual confirmation of full conductor insertion. White color-coded for conductor size identification. Used in industrial and commercial electrical systems requiring secure bolted connections to bus bars, switchgear, transformers, and equipment terminals.
Specifications
- Conductor Size: 250 MCM
- Material: Seamless Electro-Tin Plated Copper
- Barrel Type: Standard
- Barrel Length: 1.063 inches
- Barrel Entry Type: Chamfered
- Pad Holes: 2
- Stud/Bolt Size: 1/2 inch
- Pad Hole Spacing: 1-3/4 inch
- Pad Size: 3 inch length x 1.088 inch width x 0.157 inch thickness
- Overall Length: 4.594 inches
- Insulation Size (ID/OD): 0.593 inch ID x 0.75 inch OD
- Voltage Rating: 35 kV
- Temperature Rating: 90°C
- Die Index: I-62
- Color Code: White
- Approvals: UL 453G, UL 467, UL 486A/B, CSA
Cross-Reference
Equivalent to Burndy YAV/YA series and Panduit LCCX two-hole compression lugs for 250 MCM applications. Comparable fit and electrical performance at distributor-level pricing.
FAQ
What crimp die do I use for this 250 MCM lug?
Use die index I-62. The chamfered barrel entry assists with conductor alignment, and the sight window confirms full insertion before crimping.
Is this lug rated for medium voltage applications?
Yes. This lug is rated for 35 kV and carries UL 486A/B listing for use in high-voltage terminations where compression connections are specified.
Why does this lug have two holes?
The 1-3/4 inch spaced 1/2-inch holes provide redundant mechanical attachment to bus bars or equipment pads, reducing loosening from thermal cycling and vibration in industrial environments.
