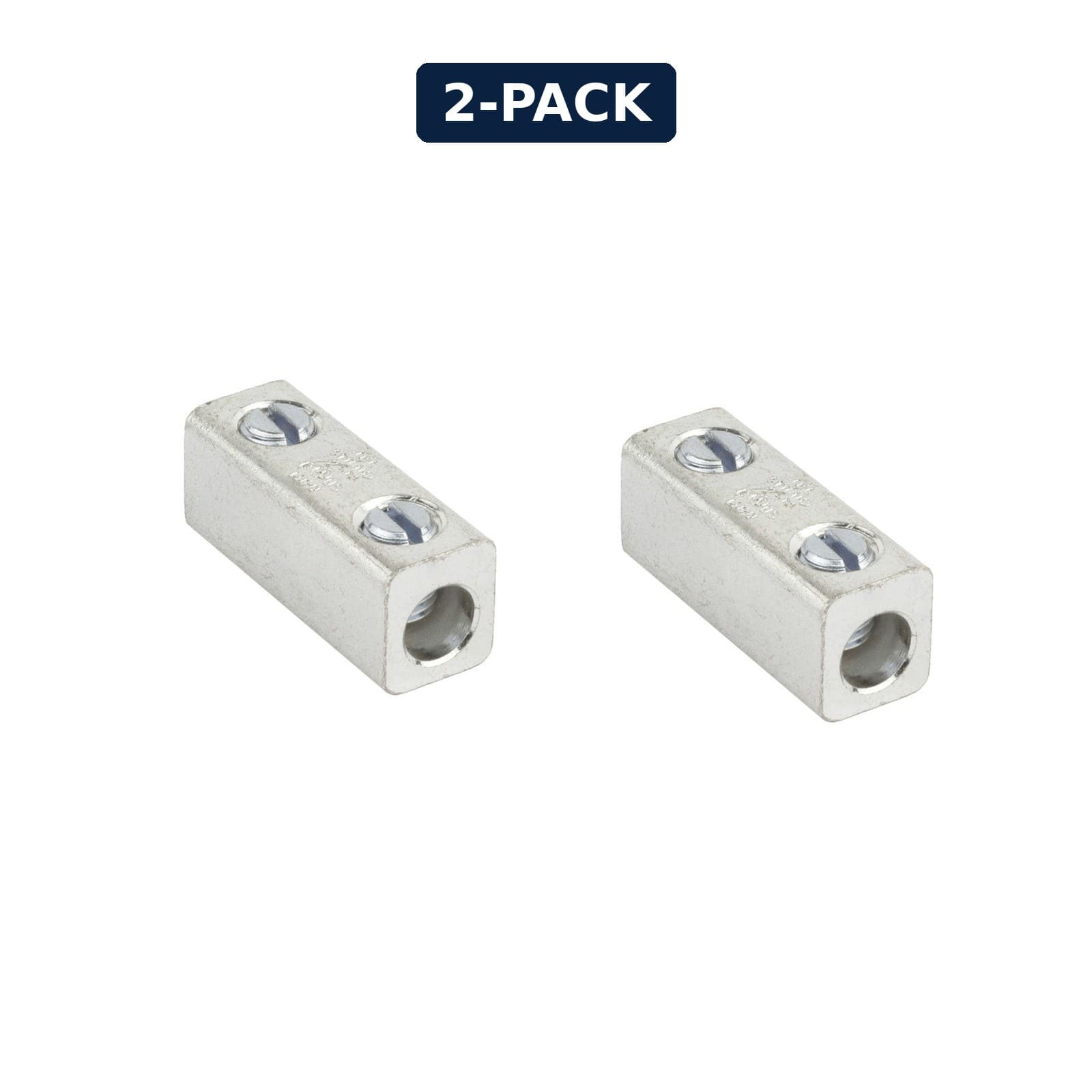

Aluminum Splicer-Reducer, 14 AWG to 1 AWG, 2-Pack | In-Line Set-Screw Splice, Dual-Rated AL9CU, UL 486B | 61102HD
Shipping calculated at checkout
SKU: 61102HD
180 in stock
Open here
The 61102HD dual-rated aluminum splicer-reducer joins or reduces conductors across 14 AWG to 1 AWG in a single tin-plated aluminum barrel with hex set-screw terminations: the fast, re-enterable alternative to a crimped splice for service entrance, panelboard feeder and tap-reduction work. AL9CU dual-rated for copper and aluminum, UL 486B class, 600 V, 90 C. Sold as a 2-pack; insulate with two half-lapped layers of rubber splicing tape and vinyl, or a listed heat-shrink sleeve, to the insulation level of the conductors.
Applications
- Service entrance conductor splices and repairs
- Reducing feeder taps to branch-circuit sizes, 14 AWG to 1 AWG
- Panelboard and meter-base conductor extensions
- Aluminum-to-copper transitions with oxide inhibitor; no crimping tool, re-enterable
| Specifications | |
| Part number | 61102HD, pack of 2 |
| Conductor range | 14 AWG to 1 AWG, copper or aluminum, stranded or solid, each end |
| Body | 6061 aluminum, electro tin plated, one hex set screw per end |
| Rating | 600 V, 90 C, UL 486B class, AL9CU |
| Torque | 14 to 10 AWG 35 lb-in; 8 AWG 40 lb-in; 6 to 4 AWG 45 lb-in; 3 to 1 AWG 50 lb-in |
| Weight | 0.25 lb per pack |
Cross-Reference: 61102HD
| Brand | Part | Notes |
|---|---|---|
| ILSCO | SPA-2, SPA-0 | dual-rated aluminum splicer-reducer, same class |
| Morris Products | 90612* | match by range and UL 486B class |
| Burndy | AMS series* | aluminum mechanical splice, match by range |
| Polaris (NSI) | IPL series | pre-insulated alternative; see insulated multi-taps |
*Cross by conductor range and UL 486B class; verify for your application. Trademarks belong to their owners. In stock and ships same day. Guide: split bolt vs C-tap vs multi-tap. Contractor and distributor pricing.
