Copper Long Barrel Two Hole Compression Lugs 1/0 AWG 3/8-inch Bolt Size
Shipping calculated at checkout
SKU: 210-98095C
999 in stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here

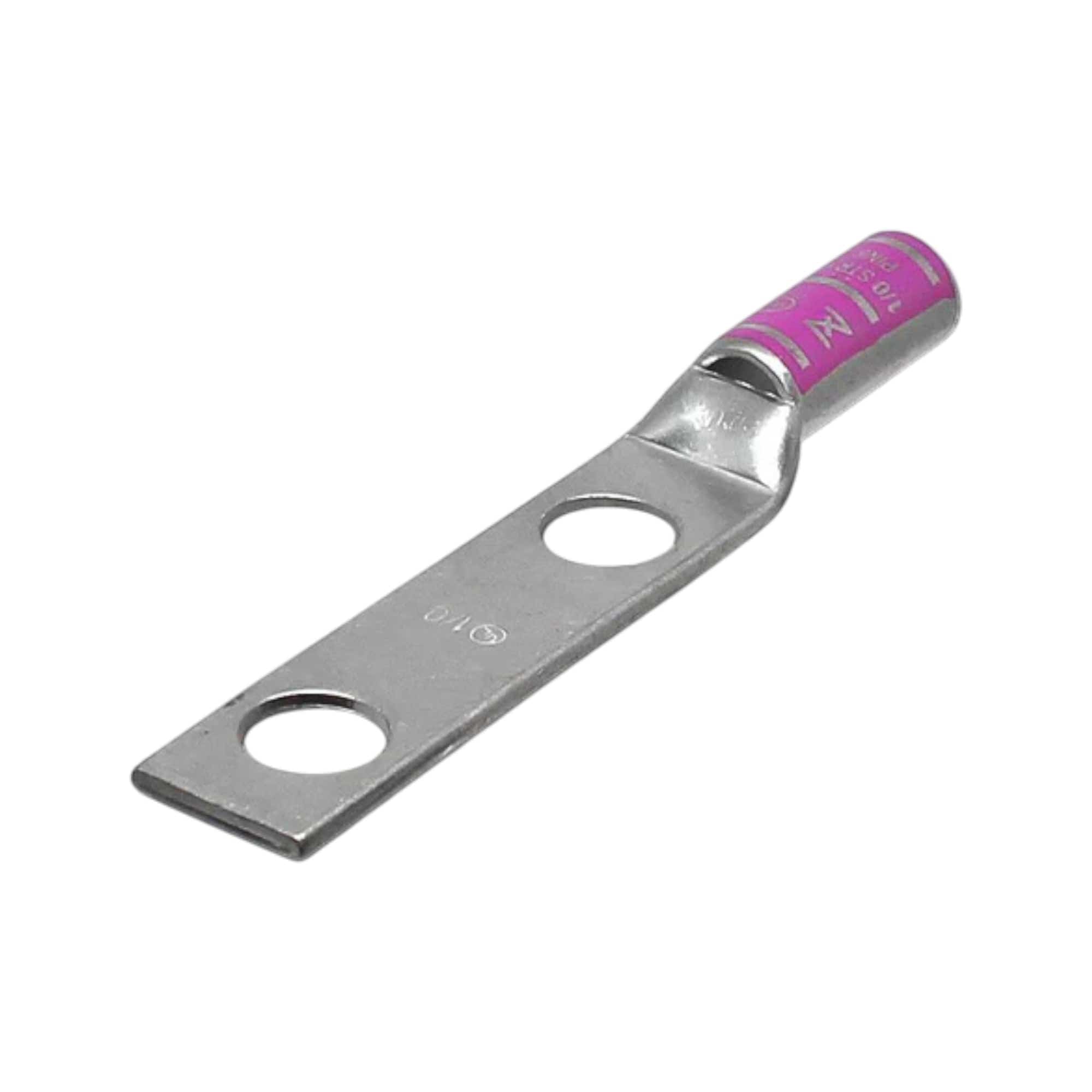

The Conversions Tech robust copper compression lug is designed for secure and efficient electrical connections with 1/0 AWG conductors. Featuring a 3/8-inch bolt size, 1-inch hole spacing, a long barrel, and a pink color code for easy identification, this tin-plated lug is a reliable choice for various electrical applications.
Key Features
- Conductor Size: Designed for 1/0 AWG conductors, ensuring a secure and efficient electrical connection for this wire gauge.
- Bolt Size: 3/8-inch bolt size for a solid and stable connection to electrical systems.
- Hole Spacing: Features a 1-inch hole spacing, providing compatibility with various types of connectors and equipment.
- Long Barrel: Enhances surface contact and connection strength, ensuring better conductivity and reliability.
- Material: Tin-plated copper construction, offering excellent conductivity, corrosion resistance, and durability for long-term use.
- Color Code: Pink color code for easy and quick identification, improving efficiency during installation and maintenance.
- Applications: Ideal for a variety of electrical applications, ensuring reliable and durable connections in industrial, commercial, and residential settings.
Technical Specifications
| Wire Size | 1/0 AWG |
|---|---|
| Stud Size | 3/8" Stud |
| Color | Pink |
| Overall Length (L) | 101.7mm (4.01") |
| Neck Length (L1) | 65.5mm (2.58") |
| Barrel Length (L2) | 44.5mm (1.75") |
| Outer Diameter (D) | 18.4mm (0.73") |
| Inner Diameter (D1) | 13.0mm (0.51") |
| Hole Diameter (D2) | 10.2mm (0.40") |
| Width (B) | 29.8mm (1.18") |
| Hole Spacing (E) | 10.4mm (0.41") |
| Thickness (F) | 2.7mm (0.11") |
| Material | Tin-Plated Copper |
| Temperature Rating | 90°C |
| Voltage Rating | 35 KV |
| Max Amp Rating | 230A |
| UL Recognized | Yes |
| CE Certified | Yes |
| RoHS Compliant | Yes |
