2-Hole Copper Compression Lug 2 AWG, 1/4" Bolt, 1" Hole Spacing, Standard Barrel, Tin-Plated | 210-98046B
Shipping calculated at checkout
SKU: 210-98046B
1000 in stock
Open here
Goes with

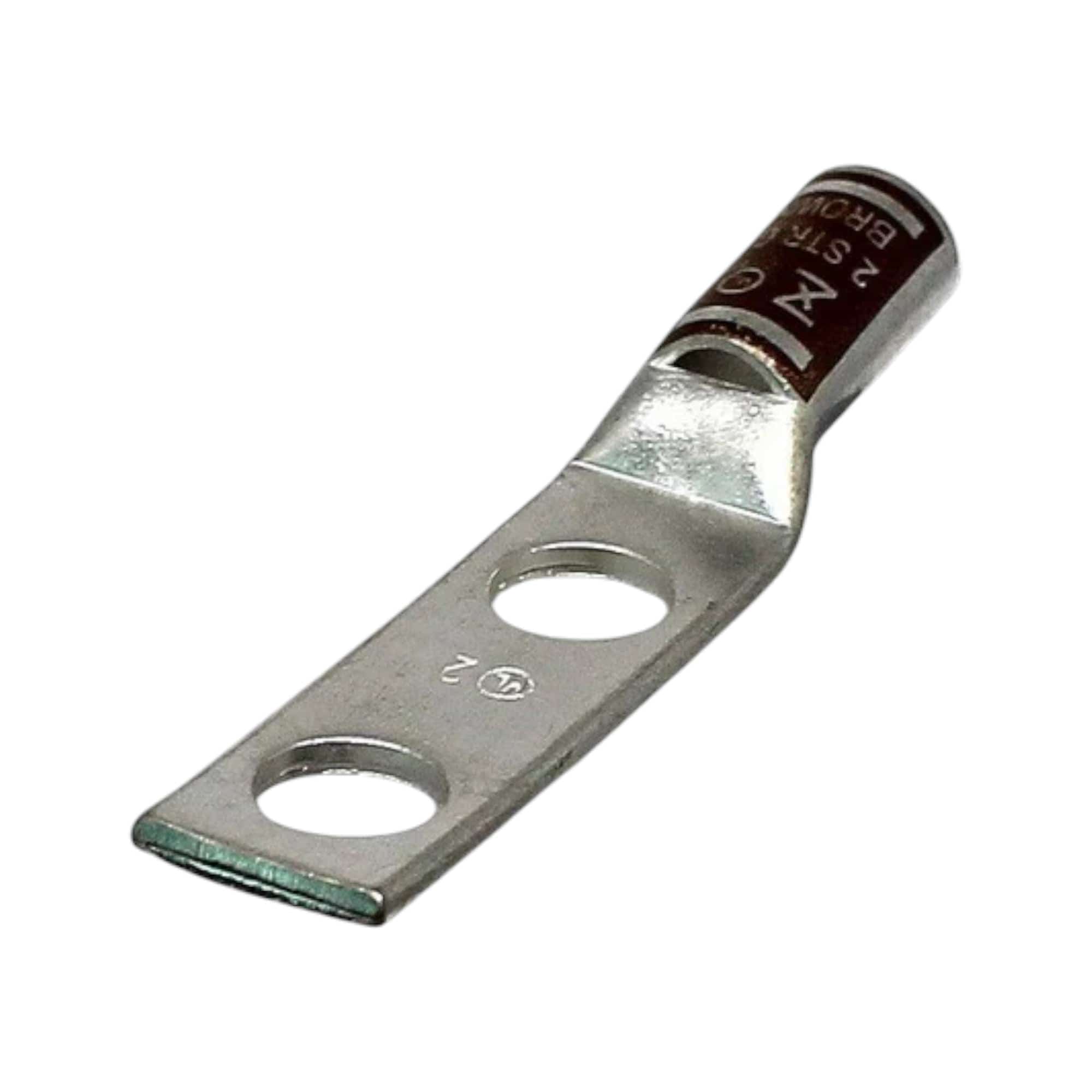

The Conversions Tech robust copper compression lug designed for a wide range of electrical applications. It accommodates a 2 AWG conductor size and features two holes with a 1/4-inch bolt size and 1-inch hole spacing, ensuring secure and efficient electrical connections. The lug includes a standard barrel and a built-in sight window for easy visual inspection. Its tin-plated finish enhances corrosion resistance, while the distinctive brown color code ensures quick identification and compatibility with standard color-coding systems. This lug guarantees reliable and long-lasting connections across various electrical applications.
Key Features
- Copper Construction – Ensures reliable electrical conductivity and long-lasting performance.
- 2 AWG Conductor Size – Designed specifically for 2 AWG wire, ideal for medium-sized conductors.
- 1/4-inch Bolt Size – Provides a standard bolt size for secure and stable attachment.
- 1-inch Hole Spacing – Features optimal hole spacing for a stable and efficient electrical connection.
- Standard Barrel – Offers a standard barrel for easy wire insertion and consistent compression.
- Sight Window – Allows for visual inspection of the crimped connection, ensuring proper installation.
-
Tin Plating & Brown Color Code – Tin plating enhances corrosion resistance, while the brown color code allows for quick identification and ensures compatibility with standard color-coding systems.
Technical Specifications
| Material | Seamless Electro-Tin Plated Copper |
|---|---|
| Color | Brown |
| Overall Length | 2.598 Inches |
| Barrel Length | 0.625 Inch |
| Conductor Material | Copper |
| Voltage Rating | 35 kV |
| Conductor Size | 2 AWG |
| Stud Size | 1/4 Inch |
| Die Index | I-33 |
| Pad Size | 1.687 Inches Length x 0.599 Inches Width x 0.109 Inches Thickness |
| Pad Holes | 2 |
| Pad Hole Spacing | 1 Inch |
| Barrel Type | Standard |
| Inner Diameter | 0.312 Inch |
| Outer Diameter | 0.421 Inch |
| Cable Entry | Chamfered Type |
Specifications
| Part Number | 210-98046B |
| Category | Electrical connector |
| Weight | 0.12 lb (est.) |
| HS Code | 8536.90.4000 |
Direct Cross-Reference — Two-Hole NEMA (1.75″ centers), 2 AWG, 1/4 Inch stud
CT P/N 210-98046B is a dimensional and electrical equivalent replacement for:
| Manufacturer | Part Number |
|---|---|
| Burndy (Hubbell) | YA2C2N |
| Panduit | LCC2-12 * |
| NSI Industries | L2NP |
* Cross derived from manufacturer part-numbering pattern; verify against datasheet for critical applications. All trademarks are property of their respective owners and are used for compatibility identification only. Conversions Tech products meet the same UL 486A dimensional and electrical standards at stocked, ships same day pricing.
