Long Barrel Compression Lug 2/0 AWG 1/2" Bolt | 90°C Copper
Shipping calculated at checkout
SKU: 210-09858
560 in stock
Open here

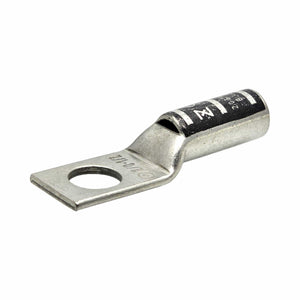

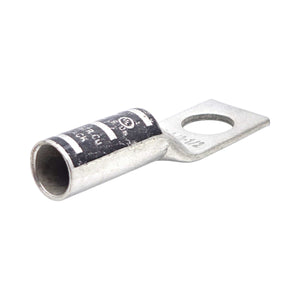

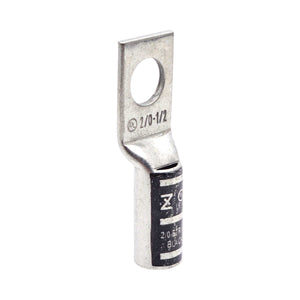

The Conversions Tech long barrel compression lug terminates 2/0 AWG copper conductors in power distribution panels, industrial machinery, construction projects, and renewable energy systems. The seamless electro-tin plated copper construction provides conductivity and corrosion resistance for high-current terminations.
Specifications
- Material: Seamless electro-tin plated copper
- Conductor size: 2/0 AWG
- Stud size: 1/2 inch
- Barrel type: Long barrel
- Barrel length: 1.5 inches
- Overall length: 2.771 inches
- Pad holes: 1
- Pad dimensions: 0.875 in (L) × 0.811 in (W) × 0.125 in (Thk)
- Insulation ID/OD: 0.437 in (ID) × 0.562 in (OD)
- Barrel entry: Chamfered
- Color code: Black
- Voltage rating: 35 kV
- Temperature rating: 90°C
- Die index: I-45
Cross-Reference
Equivalent to long barrel one-hole compression lugs from major manufacturers. Used in same applications as Burndy, Panduit, and Ilsco 2/0 AWG long barrel lugs at lower cost.
FAQ
What crimping tool die index is required?
Use die index I-45 for proper crimp compression. Verify your crimping tool manufacturer supports this die index for 2/0 AWG long barrel lugs.
Is this lug rated for 90°C conductor ampacity?
Yes. The 90°C temperature rating matches standard 75°C and 90°C copper conductor ampacities per NEC Table 310.16 when installed in equipment rated 90°C.
Can this lug be used on compact stranded conductor?
Yes. The chamfered barrel entry accommodates compact stranded 2/0 AWG copper. Strip conductor to full 1.5 inch barrel depth for maximum contact surface and pull-out strength.
Specifications
| Part Number | 210-09858 |
| Category | Electrical connector |
| Weight | 0.35 lb |
| HS Code | 8536.90.4000 |
Direct Cross-Reference — One-Hole Long Barrel, 2/0 AWG, 1/2 Inch stud
CT P/N 210-09858 is a dimensional and electrical equivalent replacement for:
| Manufacturer | Part Number |
|---|---|
| Burndy (Hubbell) | YA26 |
All trademarks are property of their respective owners and are used for compatibility identification only. Conversions Tech products meet the same UL 486A dimensional and electrical standards at stocked, ships same day pricing.
Why Pros Buy Direct from Conversions Tech
Engineered in the USA. Our U.S.-based engineering team designs and specifies our core product lines, and every product we carry — designed in-house or built to our exact specifications by certified partner factories — is quality-verified before it ships. UL/CSA listed where required, NEC compliant.
Cross-reference savings. Direct equivalents to Burndy, Hubbell, and other OEM part numbers at up to 30% less — same specs, same certifications, without the big-brand markup.
Real technical support. Need a torque spec, die reference, or an OEM quote? You’ll speak directly with the Conversions Tech engineering desk — not a script reader — for instant answers, custom kitting, and private-label options.
Fast US fulfillment. Orders in by 2PM ET ship same day from our US warehouse, nationwide ground and expedited.
