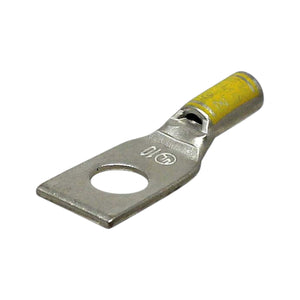

Copper Short Barrel One Hole Compression Lugs 10 AWG 1/4 Bolt Size
Shipping calculated at checkout
SKU: 210-09802
Out of stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here
The Conversions Tech Compression Lug is a reliable and durable solution for a wide range of electrical applications. Designed for 10 AWG conductors with a 1/4-inch bolt size, its long barrel ensures enhanced connectivity and stability. The tin-plated finish provides excellent corrosion resistance, ensuring longevity in various environments. The yellow color code simplifies identification, promoting quick and efficient installations. With its robust construction and versatile design, this lug is ideal for use in power distribution panels, industrial machinery, construction projects, and more, providing a secure and stable connection for long-lasting performance.
Key Features
-
Seamless Electro-Tin Plated Copper: High-quality construction for enhanced conductivity and corrosion resistance.
-
Yellow Color: Facilitates quick and efficient identification during installations.
-
1.569 Inch Overall Length: Provides ample space for secure conductor termination.
-
0.812 Inch Barrel Length: Long barrel design for optimal performance and stability.
-
35 kV Voltage Rating: Suitable for a wide range of voltage applications.
-
10 AWG Conductor Size: Accommodates various conductor sizes for versatility.
-
1/4 Inch Stud Size: Compatible with standard 1/4-inch stud sizes for easy installation.
-
I-21 Die Index: Precision die index for consistent and reliable crimping.
-
0.562 Inch L X 0.374 Inch W X 0.093 Inch Thk Pad Size: Adequate pad size for secure connections.
-
1 Pad Hole: Designed for a single conductor termination for simplicity.
-
Long Barrel Type: Ideal for applications requiring an extended barrel for enhanced connectivity.
-
0.179 Inch ID X 0.272 Inch OD Size: Precise insulation dimensions for effective electrical insulation.
-
Chamfered Barrel Entry: Facilitates easy and smooth conductor insertion.
- Temperature Rating 90 Deg C: Suitable for applications with moderate temperature requirements.
Technical Specifications
| Material | Seamless Electro-Tin Plated Copper |
|---|---|
| Color | Yellow |
| Overall Length | 1.569 Inch |
| Barrel Length | 0.812 Inch |
| Conductor Material | Copper |
| Voltage Rating | 35 kV |
| Conductor Size | 10 AWG |
| Stud Size | 1/4 Inch |
| Die Index | I-21 |
| Pad Size | 0.562 Inch L x 0.374 Inch W x 0.093 Inch Thk |
| Pad Holes | 1 |
| Barrel Type | Long Barrel |
| Insulation ID/OD | 0.179 Inch ID x 0.272 Inch OD |
| Barrel Entry | Chamfered |
| Temperature Rating | 90 Deg C |
