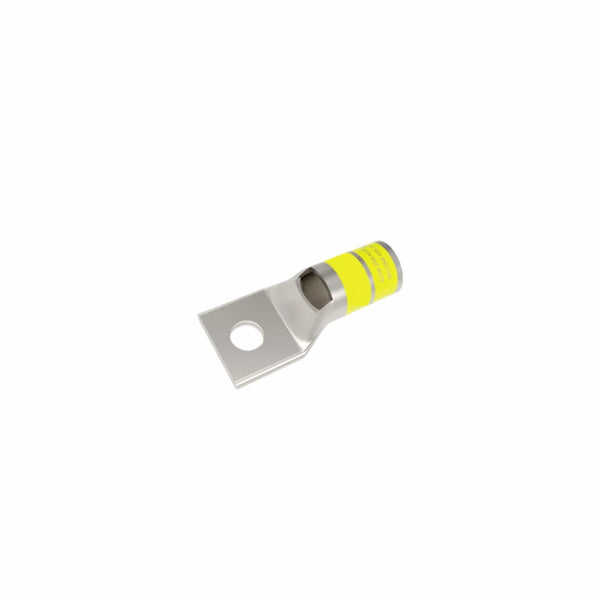

Copper Short Barrel One Hole Compression Lug 250 MCM | 5/16" Stud, 35
Shipping calculated at checkout
SKU: 210-98033
1000 in stock
Open here
The Conversions Tech Copper Short Barrel One Hole Compression Lug is engineered for terminating 250 MCM copper conductors in industrial and commercial electrical systems. The short barrel profile reduces overall footprint for crowded termination cabinets, switchgear, and control enclosures where space is constrained. Electro-tin plating provides oxidation resistance for long-term reliability in standard indoor and outdoor electrical installations.

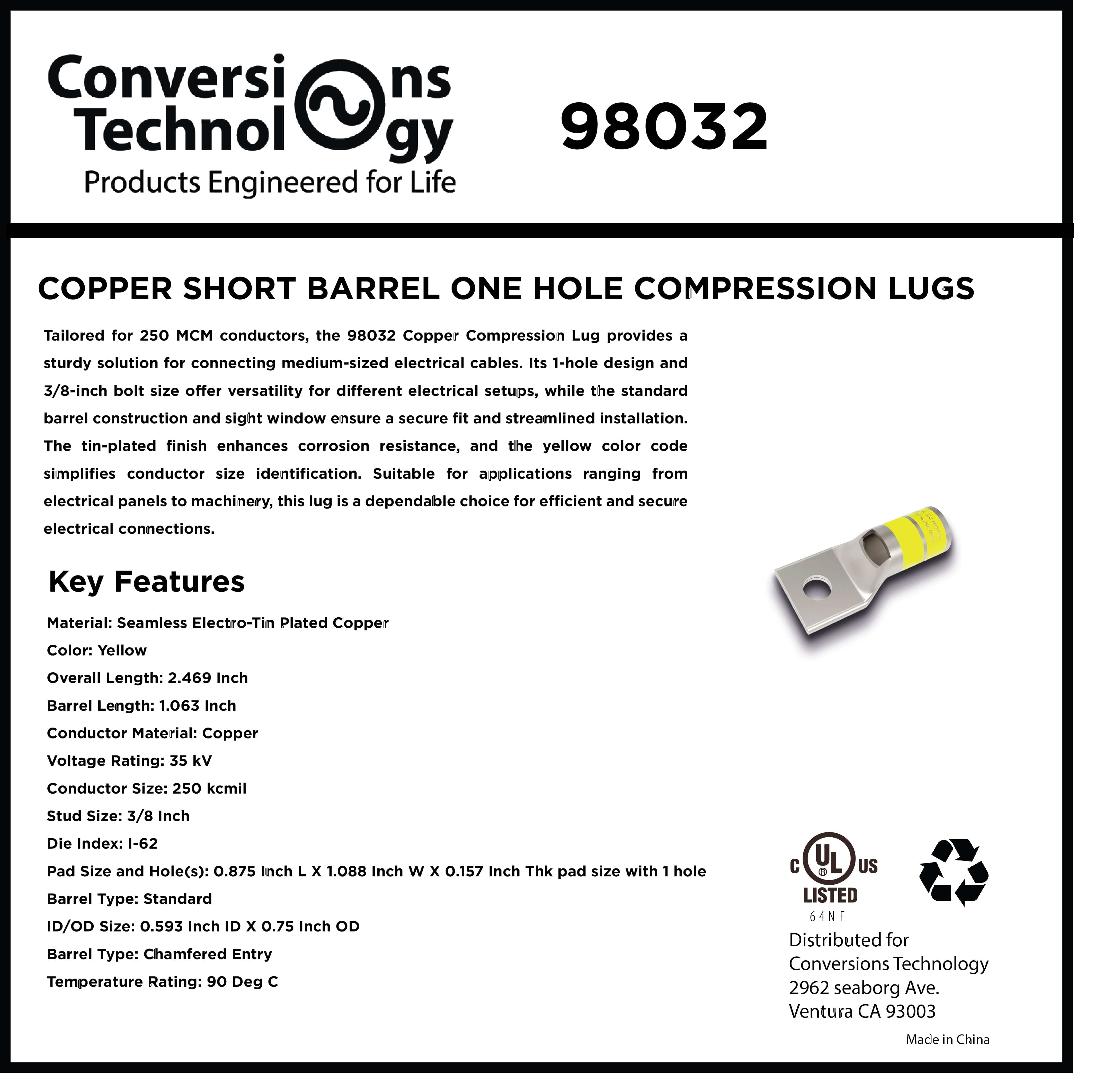

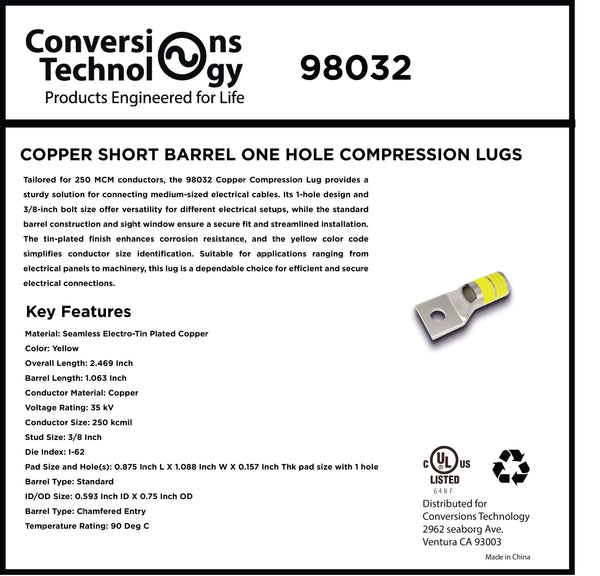

Specifications
- Material: Seamless electro-tin plated copper
- Color: Yellow (visual identification)
- Conductor size: 250 MCM copper
- Stud size: 5/16 inch

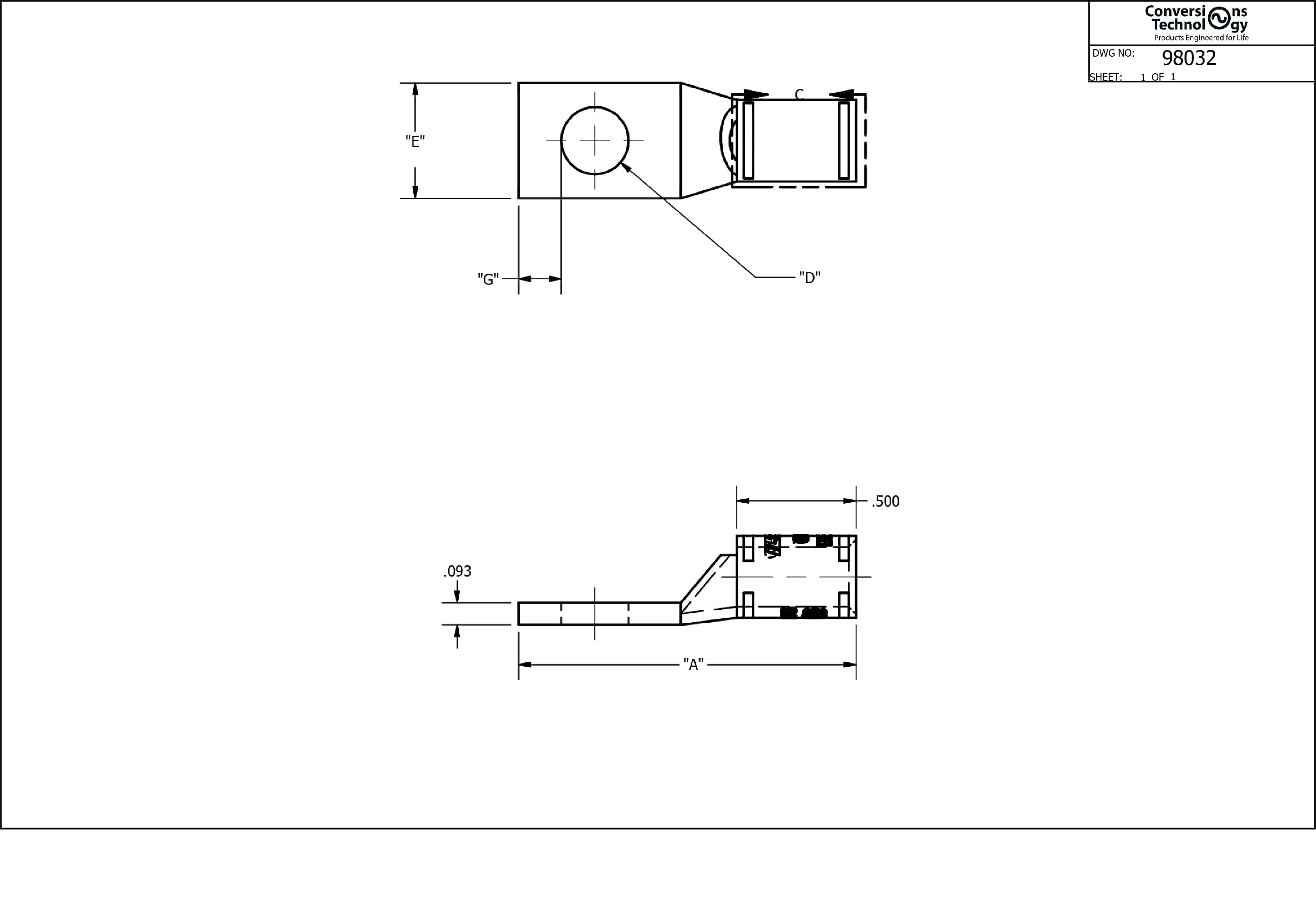

- Overall length: 2.469 inch
- Barrel length: 1.063 inch
- Barrel type: Standard
- ID/OD: 0.593 inch ID x 0.75 inch OD
- Barrel entry: Chamfered entry
- Pad dimensions: 0.875 inch L x 1.088 inch W x 0.157 inch thick
- Pad holes: 1 hole
- Voltage rating: 35 kV
- Temperature rating: 90°C
- Die index: I-62
Cross-Reference
Equivalent to short barrel one-hole compression lugs from major manufacturers including Burndy, Panduit, and Thomas & Betts, offering comparable electrical performance and dimensional specifications at reduced procurement cost.
FAQ
What crimping tool die should I use with this lug?
Use die index I-62 with compatible compression tools. Verify proper die alignment and full compression cycle per tool manufacturer instructions.
Is this lug rated for 90°C conductor ampacity?
Yes, the 90°C temperature rating supports full ampacity of 250 MCM copper conductors per NEC ampacity tables when installed in properly rated enclosures and conditions.
Can this lug be used in wet locations?
The electro-tin plating provides corrosion resistance; however, suitability for wet locations depends on overall enclosure rating and installation method. Verify compliance with NEC Article 312 and specific job specifications.
Specifications
| Part Number | 210-98033 |
| Category | Electrical connector |
| Weight | 0.6 lb (est.) |
| HS Code | 8536.90.4000 |
