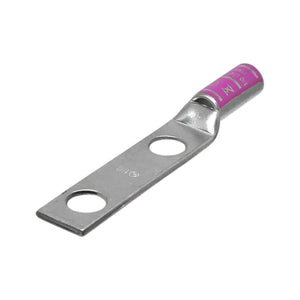

Copper Long Barrel Two Hole Compression Lugs 1/0 AWG 1/2-inch Bolt Size

Availability:
1000 in stock, ready to be shipped
Original price $2.27 - Original price $2.27
Original price
$2.27
$2.27 - $2.27
Current price $2.27
Request Distributor or Volume Pricing
SKU 210-98097A

The Conversions Technology Copper Compression Lug is expertly designed for 1/0 conductor size, offering exceptional performance in demanding electrical applications. Featuring a long barrel for enhanced stability and two holes with 1-3/4 inch spacing, it provides versatile installation options for a wide range of setups. Its tin-plated finish not only ensures superior durability but also optimizes conductivity, making this lug a reliable choice for environments that require both strength and efficiency. Whether for high-performance or heavy-duty applications, this lug guarantees long-lasting, dependable connections.

Key Features

  • Optimized for 1/0 AWG Conductors: Ensures precise and secure connections.
  • 1/2 Inch Bolt Size & 1-3/4 Inch Hole Spacing: Facilitates easy installation and broad compatibility.
  • Long Barrel Design: Enhances stability and electrical conductivity.
  • Durable Tin-Plated Copper Construction: Combats corrosion and boosts conductivity.
  • High-Temperature Tolerance: Designed to withstand temperatures up to 90°C, suitable for various environments.
  • Compact and Lightweight Design: Ideal for applications where space and weight are critical considerations.
  • Resistance to Mechanical Wear: Offers long-lasting performance in environments subject to frequent use or harsh conditions.

Technical Specifications

Wire Size 1/0 AWG
Stud Size 1/2"
Color Pink
Overall Length (L) 109.3mm (4.31")
Neck Length (L1) 73.2mm (2.88")
Neck Length (L2) 44.5mm (1.75")
Outer Diameter (D) 18.4mm (0.73")
Inner Diameter (D1) 13.0mm (0.51")
Hole Diameter (D2) 10.2mm (0.40")
Width (B) 29.8mm (1.18")
Hole Spacing (E) 13.0mm (0.51")
Thickness (F) 2.7mm (0.11")
Material Tin-Plated Copper
Temperature Rating 90°C
Voltage Rating 35 KV
Max Amp Rating 230A
UL Recognized Yes
CE Certified Yes
RoHS Compliant Yes
