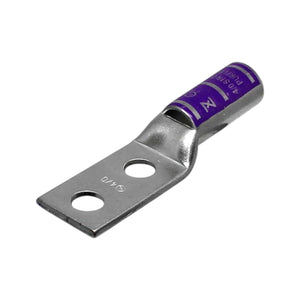

Copper Long Barrel Two Hole Compression Lugs 4/0 AWG 1/4-inch Bolt Size

The Conversions Technology durable copper compression lug is designed for secure and efficient electrical connections with 4/0 AWG conductors. Featuring a long barrel, dual holes, and a1/4-inch bolt size, this tin-plated lug ensures reliable performance. The distinctive purple color code aids in easy identification, making it ideal for various high-performance electrical applications.

Key Features

• Electro Tin Plated Seamless Copper Material: Provides durable and efficient conductivity for electrical connections.
• Purple Color: Facilitates easy identification in electrical installations.
• 4.991 Inch Overall Length: Offers a compact and versatile size for various applications.
• 1.5 Inch Barrel Length: Ensures secure and reliable connections for 4/0 AWG conductors.
• 35 Kilovolt Voltage Rating: Suitable for applications requiring higher voltage capabilities.
• 4/0 AWG Conductor Size: Accommodates larger conductors for diverse electrical setups.
• 1/4 Inch Stud Size: Provides flexibility in installation options, accommodating different stud sizes.
• I-54 Die Index: Indicates compatibility with specific crimping tools for proper installation.
• 3 Inch Length x 0.999 Inch Width x 0.141 Inch Thickness Pad Size: Offers a suitable surface for conductor attachment.
• 2 Pad Holes with 1-3/4 Inch Pad Hole Spacing: Allows for versatile and secure conductor connections.
• Long, Chamfered Entry Barrel Type: Enhances suitability for different applications with a long barrel design and easy cable entry.
• 0.546 Inch Inner Diameter x 0.687 Inch Outer Diameter: Specifies dimensions for compatibility with various cable sizes.
• Temperature Rating 90 Degrees Celsius: Suitable for applications with higher temperature requirements.
