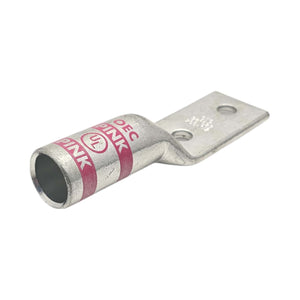

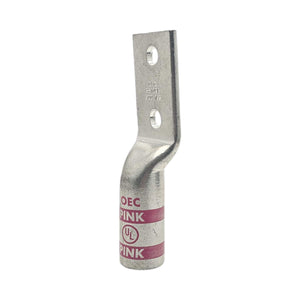

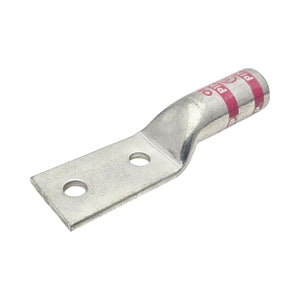

Copper Long Barrel Two Hole Compression Lugs 750 MCM 1/2-inch Bolt Size

These Copper Long Barrel Two Hole Compression Lugs are engineered for heavy-duty electrical connections, providing secure, long-lasting reliability in demanding applications. Constructed from premium copper with a sleek black finish for corrosion resistance and easy identification, these lugs deliver exceptional conductivity and are ideal for 750 MCM wires, with a 1/2-inch bolt size. The long barrel design allows for a solid crimp, ensuring a secure, high-performance connection that reduces the risk of failure or overheating.

Key Features

• Material: Electro Tin Plated Copper for enhanced conductivity and corrosion resistance
• Configuration: 2-Hole Compression Lug for secure and stable termination
• Stud Size: 1/2 inch for compatibility with standard electrical hardware
• Stud Hole Spacing: 1-3/4 inches for flexible installation
• Conductor Size: 700 MCM Stranded (Code) to support large conductors
• Barrel Type: Long for durability and stability
• Cable Entry Type: Chamfered, Beveled Entry for easy cable insertion
• Wire Strip Length: 2-15/16 inches for convenient conductor preparation
• Temperature Rating: 90°C to handle diverse environmental conditions
• Inspection Window: None, catering to specific installation preferences
