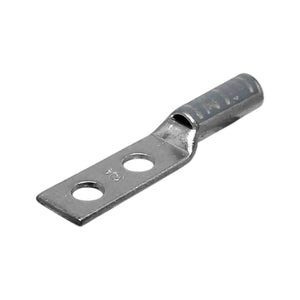

Copper Long Barrel Two Hole Compression Lugs 4 AWG #10-inch Stud Size
Shipping calculated at checkout
SKU: 210-98086
Out of stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here
The Conversions Tech 2-Hole Copper Compression Lug designed for conductor size 4. With a #10-inch bolt size, 2 holes, and 1-inch hole spacing, this tin-plated lug, featuring a gray color code, ensures secure and efficient electrical connections in various applications.
Key Features
- Designed for 4 AWG conductors - Specifically made to accommodate 4 AWG gauge cables, ensuring a secure and reliable connection.
- #10 bolt size - Compatible with #10 bolts, ensuring stable and reliable attachment.
- Two holes for connection - Provides versatility for different installation setups, allowing multiple attachment points.
- 1-inch hole spacing - Ensures precise alignment for a secure electrical connection.
- Tin-plated finish - Offers excellent corrosion resistance, enhancing durability and conductivity.
- Gray color code - Easily identifiable for quick and accurate conductor size identification during installation.
-
Reliable and efficient connection - Ensures secure, stable electrical connections across a range of applications.
Technical Specifications
| Material | Seamless Electro-Tin Plated Copper |
|---|---|
| Color | Gray |
| Overall Length | 2.796 Inches |
| Barrel Length | 1.125 Inches |
| Conductor Material | Copper |
| Voltage Rating | 35 kV |
| Conductor Size | 4 AWG |
| Stud Size | #10 Inch |
| Die Index | I-29 |
| Pad Size | 1.437 Inch L x 0.486 Inch W x 0.093 Inch Thk |
| Pad Holes | 2 |
| Pad Hole Spacing | 1 Inch |
| Barrel Type | Long Barrel, Chamfered Entry |
| Inner Diameter | 0.25 Inch |
| Outer Diameter | 0.343 Inch |
| Temperature Rating | 90°C |
