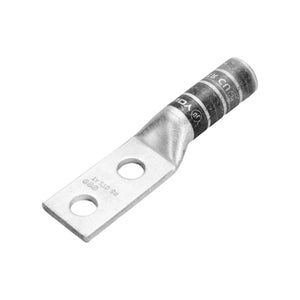

Copper Long Barrel Two Hole Compression Lugs 4 AWG 1/4-inch Bolt Size
Shipping calculated at checkout
SKU: 210-98086D
Out of stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here
This Conversions Tech copper compression lug is a reliable solution for conductor connections, featuring a long barrel design for stability and tin-plated construction for enhanced durability. The 1/4-inch bolt size and 1-inch hole spacing provide versatility in wiring configurations, while the gray color code allows for easy identification. With no sight window, this lug is suitable for applications where a secure and robust electrical connection is essential.
Key Features
- Long barrel design - Provides stability and ensures a strong, reliable connection for the conductor.
- Tin-plated construction - Enhances durability by offering corrosion resistance, ensuring long-term performance in demanding environments.
- 1/4-inch bolt size - Compatible with standard bolt sizes, allowing for stable attachment to components.
- 1-inch hole spacing - Provides flexibility for various wiring configurations, ensuring precise alignment during installation.
- Gray color code - Easily identifiable for quick and accurate conductor size identification.
- No sight window - Maintains a sleek, functional design while ensuring the integrity of the connection.
-
Reliable electrical connection - Ideal for applications where secure and robust electrical connections are required.

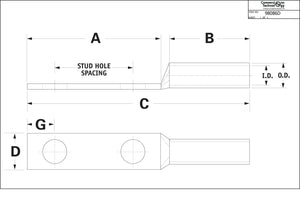

Technical Specifications
| Material | Seamless Electro-Tin Plated Copper |
|---|---|
| Color | Gray |
| Overall Length | 2.796 Inches |
| Barrel Length | 1.125 Inches |
| Conductor Material | Copper |
| Voltage Rating | 35 kV |
| Conductor Size | 4 AWG |
| Stud Size | 1/4 Inch |
| Die Index | I-29 |
| Pad Size | 1.437 Inch L x 0.486 Inch W x 0.093 Inch Thickness |
| Pad Holes | 2 |
| Pad Hole Spacing | 1 Inch |
| Barrel Type | Long Barrel, Chamfered Entry |
| Inner Diameter | 0.25 Inch |
| Outer Diameter | 0.343 Inch |
| Temperature Rating | 90°C |
