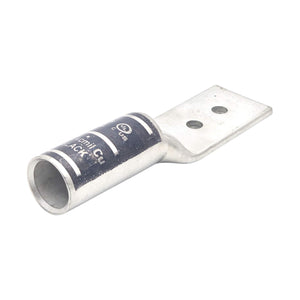

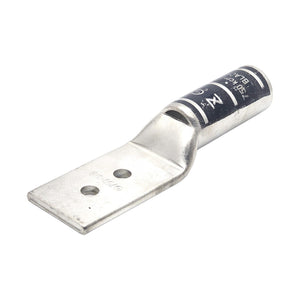

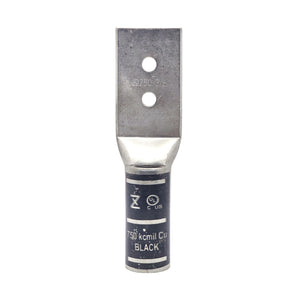

Copper Long Barrel Two Hole Compression Lugs 750 MCM 3/8-inch Bolt Size

The Conversions Technology 2-Hole Compression Lug is a reliable electrical connector designed for superior conductivity. Built for 750 MCM conductors, it features a 2-hole configuration, a 3/8-inch bolt size, and a long barrel to ensure secure and efficient connections. The tin-plated finish enhances corrosion resistance and durability. While it lacks a sight window, the black color code provides a sleek, professional appearance, making this lug an excellent choice for applications that demand both performance and a clean, reliable installation.

Key Features

• Material: Constructed from seamless electro-tin plated copper, ensuring excellent conductivity and corrosion resistance for long-term reliability.
• Color: Black color code for easy identification and compliance with industry standards.
• Length and Barrel Size: Overall Length: 5.714 inches; Barrel Length: 2.875 inches. Long barrel design provides flexibility and accommodates various conductor sizes.
• Conductor Size and Stud Size: Conductor Size: 750 MCM; Stud Size: 3/8 inch. Suitable for connecting large conductors, ensuring efficient power transfer.
• Voltage Rating: Rated for a voltage of 35 kV, suitable for high-voltage applications.
• Pad Size and Hole Spacing: Pad Size: 1.937 inches L x 1.901 inches W x 0.282 inches Thk
• 2 Pad Holes with 1 inch Pad Hole Spacing: Providing a secure mounting option.
• Die Index: I-106 Die Index ensures compatibility with appropriate crimping tools for proper installation.
• Barrel Type: Chamfered entry on the barrel enhances ease of conductor insertion, streamlining the installation process.
• ID x OD: Inner Diameter (ID): 1.031 inches; Outer Diameter (OD): 1.313 inches, providing precise dimensions for secure connections.
• Temperature Rating: Rated for a temperature of 90°C, suitable for a range of operating conditions.
