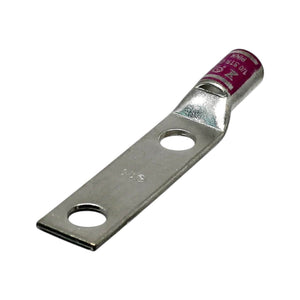

Copper Short Barrel Two Hole Compression Lugs 1/0 AWG 3/8-inch Bolt Size

The Copper Compression Lug is a durable and high-performance connector designed for the secure termination of 1/0 AWG conductors. With a 3/8-inch bolt size and 2-hole configuration, it provides a strong, stable connection ideal for a range of electrical applications. The standard barrel design allows for easy crimping, while the sight window ensures proper installation by providing clear visibility during the crimping process. The tin-plated finish enhances corrosion resistance, and the distinctive pink color code allows for quick and easy identification, making it a reliable and efficient choice for electrical connections in demanding environments.

Key Features

• Seamless Electro-Tin Plated Copper Material: High-quality construction for reliable electrical conductivity and corrosion resistance.

• Pink Color: Distinctive pink color code for quick identification in electrical systems.

• 3.043 Inch Overall Length: Optimal size for versatile use in various electrical applications.

• 0.75 Inch Barrel Length: Balanced barrel length for secure conductor termination.

• Conductor Material: Copper: Utilizes copper, a highly conductive and durable material.

• 35 kV Voltage Rating: Suitable for applications with higher voltage requirements.

• 1/0 AWG Conductor Size: Accommodates 1/0 AWG wire size for diverse wiring needs.

• 3/8 Inch Stud Size: Compatible with standard 3/8-inch stud sizes for ease of installation.

• I-42 Die Index: Designated die index for efficient and precise crimping.

• 1.937 Inch L X 0.738 Inch W X 0.125 Inch Thk Pad Size: Appropriate pad dimensions for secure electrical connections.

• 2 Pad Hole(S): Dual pad holes for flexibility in conductor termination.

• 1 Inch Pad Hole Spacing: Standardized spacing for consistent and organized installations.

• Standard Barrel Type: Conforms to the industry standard barrel design for compatibility.

• Size 0.39 Inch ID X 0.515 Inch OD: Specific inner and outer diameters for precise connections.

• Barrel Type Chamfered Entry: Facilitates smooth and easy wire insertion during installation.

• Temperature Rating 90 Deg C: Suitable for applications with elevated temperature requirements.
