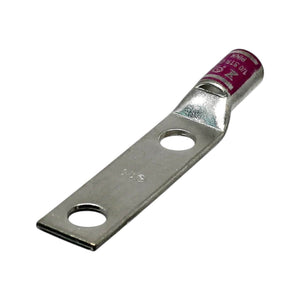

Copper Short Barrel Two Hole Compression Lugs 1/0 AWG 5/16-inch Bolt Size

The Copper Compression Lug is a robust and high-performance connector designed for the secure termination of 1/0 AWG conductors. With a 5/16-inch bolt size and 2-hole configuration, it provides a stable and reliable electrical connection for a wide range of applications. The standard barrel design ensures easy crimping, while the sight window allows for visual inspection during installation, guaranteeing a secure crimp every time. Its tin-plated finish enhances corrosion resistance, and the distinctive pink color code ensures quick and easy identification, making this lug an ideal choice for efficient, long-lasting electrical connections.

Key Features

• Seamless Electro Tin Plated Copper Material: High-quality construction for reliable electrical conductivity and corrosion resistance.

• Pink Color: Distinctive pink color code for quick identification in electrical systems.

• 2.793 Inch Overall Length: Optimal size for versatile use in various electrical applications.

• 0.75 Inch Barrel Length: Balanced barrel length for secure conductor termination.

• Conductor Material: Copper: Utilizes copper, a highly conductive and durable material.

• 35 kV Voltage Rating: Suitable for applications with higher voltage requirements.

• 1/0 AWG Conductor Size: Accommodates 1/0 AWG wire size for diverse wiring needs.

• 5/16 Inch Stud Size: Compatible with standard 5/16-inch stud sizes for ease of installation.

• I-42 Die Index: Designated die index for efficient and precise crimping.

• 1.687 Inch L X 0.738 Inch W X 0.125 Inch Thk Pad Size: Appropriate pad dimensions for secure electrical connections.

• 2 Pad Hole(S): Dual pad holes for flexibility in conductor termination.

• 7/8 Inch Pad Hole Spacing: Standardized spacing for consistent and organized installations.

• Standard Barrel Type: Conforms to the industry standard barrel design for compatibility.

• Inner Diameter 0.39 Inch: Specific inner diameter for precise connections.

• Outer Diameter 0.515 Inch: Specific outer diameter for precise connections.

• Chamfered Type Cable Entry: Facilitates smooth and easy wire insertion during installation.
