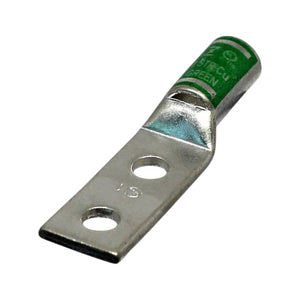

Copper Short Barrel Two Hole Compression Lugs 1 AWG 5/16-inch Bolt Size

This copper compression lug offers a reliable solution for various electrical applications, providing flexibility with its 5/16-inch bolt size and 1-inch hole spacing. The standard barrel design, complemented by a sight window, ensures both easy and secure connections. The tin-plated finish enhances corrosion resistance, ensuring long-term durability. Its distinctive green color code allows for quick and easy identification, making this lug a durable, user-friendly choice for a wide range of electrical systems. Ideal for high-performance, long-lasting connections, it ensures reliability in diverse environments.

Key Features

• Seamless Electro Tin Plated Copper Material: High-quality construction for reliable electrical conductivity and corrosion resistance.
• Green Color: Distinctive green color code for quick identification in electrical systems.
• 2.892 Inch Overall Length: Optimal size for versatile use in various electrical applications.
• 0.625 Inch Barrel Length: Balanced barrel length for secure conductor termination.
• Conductor Material: Copper: Utilizes copper, a highly conductive and durable material.
• 35 kV Voltage Rating: Suitable for applications with higher voltage requirements.
• 1 AWG Conductor Size: Accommodates 1 AWG wire size for diverse wiring needs.
• 5/16 Inch Stud Size: Compatible with standard 5/16-inch stud sizes for ease of installation.
• I-37 Die Index: Designated die index for efficient and precise crimping.
• 1.937 Inch L X 0.673 Inch W X 0.109 Inch Thk Pad Size: Appropriate pad dimensions for secure electrical connections.
• 2 Pad Hole(S): Dual pad holes for flexibility in conductor termination.
• Inner Diameter 0.359 Inch: Specific inner diameter for precise connections.
• Outer Diameter 0.468 Inch: Specific outer diameter for precise connections.
• Chamfered Type Cable Entry: Facilitates smooth and easy wire insertion during installation.
