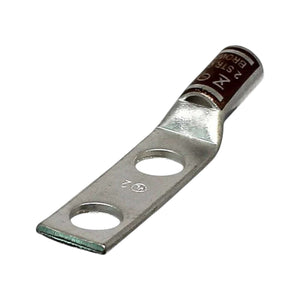

Copper Short Barrel Two Hole Compression Lugs 2 AWG 3/8-inch Bolt Size

The Copper Compression Lug is a robust and reliable connector designed for demanding electrical applications. Engineered to accommodate 2 AWG conductors, it features a 2-hole configuration with a 3/8-inch bolt size and 1-inch hole spacing, ensuring a strong and stable connection. The standard barrel design allows for efficient crimping, while the sight window provides visual confirmation during installation, ensuring a secure crimp every time. With a tin-plated finish for corrosion resistance and a distinctive brown color code for easy identification, this lug guarantees secure, long-lasting electrical connections in a wide range of applications.

Key Features

• Seamless Electro-Tin Plated Copper Material: High-quality construction for reliable electrical conductivity and corrosion resistance.

• Brown Color: Distinctive brown color code for quick identification in electrical systems.

• 2.848 Inch Overall Length: Optimal size for versatile use in various electrical applications.

• 0.625 Inch Barrel Length: Balanced barrel length for secure conductor termination.

• Conductor Material: Copper: Utilizes copper, a highly conductive and durable material.

• 35 kV Voltage Rating: Suitable for applications with higher voltage requirements.

• 2 AWG Conductor Size: Accommodates 2 AWG wire size for diverse wiring needs.

• 3/8 Inch Stud Size: Compatible with standard 3/8-inch stud sizes for ease of installation.

• I-33 Die Index: Designated die index for efficient and precise crimping.

• 1.937 Inch L X 0.599 Inch W X 0.109 Inch Thk Pad Size: Appropriate pad dimensions for secure electrical connections.

• 2 Pad Hole(S): Dual pad holes for flexibility in conductor termination.

• 1 Inch Pad Hole Spacing: Standardized spacing for consistent and organized installations.

• Standard Barrel Type: Conforms to the industry standard barrel design for compatibility.

• Inner Diameter 0.312 Inch: Specific inner diameter for precise connections.

• Outer Diameter 0.421 Inch: Specific outer diameter for precise connections.

• Chamfered Type Cable Entry: Facilitates smooth and easy wire insertion during installation.

• Temperature Rating 90 Deg C: Suitable for applications with elevated operating temperatures.

Technical Specifications
