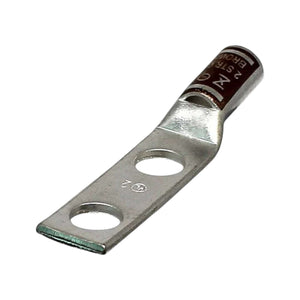

Copper Short Barrel Two Hole Compression Lugs 2 AWG 5/16-inch Bolt Size

The is a durable copper compression lug designed for electrical applications. It accommodates a 2 AWG conductor size and features two holes with a 5/16-inch bolt size and 3/4-inch hole spacing, ensuring secure and efficient electrical connections. The lug includes a standard barrel design, a sight window for easy inspection, and a tin-plated finish for enhanced durability and corrosion resistance. Its brown color code allows for quick identification, making it an excellent choice for various electrical setups.

Key Features

• SSeamless Electro Tin Plated Copper Material: High-quality construction for reliable electrical conductivity and corrosion resistance.

• Brown Color: Distinctive brown color code for quick identification in electrical systems.

• 2.598 Inch Overall Length: Optimal size for versatile use in various electrical applications.

• 0.625 Inch Barrel Length: Balanced barrel length for secure conductor termination.

• Conductor Material: Copper: Utilizes copper, a highly conductive and durable material.

• 35 kV Voltage Rating: Suitable for applications with higher voltage requirements.

• 2 AWG Conductor Size: Accommodates 2 AWG wire size for diverse wiring needs.

• 5/16 Inch Stud Size: Compatible with standard 5/16-inch stud sizes for ease of installation.

• I-33 Die Index: Designated die index for efficient and precise crimping.

• 1.687 Inch L X 0.599 Inch W X 0.109 Inch Thk Pad Size: Appropriate pad dimensions for secure electrical connections.

• 2 Pad Hole(S): Dual pad holes for flexibility in conductor termination.

• 3/4 Inch Pad Hole Spacing: Standardized spacing for consistent and organized installations.

• Standard Barrel Type: Conforms to the industry standard barrel design for compatibility.

• Inner Diameter 0.312 Inch: Specific inner diameter for precise connections.

• Outer Diameter 0.421 Inch: Specific outer diameter for precise connections.

• Chamfered Type Cable Entry: Facilitates smooth and easy wire insertion during installation.
