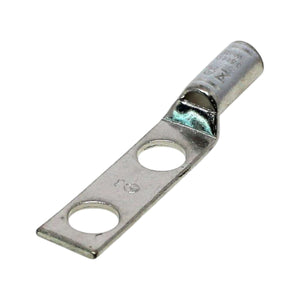

Copper Short Barrel Two Hole Compression Lugs 3 AWG 3/8-inch Bolt Size

The 2-Hole Copper Lug is a versatile and durable solution for connecting conductors up to 3 AWG, ideal for a wide range of electrical applications. Featuring a 3/8-inch bolt size, standard barrel design, and a 1-3/4-inch hole spacing, it ensures a secure and efficient connection. The white color code simplifies identification in complex wiring setups, while the sight window allows for easy visual inspection of the connection. Made from tin-plated copper, this lug is engineered for reliability and performance, providing safe and dependable electrical connections.

Item Features

• High Conductivity Material: Seamless Electro-Tin Plated Copper for enhanced conductivity and corrosion resistance.
• Versatile Conductor Size: Accommodates up to 3 AWG conductors, suitable for a range of applications.
• High Voltage Rating: With a 35 kV voltage rating, suitable for high-voltage applications.
• Sturdy Construction: Robust design for industrial applications, ensuring durability and performance.
• Two-Hole Design: Facilitates secure connections to multiple terminals or conductors.
• Standard Barrel Type: Ensures compatibility with various wiring setups and electrical components.
• Temperature Resilience: Temperature rating of 90°C, suitable for diverse environmental conditions.
• Chamfered Entry: Barrel type with chamfered entry for ease of conductor insertion.
• Pad Hole Spacing: 1-3/4 Inch pad hole spacing for flexibility in mounting and installation.
• Visual Inspection Window: Includes a sight window for visual inspection of the connection.
• Generous Pad Size: 3 Inch L X 1.189 Inch W X 0.152 Inch Thk pad size for stability in connections.
• Color-Coded Identification: White color code for easy visual identification in complex wiring setups.

Technical Specifications
