Copper Standard Barrel Two Hole Compression Lugs 6 AWG #10 Bolt Size, 25-Pack | 35
Shipping calculated at checkout
SKU: 210-98045C-25
40 in stock
Open here
Goes with

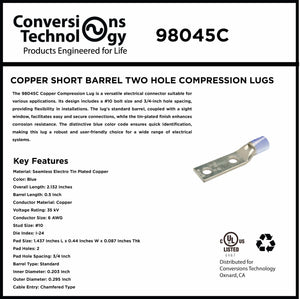

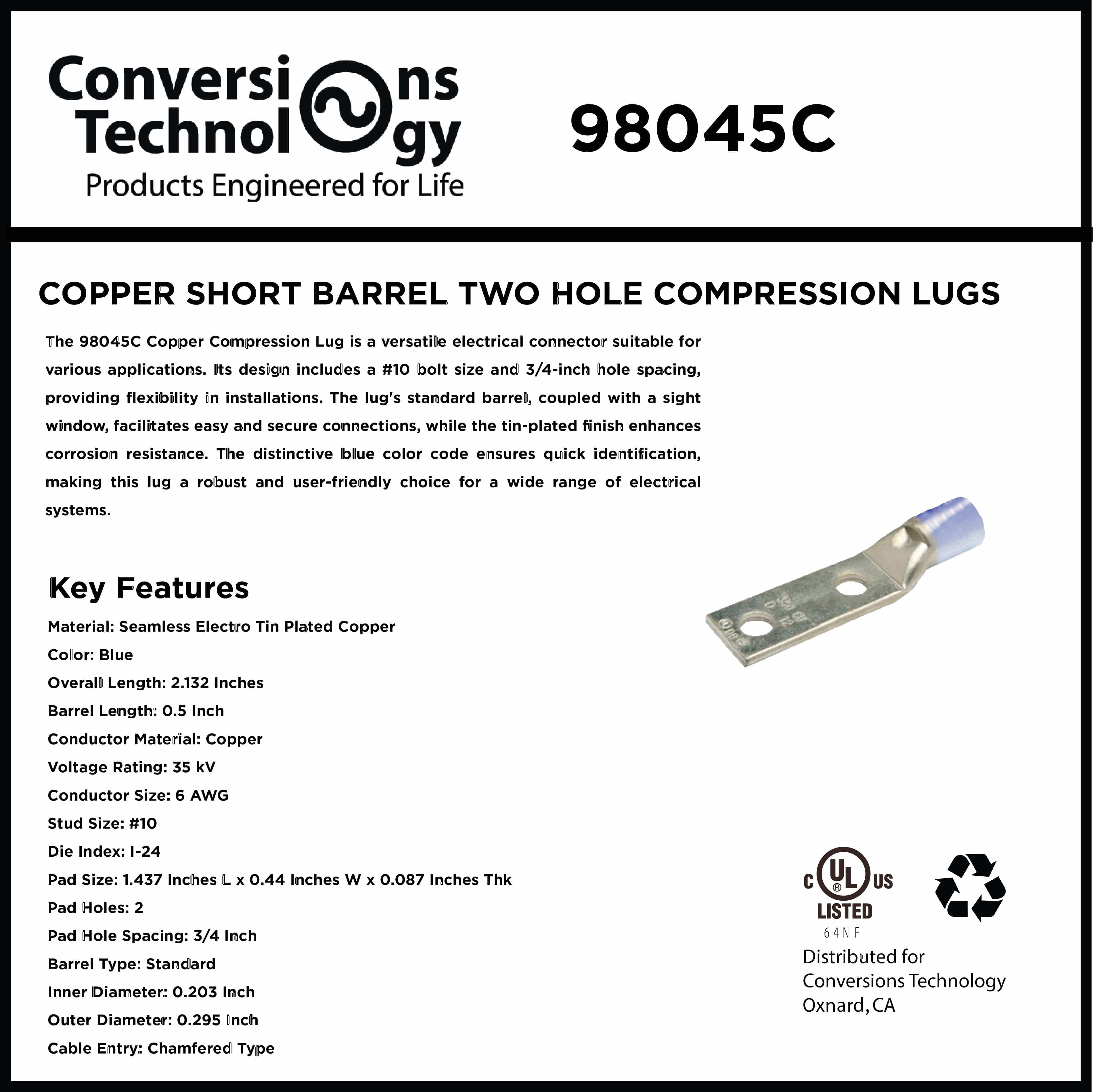

The Conversions Tech 6 AWG Copper Short Barrel Two-Hole Compression Lug is a dual-hole terminal connector engineered for secure, high-reliability electrical terminations in industrial and commercial power distribution systems. This lug terminates 6 AWG copper conductors to #10 stud terminals and busbars, with a two-hole pad configuration providing mechanical stability for vibration-prone environments. Typical applications include electrical panel grounding, power distribution blocks, renewable energy inverter connections, and control system terminations where visual verification of conductor seating is required.
| Specifications (dimensions per manufacturer UL data sheet) | |
| Part number | 210-98045C-25 |
| Manufacturer catalog number | ST610B |
| Conductor | 6 AWG copper, Class B stranded |
| Stud | #10 in, 2 hole, 0.75 in center spacing |
| Barrel | Short, 0.54 in (E), chamfered entry, inspection window |
| Overall length | 2.02 in (B) |
| Tongue width | 0.44 Inch |
| Tongue thickness | 0.087 Inch |
| Die | Index 24, Blue, one crimp |
| Material | Electrolytic copper, electro tin plated |
| Rating | UL 486A, cULus, 90 C, 600 V, 65 A at 75 C |
| Color code | Blue |
Specifications
- Material: Seamless electro-tin-plated copper
- Conductor size: 6 AWG
- Stud size: #10
- Pad holes: 2
- Pad hole spacing: ¾ in (19.05 mm)
- Pad dimensions: 1.437 in L × 0.44 in W × 0.087 in Thk
- Barrel type: Standard
- barrel length 0.54 in (12.7 mm)
- Inner diameter: 0.203 in (5.15 mm)
- Outer diameter: 0.295 in (7.49 mm)
- Overall length: 2.02 in (54.1 mm)
- Cable entry: Chamfered type
- Color code: Blue
- Voltage rating: 35 kV
- Die index: I-24
- Sight window: Yes
Cross-Reference
Equivalent to industry-standard two-hole compression lug form factors used in power distribution and grounding applications. Conversions Tech lugs deliver comparable electrical and mechanical performance to established brands at reduced procurement cost, with specifications verified by our US engineering team and production managed through certified partner facilities.
FAQ
What crimping die should be used with this lug?
Use die index I-24 for proper crimp geometry and UL-compliant terminations. Always verify conductor insertion through the sight window before crimping.
Is this lug suitable for outdoor installations?
The electro-tin-plated copper construction provides corrosion resistance for indoor and outdoor environments. Verify specific installation requirements against local code and application voltage ratings.
Why does this lug have two mounting holes?
The dual-hole pad with ¾-inch spacing provides rotational stability and resistance to loosening from vibration or thermal cycling, commonly required in industrial panels, transformers, and heavy equipment grounding.
Specifications
| Part Number | 210-98045C |
| Category | Electrical connector |
| Weight | 0.12 lb (est.) |
| HS Code | 8536.90.4000 |
Direct Cross-Reference — Two-Hole NEMA (1.75″ centers), 6 AWG, #10 stud
CT P/N 210-98045C is a dimensional and electrical equivalent replacement for:
| Manufacturer | Part Number |
|---|---|
| Burndy (Hubbell) | YA6C2N * |
| Panduit | LCC6-12 * |
| NSI Industries | L6N * |
* Cross derived from manufacturer part-numbering pattern; verify against datasheet for critical applications. All trademarks are property of their respective owners and are used for compatibility identification only. Conversions Tech products meet the same UL 486A dimensional and electrical standards at stocked, ships same day pricing.
