Copper Short Barrel Two Hole Compression Lugs 6 AWG 5/16 Bolt Size

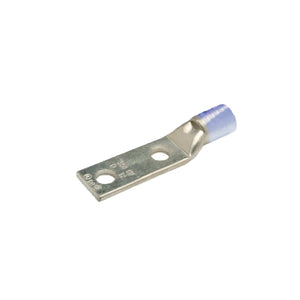

The 09916 Copper Compression Lug is a reliable and durable copper connector designed for electrical applications. Built for 6 AWG conductors, it features a 2-hole configuration, 5/16-inch bolt size, and 3/4-inch hole spacing, ensuring secure and stable electrical connections. The standard barrel design allows for easy crimping, while the sight window provides a clear visual inspection during installation to ensure a proper crimp. The tin-plated finish enhances corrosion resistance, and the distinctive blue color code ensures quick identification, making this lug an excellent choice for efficient, long-lasting electrical connections.

Key Features

• Seamless Electro-Tin Plated Copper Material: High-quality construction for reliable electrical conductivity and corrosion resistance.

• Blue Color: Distinctive blue color code for quick identification in electrical systems.

• 2.132 Inch Overall Length: Optimal size for versatile use in various electrical applications.

• 0.5 Inch Barrel Length: Balanced barrel length for secure conductor termination.

• Conductor Material: Copper: Utilizes copper, a highly conductive and durable material.

• 35 kV Voltage Rating: Suitable for applications with higher voltage requirements.

• 6 AWG Conductor Size: Accommodates 6 AWG wire size for diverse wiring needs.

• 5/16 Stud Size: Compatible with standard 5/16 stud sizes for ease of installation.

• I-24 Die Index: Designated die index for efficient and precise crimping.

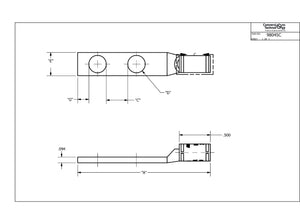

• 1.437 Inch L X 0.44 Inch W X 0.087 Inch Thk Pad Size: Appropriate pad dimensions for secure electrical connections.

• 2 Pad Hole(S): Dual pad holes for flexibility in conductor termination.

• 3/4 Inch Pad Hole Spacing: Standardized spacing for consistent and organized installations.

• Standard Barrel Type: Conforms to the industry standard barrel design for compatibility.

• Inner Diameter 0.203 Inch: Specific inner diameter for precise connections.

• Outer Diameter 0.295 Inch: Specific outer diameter for precise connections.

• Chamfered Type Cable Entry: Facilitates smooth and easy wire insertion during installation.
