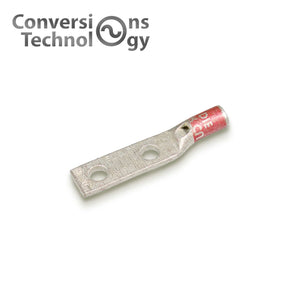

Copper Short Barrel Two Hole Compression Lugs 8 AWG #10 Bolt Size

The is a reliable copper compression lug designed for a wide range of electrical applications. It accommodates an 8 AWG conductor size and features 2 holes for secure fastening with #10 bolts, ensuring a strong connection. The lug includes a standard barrel with an integrated sight window, enabling efficient installation and visual inspection. Its tin-plated finish enhances corrosion resistance, while the red color code ensures easy identification and compatibility with standard color-coding systems. This lug guarantees durable and efficient performance in various electrical systems.

Key Features

• Copper Construction – Provides excellent electrical conductivity for reliable and efficient connections.
• 8 AWG Conductor Size – Specifically designed for 8 AWG wire, making it ideal for smaller electrical conductors.
• #10 Bolt Size – Features a standard #10 bolt size for secure and stable connections.
• Two-Hole Design – Dual holes ensure a more secure fastening and effective electrical connection.
• Standard Barrel – The standard barrel ensures easy wire insertion and consistent compression.
• Sight Window – Built-in sight window allows for quick visual inspection of the crimped connection for proper installation.
• Tin Plating & Red Color Code – Tin plating enhances corrosion resistance, while the red color code allows for quick identification and compatibility with standard color-coding systems.


Technical Specifications
