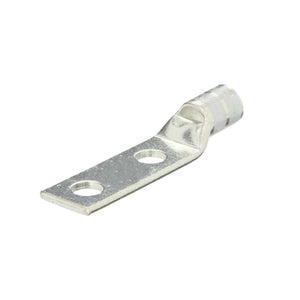

Copper Short Barrel Two Hole Compression Lugs 250 MCM 1/2-inch Bolt Size
Shipping calculated at checkout
SKU: 210-98056B
1000 in stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here
The Conversions Tech copper compression lug designed for reliable electrical connections, accommodating a 250 AWG conductor size. Featuring 2 holes, a 1/2-inch bolt size, a standard barrel, and a sight window, this tin-plated lug offers a secure and durable solution for various electrical applications. The distinctive white color code ensures easy identification, making it an ideal choice for demanding electrical systems.
Key Features
- Designed for 250 AWG conductors - Accommodates 250 AWG conductors, ensuring a secure and reliable electrical connection for medium to high-performance applications.
- Standard barrel design - Enhances connection stability and ensures efficient crimping for long-lasting, reliable performance.
- 1/2-inch bolt size - Compatible with 1/2-inch bolts, providing a strong and stable attachment to electrical components.
- Distinctive white color code - Simplifies identification, allowing for easy and accurate conductor size recognition during installation.
- Tin-plated finish - Provides excellent corrosion resistance, ensuring durability and optimal performance even in challenging environments.
- Sight window - Offers visual confirmation of a secure connection, adding extra assurance during installation and helping to ensure reliable electrical performance.
-
Ideal for various electrical applications - Perfect for industrial, commercial, and other high-performance electrical systems that require secure, long-lasting connections.
Technical Specifications
| Material | Seamless Electro-Tin Plated Copper |
|---|---|
| Color | White |
| Overall Length | 4.594 Inches |
| Barrel Length | 1.063 Inches |
| Conductor Material | Copper |
| Approval | UL 453G, UL 467, UL 486A/B, CSA |
| Voltage Rating | 35 kV |
| Conductor Size | 250 MCM |
| Stud Size | 1/2 Inch |
| Die Index | I-62 |
| Pad Size | 3 Inch Length x 1.088 Inch Width x 0.157 Inch Thickness |
| Pad Holes | 2 |
| Pad Hole Spacing | 1-3/4 Inch |
| Barrel Type | Standard |
| Insulation Size (ID/OD) | 0.593 Inch ID x 0.75 Inch OD |
| Barrel Entry Type | Chamfered |
| Temperature Rating | 90°C |
