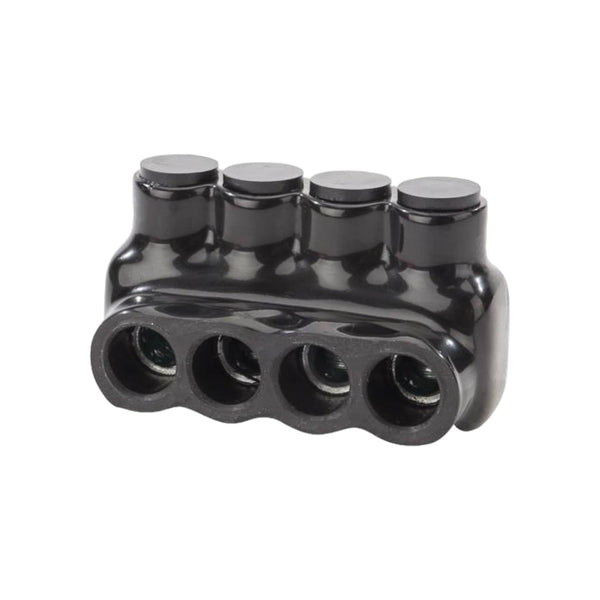

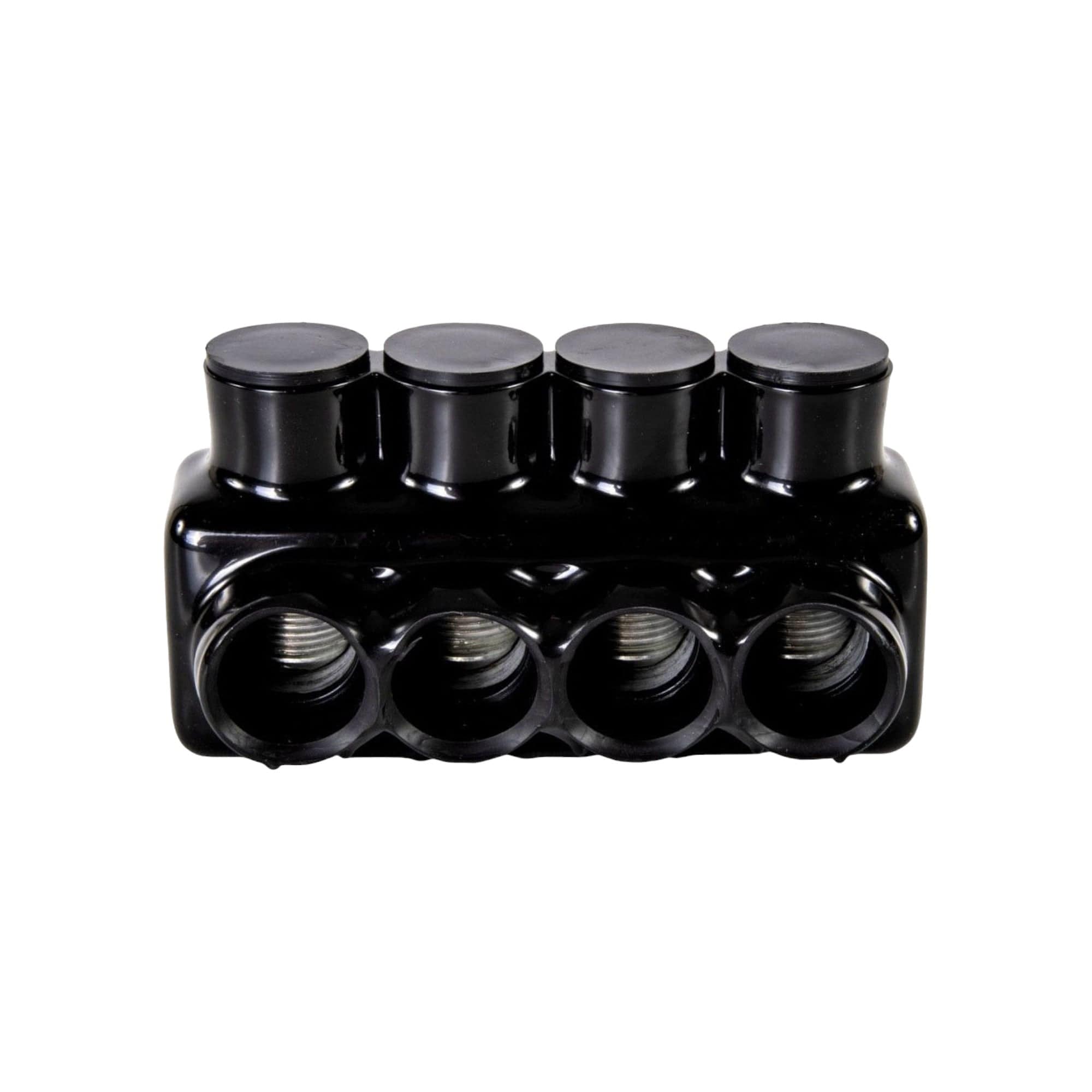

Insulated Tap Connectors 4 port single-side Entry 14 AWG - 1/0 AWG
Shipping calculated at checkout
SKU: 610-20040114
1000 in stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here
Insulated Tap Connector — 2-Conductor, Single-Side Entry (6 AWG–350 MCM), NEC 230.46
Conversions Tech Insulated Tap Connectors deliver high-pressure, low-resistance bonds for multi-conductor terminations. A rounded aluminum body and UV-resistant plastisol overmold improve handling and durability, while single-side entry streamlines installation for two conductors. Each port is pre-filled with oxide inhibitor and protected by removable plugs to keep out debris and moisture. Meets NEC Article 230.46 for line-side service equipment connections.
Key Features
- Secure connections: Adjustable set screws and rounded body generate high contact pressure with low mΩ resistance.
- One-side wire entry: Fast terminations for 2 conductors with single-side ports; suitable for 6 AWG–350 MCM.
- Code compliant: Conforms to NEC 230.46 for line-side service equipment connections.
- Ergonomic design: Smooth plastisol jacket + rounded profile for confident grip and reduced installer fatigue.
- Ingress protection: Removable plugs seal ports and set-screw cavities during handling and pull-in.
- Corrosion control: Ports pre-filled with oxide inhibitor gel stabilize contact resistance over life.
- Field durability: UV/abrasion/chemical-resistant plastisol withstands outdoor and industrial exposure.
Technical Specifications
| Conductor Count | 2 (single-side entry) |
|---|---|
| Wire Size Range | 6 AWG – 350 MCM |
| Connection Type | Set screw (mechanical) |
| Voltage Rating | 600 V |
| Insulation Material | Plastisol, UV-resistant |
| Body Material | Aluminum |
| Finish | Plastisol insulated (UV resistant) |
| Factory Fill | Oxide inhibitor gel (pre-filled ports) |
| Design Features | Single-sided entry; removable port & set-screw plugs |
| Certifications | cULus Listed; meets NEC 230.46 |
| UL Standard | UL 486A/B |
| Temperature Class | 90 °C, AL9CU |
Applications
- Residential service entrance & panel terminations
- Commercial building wiring & distribution equipment
- Industrial machinery, control panels, MCCs
- Power distribution networks & infrastructure
- HVAC equipment connections
- Automotive & marine electrical systems
- General machinery and equipment wiring
FAQs
Is this connector compliant with NEC 230.46?
Yes. It meets NEC Article 230.46 for line-side connections on service equipment when installed per local code and the manufacturer’s instructions.
What conductor range and count does it accept?
Two conductors via single-side entry, sized from 6 AWG through 350 MCM.
Does it include oxide inhibitor and protective plugs?
Yes. Each port is factory pre-filled with oxide inhibitor gel, and removable plugs protect the ports and set-screw cavities from debris and moisture.
What are the electrical ratings and standards?
Rated 600 V and 90 °C, AL9CU. cULus Listed to UL 486A/B; meets NEC 230.46.
