EMT Set Screw Connector - Zinc 1''
Shipping calculated at checkout
SKU: 3125-0001
1000 in stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here

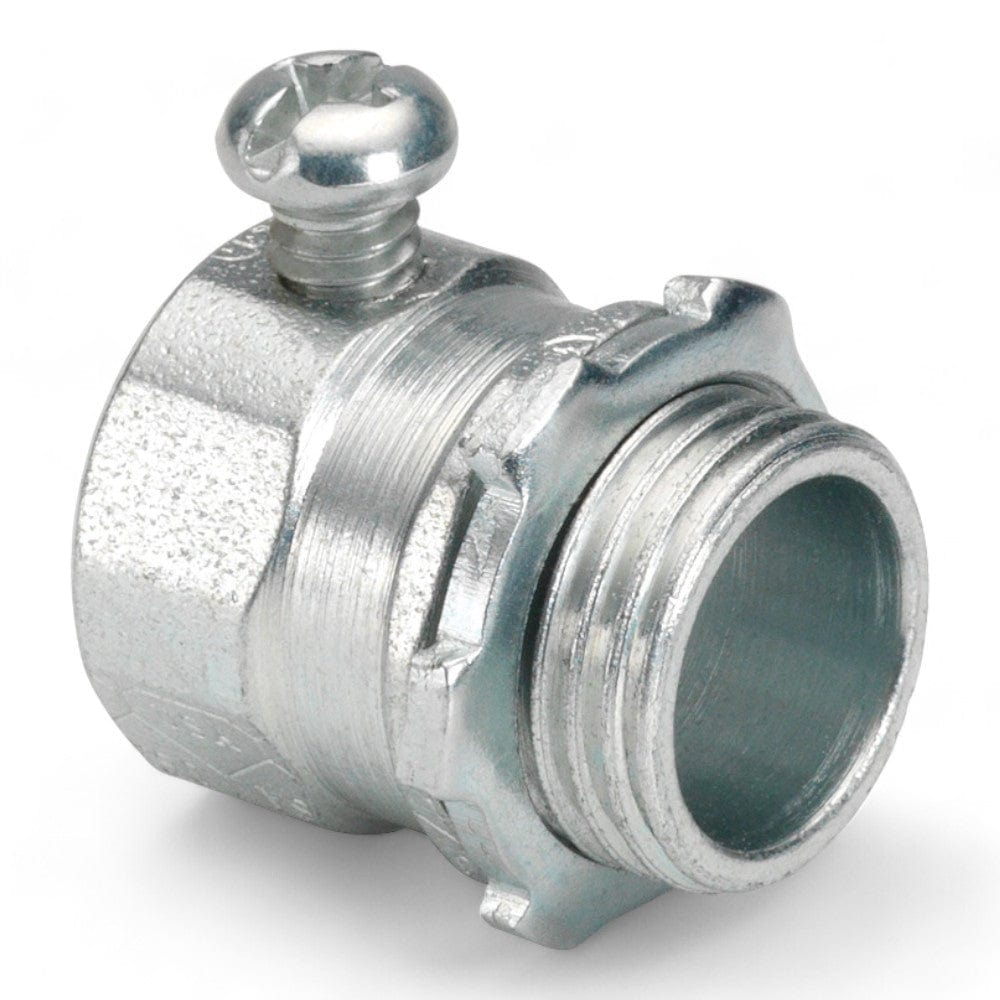

Conversions Tech 1” steel set screw connectors can be used to connect electrical metallic tubing to an electrical box or enclosure. When properly installed they create a concrete-tight seal.
SPECIFICATIONS:
Flexible Sizing: Set screw EMT steel connectors are available in trade sizes 1/2" to 4", meeting all of your EMT installation needs
Strong and Durable: Set screw EMT connectors are constructed from steel and then electroplated with zinc for both superior strength and excellent corrosion resistance
Set-Screw Design: Quick, reliable connections are as easy as tightening down the included set screw and then securing the connector’s locknut to a box knockout
Professional Performance: These set screw EMT steel connectors are UL Listed under File No. E24001
TECHNICAL DETAILS:
Material: Steel
Finish: Zinc Eletro-Plated
UL Standard: UL-514B
UL File No.: E24001
APPLICATION:
-
Used to connect EMT conduit to boxes or enclosures
-
Used in dry locations
-
Concrete-tight when taped
