10M/20M/50M/100M Pneumatic Tubing Pipe PU Polyurethane Tube Air Compressor Hose Line Fitting or Fluid Transfer 4MM 6MM 8MM 10MM
Shipping calculated at checkout
SKU: 14:201441572#Transparent 10m;183:202360809#10x6.5mm
In stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here
Conversions Tech Polyurethane (PU) Air Hose – High-Flex Pneumatic Tubing for Industrial & Automation Use
Type: Pneumatic Polyurethane Tube
Available Sizes: 4×2.5mm, 6×4mm, 8×5mm, 10×6.5mm, 12×8mm, 14×10mm, 16×12mm
Material: Premium PU (Polyurethane)
Maximum Pressure: 145 PSI (1.0 MPa)
Working Temperature: -4°F to 176°F (-20°C to 80°C)
The Conversions Tech PU Air Tube is a professional-grade pneumatic hose engineered for industrial automation, air tools, and laboratory applications. Manufactured using high-strength thermoplastic polyurethane, it offers superior flexibility, excellent elasticity memory, and long-term resistance to oil, wear, and aging. Perfect for precision pneumatic systems, this tube ensures consistent air delivery with minimal pressure loss.
Technical Characteristics
- Material: Polyurethane (PU) – flexible, lightweight, and impact-resistant.
- Compression Resistance: 0.8 MPa (8.5 kgf/cm²) at ambient temperature.
- Tensile Strength: 550 kg/cm² – superior elongation without deformation.
- Working Medium: Compressed Air or Vacuum (not suitable for other gases or liquids).
- Temperature Range: -4°F to 176°F (-20°C to +80°C).
- Maximum Working Pressure: 145 PSI (1.0 MPa).
- Elastic Memory: Restores original shape without permanent creases or cracks.
- Resistance: Excellent oil, abrasion, and chemical resistance with anti-aging properties.
- Color Options: Blue, Red, Black, Transparent, and Custom Colors available.

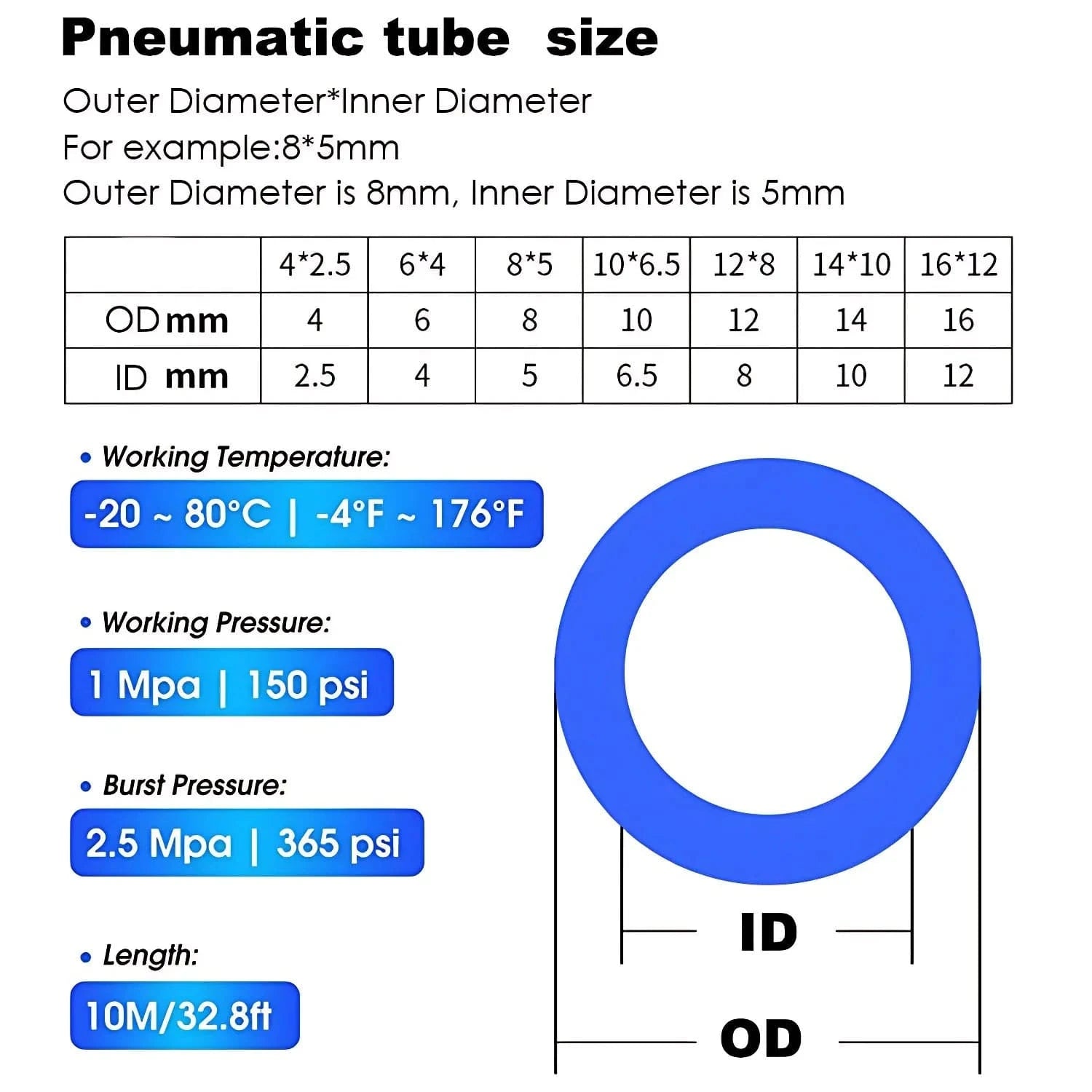

Dimensional Options
| Model Size | Outer Diameter (OD) | Inner Diameter (ID) | Wall Thickness | Max Pressure |
|---|---|---|---|---|
| 4×2.5mm | 4 mm | 2.5 mm | 0.75 mm | 145 PSI |
| 6×4mm | 6 mm | 4 mm | 1 mm | 145 PSI |
| 8×5mm | 8 mm | 5 mm | 1.5 mm | 145 PSI |
| 10×6.5mm | 10 mm | 6.5 mm | 1.75 mm | 145 PSI |
| 12×8mm | 12 mm | 8 mm | 2 mm | 145 PSI |
| 14×10mm | 14 mm | 10 mm | 2 mm | 145 PSI |
| 16×12mm | 16 mm | 12 mm | 2 mm | 145 PSI |
Applications
- Pneumatic tools and automation systems
- Robotic air and gas transfer lines
- Industrial machinery and instrumentation
- Vacuum systems and mechanical pipeline networks
- General-purpose air delivery and water distribution
Product Features
- ✔️ High Flexibility: Easily bends without creases or cracks.
- ✔️ Strong Elastic Memory: Returns to its original form after stretching or folding.
- ✔️ High Toughness: Withstands impact and torsional load without deformation.
- ✔️ Lightweight Design: Facilitates easy installation and movement.
- ✔️ Oil & Chemical Resistance: Suitable for industrial air and fluid environments.
- ✔️ Durable Finish: Smooth and glossy outer surface minimizes friction loss and dirt accumulation.
Note: This tubing is not intended for drinking water or human consumption. Always use under rated pressure and temperature for maximum service life. Exceeding these limits may cause rupture or premature wear.
Frequently Asked Questions (FAQs)
1. What is the main material of this PU tube?
The tube is made from high-quality thermoplastic polyurethane (PU), known for its superior elasticity, resilience, and chemical resistance.
2. What applications is this tubing suitable for?
Ideal for pneumatic tools, automation systems, air compressors, laboratory gas lines, and general industrial air piping systems.
3. Can it be used for water or drinking applications?
No. The PU air tube is not certified for potable water use and should not be used in any food-grade or drinking water system.
4. What is the maximum operating pressure?
The maximum working pressure is 145 PSI (1.0 MPa) under normal temperature conditions.
5. How does temperature affect pressure capacity?
As temperature rises, the tube’s pressure capacity should be proportionally reduced. Always operate within rated limits for safe long-term performance.
6. Does the tube resist oil and chemicals?
Yes. It has strong resistance to oils, weak acids, alkalis, and hydrolysis, making it ideal for industrial and pneumatic applications.
7. Is it suitable for vacuum systems?
Yes. The tubing can safely handle vacuum systems as well as standard compressed air flow lines.
8. What is meant by “elastic memory” in PU tubing?
Elastic memory refers to the tube’s ability to return to its original shape after stretching, coiling, or bending without permanent deformation.
9. What maintenance is required?
Inspect periodically for surface wear or deformation. Avoid excessive twisting or pulling, and replace immediately if any cracks or air leaks appear.
10. What colors are available?
Standard colors include blue, red, black, and transparent. Custom colors are available for bulk or OEM orders.
Technical Specifications Summary
| Product Name | PU Pneumatic Tube |
| Material | Thermoplastic Polyurethane (PU) |
| Sizes Available | 4×2.5mm, 6×4mm, 8×5mm, 10×6.5mm, 12×8mm, 14×10mm, 16×12mm |
| Working Pressure | 145 PSI (1.0 MPa) |
| Compression Resistance | 0.8 MPa at 20°C |
| Tensile Strength | 550 kg/cm² |
| Temperature Range | -4°F to 176°F (-20°C to +80°C) |
| Medium | Compressed Air / Vacuum |
| Applications | Pneumatic systems, robotics, automation, laboratory equipment |
| Surface Finish | Glossy smooth finish, anti-static coating |
