Fig 6 Irreversible Compression Connector 1/0-250 MCM | 600V 90°C UL467
Shipping calculated at checkout
SKU: 610-23154
1000 in stock
Open here

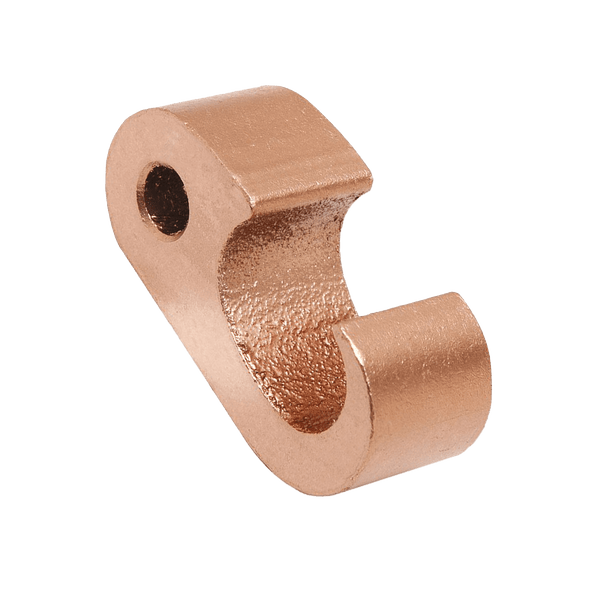

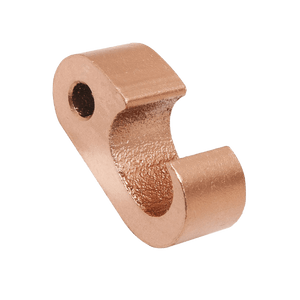

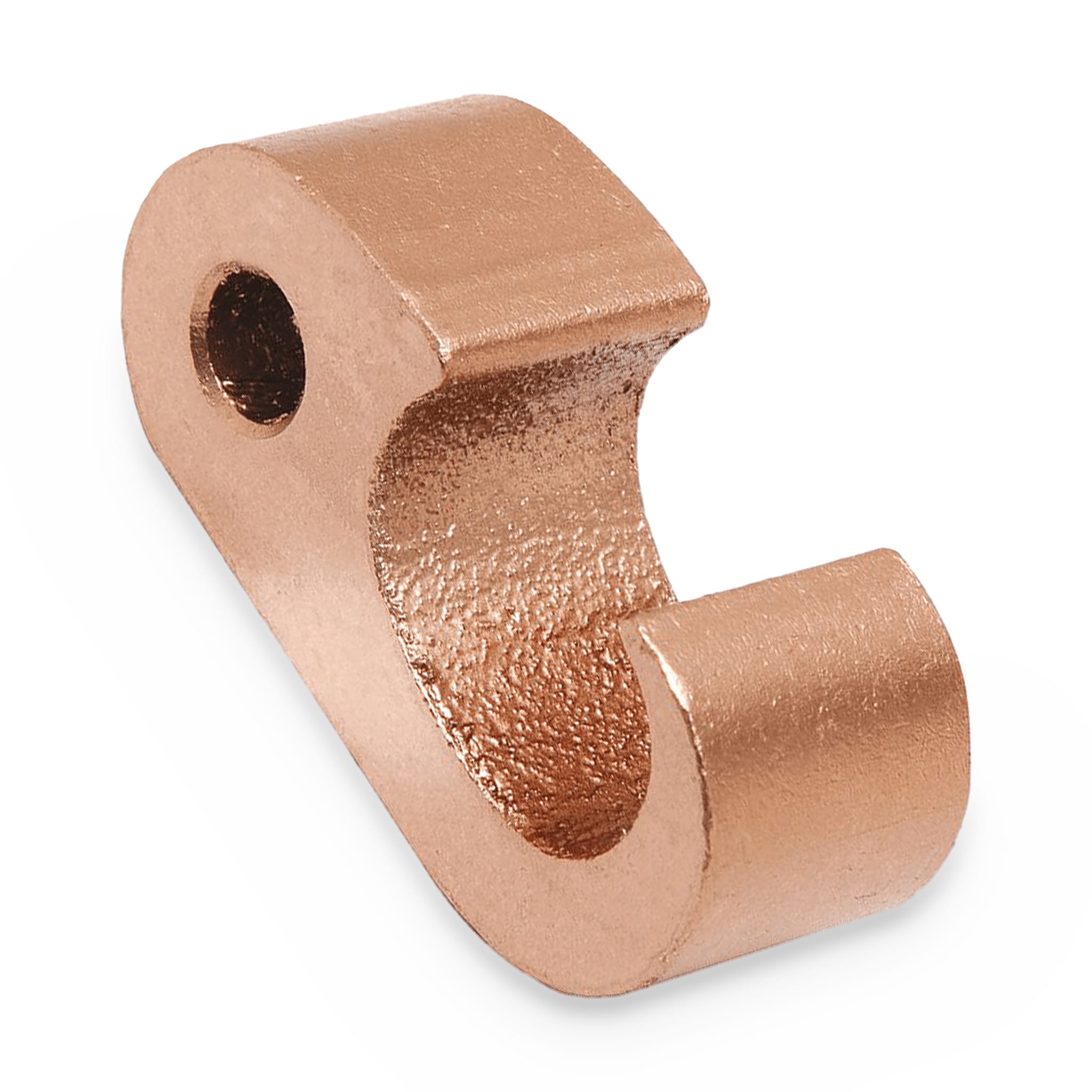

The Fig 6 Type Irreversible Compression Connector is a dual-conductor compression lug engineered for parallel conductor terminations in underground electrical distribution and lightning protection systems. Rated 600V and heat resistant to 90°C, this connector accommodates two continuous parallel conductors in the range of 1/0 AWG through 250 MCM (4-2 STR stranding) and is suitable for direct burial applications without additional encapsulation.
Specifications
- Conductor range: 1/0 AWG – 250 MCM (4-2 STR)
- Configuration: Two continuous parallel conductors
- Material: Copper alloy
- Voltage rating: 600 Volts
- Temperature rating: 90°C heat resistant
- Pre-filled with anti-oxidant compound
- UL 467 listed
- UL 96 listed for lightning protection
- Application: Direct burial
Cross-Reference
Equivalent to irreversible compression connectors offered by major electrical manufacturers for parallel conductor taps in underground secondary distribution. Provides comparable electrical and mechanical performance at reduced installed cost versus branded alternatives.
FAQ
What does "4-2 STR" mean for this connector?
4-2 STR refers to the stranding class of the conductor—specifically compact or compressed stranded cable with 4 to 2 strands per layer, common in 1/0 through 250 MCM copper and aluminum building wire. The connector barrel is sized to accept this stranding profile.
Is this connector rated for direct burial without a splice box?
Yes. The Fig 6 connector is specifically designed for direct burial applications and carries UL 467 listing for underground use. The copper alloy construction and pre-filled anti-oxidant inhibit corrosion in soil conditions.
Can I use this for lightning protection grounding?
Yes. The connector is UL 96 listed for lightning protection systems, making it suitable for bonding grounding electrodes to lightning conductors in accordance with NFPA 780.
Specifications
| Part Number | 610-23154 |
| Category | Electrical connector |
| Weight | 0.25 lb |
| HS Code | 8536.90.4000 |
Cross-Reference: 610-23154
| Brand | Part Number | Notes |
|---|---|---|
| Burndy | YGHC-C series | HYGROUND irreversible tap class, 1/0-250 kcmil run — match by run/tap range* |
| Conversions Tech | 610-23154 | stocked, ships same day |
*Cross by rod diameter, cable range, and UL 467 direct-burial listing - verify die index for your tooling. Trademarks belong to their owners.
See also ground rods and irreversible compression grounding. Contractor & distributor pricing →
