Copper Short Barrel One Hole Compression Lugs 2 AWG 5/16-inch Bolt Size
Shipping calculated at checkout
SKU: 210-98013
Out of stock
Open here

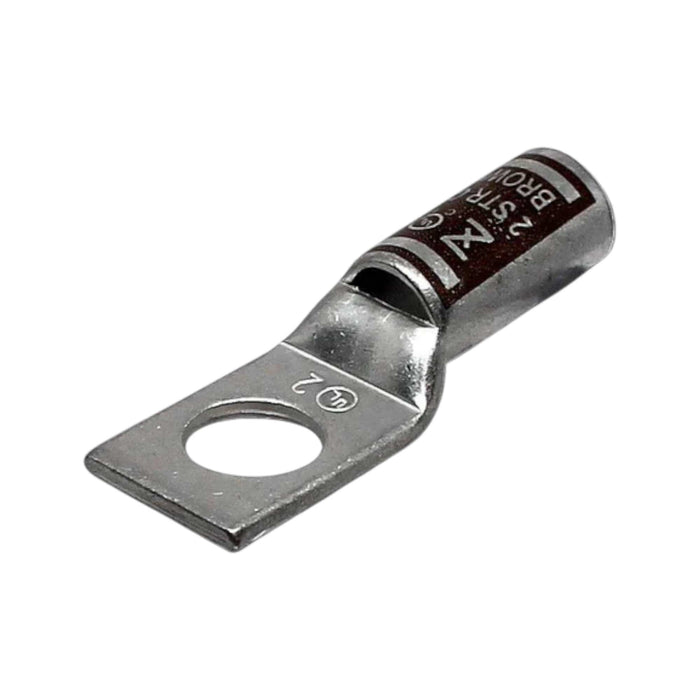

The Conversions Tech Copper Compression Lug by Conversions Tech is designed for high-performance in electrical systems, accommodating #2 AWG conductors. This lug is engineered with a 5/16-inch bolt size and a standard barrel that includes a sight window, streamlining installation and ensuring precise wire insertion. The durable tin-plated copper enhances conductivity and resists corrosion, while the brown color code facilitates easy identification during setups, making it a reliable choice for diverse electrical applications.
Key Features
- Conductor Size: Designed for #2 AWG conductors, ensuring secure and reliable connections for this wire gauge in electrical systems.
- Bolt Size: Features a 5/16-inch bolt size, providing a stable and strong mechanical connection to electrical systems.
- Standard Barrel: The standard barrel design ensures optimal conductor compression and mechanical retention, promoting a solid connection.
- Sight Window: Includes a sight window, simplifying installation by allowing for easy inspection of wire placement and ensuring precise wire insertion.
- Material: Made from tin-plated copper, offering excellent conductivity and corrosion resistance, ensuring durability and long-lasting performance even in demanding environments.
- Color Code: Brown color code for easy identification, helping to streamline installation and reduce errors.
-
Applications: Suitable for a wide range of electrical applications, including industrial, commercial, and residential systems, providing secure and efficient connections.
Technical Specifications
| Wire Size | 2 AWG |
|---|---|
| Stud Size | 5/16" Stud |
| Color | Brown |
| Overall Length (L) | 43.9mm (1.72") |
| Neck Length (L1) | 19.1mm (0.75") |
| Outer Diameter (D) | 15.9mm (0.63") |
| Inner Diameter (D1) | 10.8mm (0.42") |
| Hole Diameter (D2) | 8.5mm (0.35") |
| Width (B) | 20.3mm (0.33") |
| Hole Spacing (E) | 8.8mm (0.30") |
| Thickness (F) | 2.2mm (0.08") |
| Material | Tin-Plated Copper |
| Temperature Rating | 90°C |
| Voltage Rating | 35 KV |
| Max Amp Rating | 170A |
| UL Recognized | Yes |
| CE Certified | Yes |
| RoHS Compliant | Yes |
