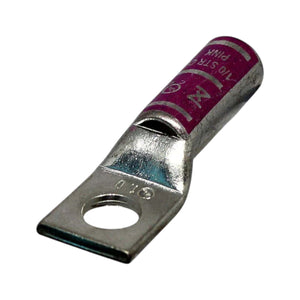

Long Barrel Copper Compression Lug 1/0 AWG 3/8" Stud | 35 kV, 90°C
Shipping calculated at checkout
SKU: 210-98069B
1000 in stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here
Long barrel one-hole compression lug for terminating 1/0 AWG copper conductors. Engineered for medium-voltage applications up to 35 kV with a 90°C temperature rating. The seamless electro-tin plated copper construction and extended 1.5-inch barrel length provide maximum crimping surface area for reliable electrical contact and mechanical pull-out strength. Pink color code enables quick conductor size identification in the field. Chamfered barrel entry facilitates wire insertion. Commonly used in utility substations, industrial power distribution, and commercial electrical installations requiring secure bolted connections.
Specifications
- Material: Seamless Electro-Tin Plated Copper
- Conductor Size: 1/0 AWG
- Stud Size: 3/8 inch
- Barrel Type: Long Barrel
- Barrel Length: 1.5 Inch
- Overall Length: 2.731 Inch
- Pad Size: 0.875 Inch L x 0.738 Inch W x 0.125 Inch Thk
- Pad Holes: 1
- Die Index: I-42
- Voltage Rating: 35 kV
- Temperature Rating: 90 Deg C
- Insulation ID/OD: 0.39 Inch ID x 0.515 Inch OD
- Barrel Entry: Chamfered
- Color Code: Pink
- Conductor Material: Copper
Cross-Reference
Equivalent to long barrel compression lugs offered by major manufacturers such as Burndy, Panduit, and Ilsco for 1/0 AWG applications. Die index I-42 compatibility ensures tooling alignment with industry-standard crimping equipment.
FAQ
What crimping tool die is required for this lug?
Die index I-42. Verify your crimping tool manufacturer's die chart to confirm compatibility with long barrel lugs rated for 1/0 AWG conductor.
Is this lug rated for medium-voltage applications?
Yes. The 35 kV voltage rating and 90°C temperature rating support medium-voltage installations when properly applied per NEC and utility standards.
Does the long barrel design affect installation?
The 1.5-inch barrel length requires a compatible crimping tool with adequate throat depth. The extended barrel provides more crimping surface area for improved electrical and mechanical performance compared to standard barrel designs.
