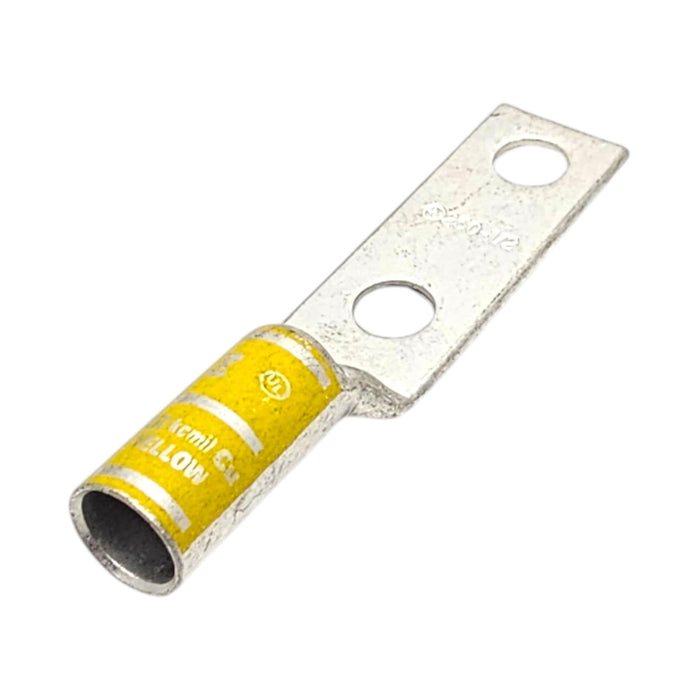

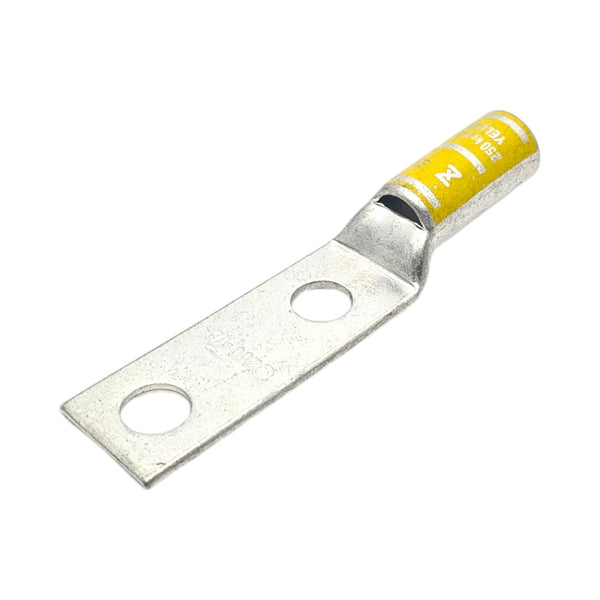

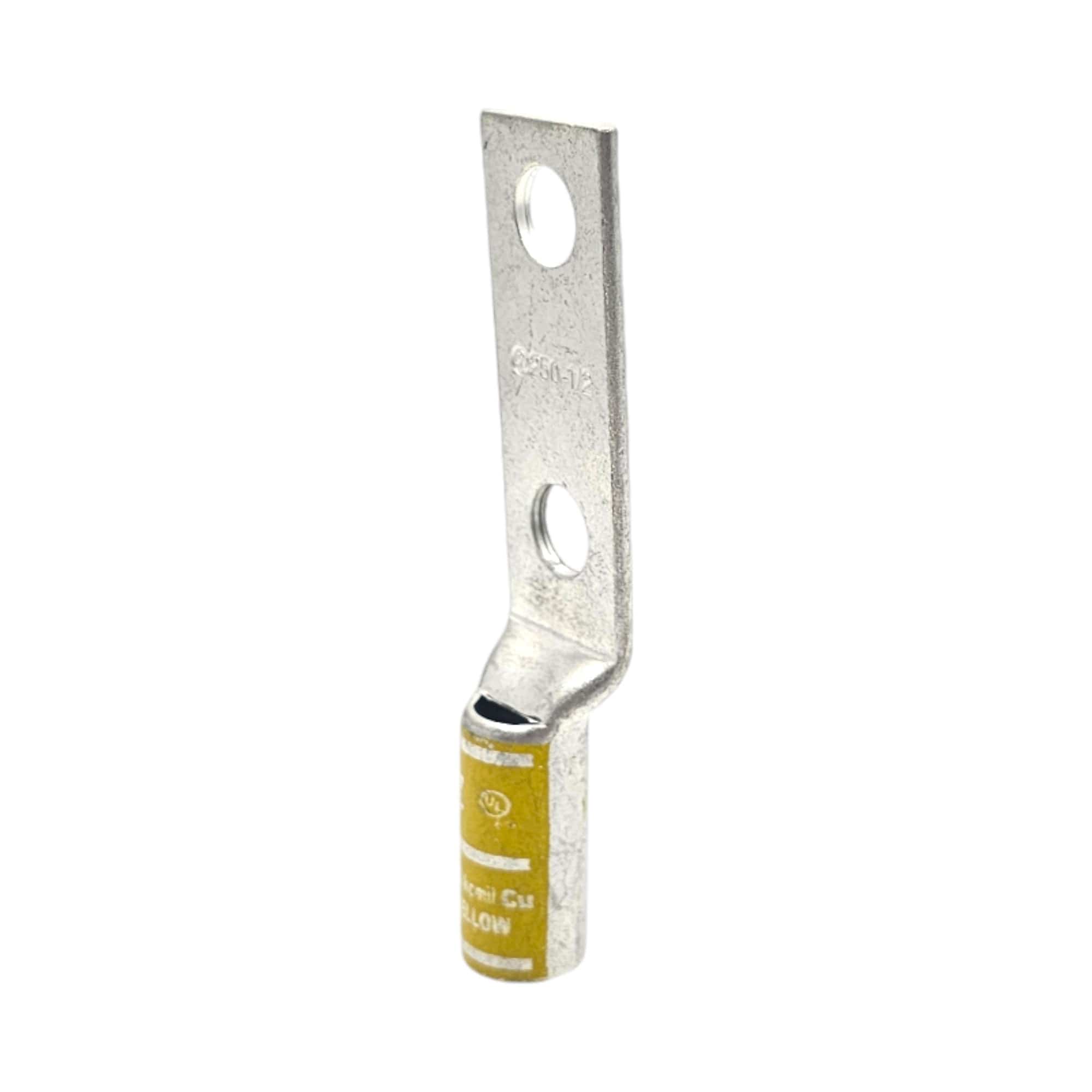

Copper Long Barrel Two Hole Compression Lugs 250 MCM 1/2-inch Bolt Size
Shipping calculated at checkout
SKU: 210-09973
1000 in stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here
The Conversions Tech Copper Long Barrel Two Hole Compression Lugs are designed for secure, high-performance connections in heavy-duty applications. Made from high-quality copper with a white color for easy identification, they are ideal for 250 MCM conductors and feature a 1/2-inch bolt size. The long barrel ensures a secure crimp, while the two-hole design provides flexibility for dual-terminal connections. These lugs deliver excellent conductivity, durability, and reliability, making them perfect for industrial, commercial, and power distribution systems, and minimizing the risk of overheating or failure.
Key Features
- High-Quality Copper Construction: Ensures excellent conductivity and provides secure, reliable electrical connections for 250 MCM conductors.
- 1/2-Inch Bolt Size: Features a 1/2-inch bolt size, offering a stable and secure attachment to terminals or busbars.
- Long Barrel Design: Enhances crimping, providing a strong, stable connection that resists vibration and loosening over time, ensuring long-lasting performance.
- Two-Hole Design: Provides flexibility for dual-terminal connections, offering versatility in various electrical applications.
- White Color Code: Facilitates easy identification, simplifying installation and improving organization during electrical work.
- Tin-Plated Finish: Offers superior corrosion resistance, ensuring durability and optimal conductivity in demanding environments.
- Ideal for Heavy-Duty Applications: Perfect for industrial, commercial, and power distribution systems, minimizing the risk of overheating or failure while ensuring reliable, high-performance connections.
Technical Specifications
| Material | Electro Tin Plated High Strength Seamless Copper |
|---|---|
| Color | White |
| Overall Length | 5.219 inches |
| Barrel Length | 1.688 inches |
| Conductor Size | 250 MCM |
| Stud Size | 1/2 inch |
| Pad Size | 3 inches Length x 1.088 inches Width x 0.157 inches Thickness |
| Pad Holes | 2 |
| Pad Hole Spacing | 1.75 inches |
| Conductor Material | Copper |
| Voltage Rating | 600 Volt to 35 Kilovolt |
| Die Index | I-62 |
| UL | Listed |
| Wire Strip Length | 1.75 inches |
| Temperature Rating | 90°C |
