Copper Long Length Compression Connector 2/0 AWG
Shipping calculated at checkout
SKU: 212-5020
838 in stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here

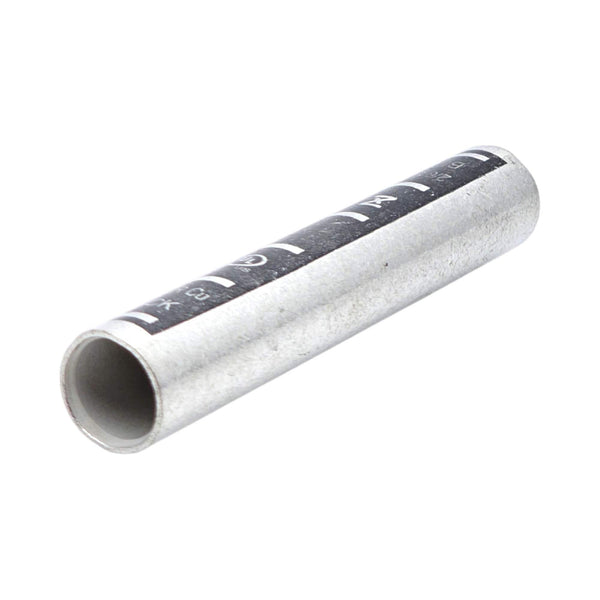

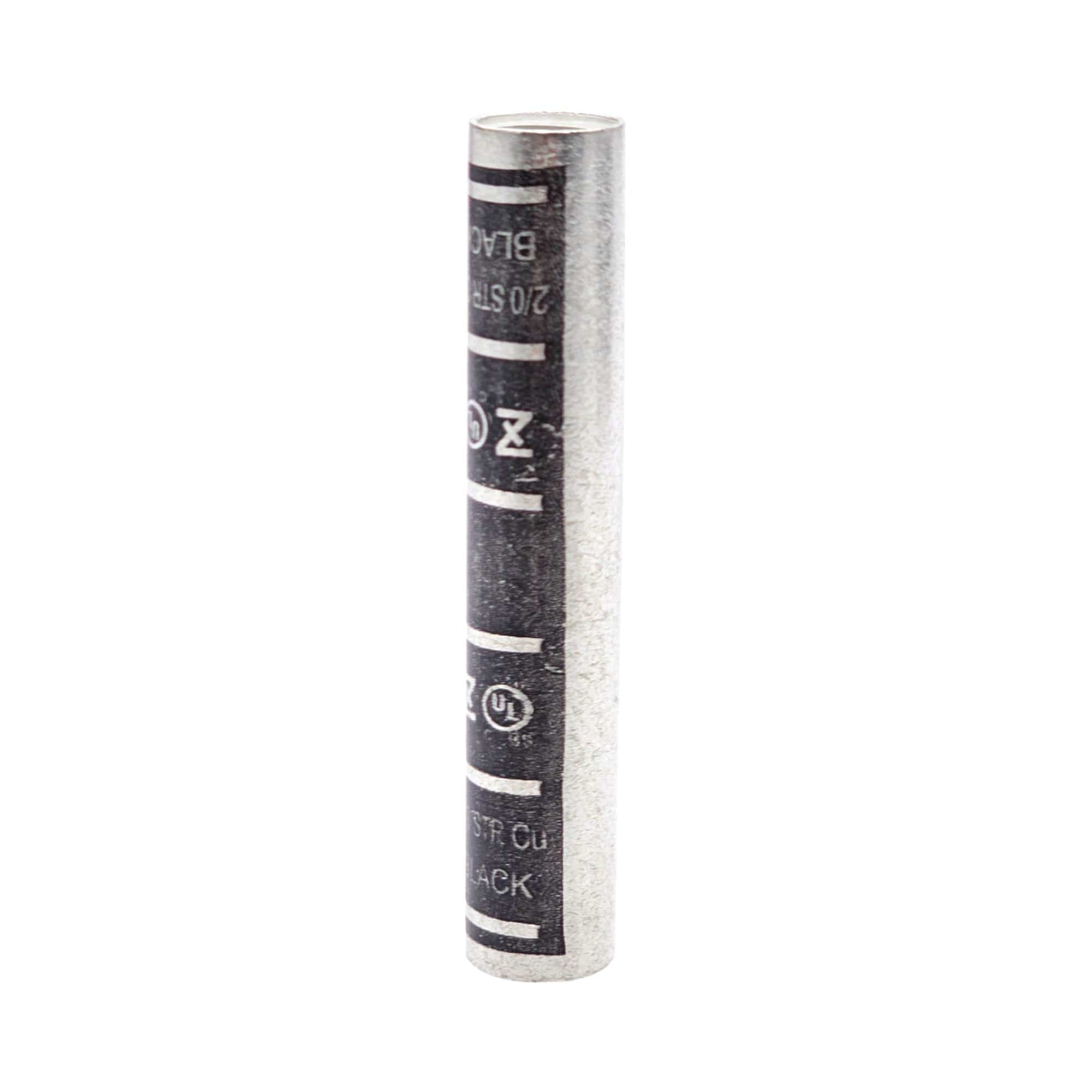

Copper Long-Length Compression Connector — 2/0 AWG (≈133 MCM), Tin-Plated
Heavy-duty copper compression connector (butt splice) designed for 2/0 AWG stranded copper. The long-barrel, electro-tin plated body delivers low resistance and excellent corrosion protection, while the beveled, chamfered entry speeds clean insertions and repeatable crimps. A black color code and die index 13 make tool selection clear in the field.
Key Features
- 2/0 AWG copper only: precision I.D. for code-stranded conductors (≈133 MCM).
- Long-barrel design: supports multi-crimp terminations for high pull-out strength and lower heat rise.
- Electro-tin plated copper: high conductivity with corrosion resistance for demanding environments.
- Installer-friendly: beveled & chamfered cable entry and clearly marked black color code.
- Temperature / voltage: 90 °C; 600 V up to 35 kV where proper spacing/insulation practices are followed.
Typical Applications
- Power distribution feeders, switchgear, and panelboard terminations
- Industrial equipment connections and MCCs
- Renewable projects (solar/ESS) and utility retrofit work
Technical Specifications
| Conductor Size | 2/0 AWG copper, stranded (≈133 MCM) |
|---|---|
| Connector Type | Inline butt splice, long-length barrel |
| Material / Finish | Electro-tin plated copper |
| Color Code | Black |
| Die Index | 13 |
| Overall Length | 3.21 in |
| Barrel Length | 1.50 in |
| Wire Strip Length | 1-9/16 in |
| Cable Entry | Beveled, chamfered |
| Temperature Rating | 90 °C |
| Voltage | 600 V to 35 kV (with proper installation) |
| Pad / Holes | N/A (splice); no pad holes |
| SKU | 212-5020 |
| Brand | Conversions Tech |
Install Tips
- Strip to the specified depth and fully seat the conductor before crimping.
- Follow your crimp tool’s die chart for index 13 and complete the recommended number of compressions from center outward.
- Finish with adhesive-lined heat-shrink or approved insulating wrap to match voltage and environment.
What’s in the Box
- (1) Copper long-length compression connector — 2/0 AWG
